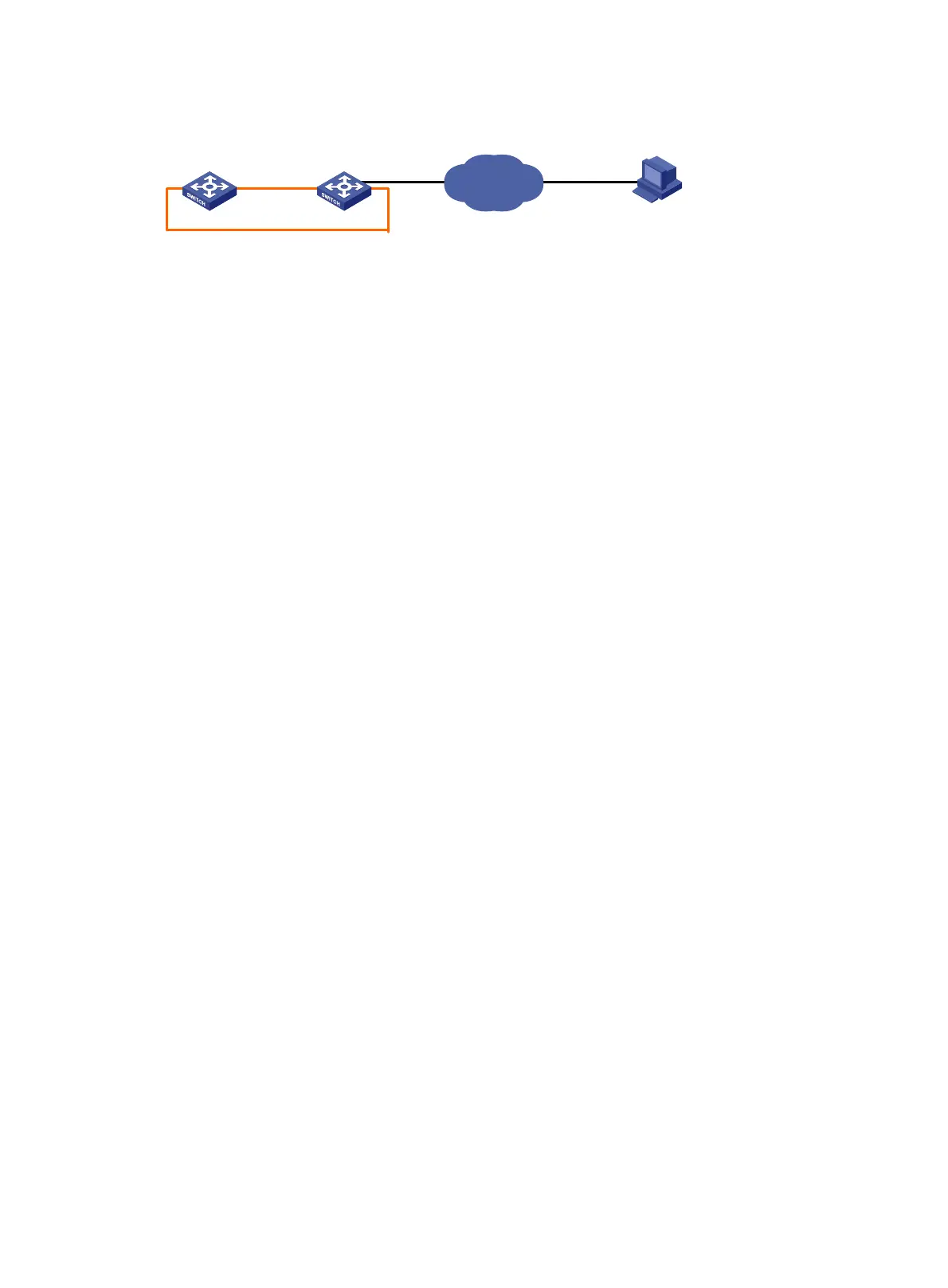

Figure 39 Network diagram
Configuration procedure
1. Configure the TFTP server:
# Enable the TFTP server function. (Details not shown.)
# Save the patch file patch_xxx.bin to the directory of TFTP server. (Details not shown.)
2. Configure the IRF fabric:
# Before upgrading the software, use the save command to save the current system configuration.
(Details not shown.)
# Examine the flash on the switch for space insufficiency. If the space is not sufficient for the patch
file, delete unused files to release enough space. (Details not shown.)
# Load the patch file patch_xxx.bin from the TFTP server to the root directory of the flash on the
master.
<Device> tftp 2.2.2.2 get patch_xxx.bin
# Load the patch file patch_xxx.bin from the TFTP server to the root directory of the flash on the
subordinate switch.
<Device> tftp 2.2.2.2 get patch_xxx.bin slot2#flash:/patch_xxx.bin
# Install patches.
<Device> system-view
[Device] patch install flash:
Patches will be installed. Continue? [Y/N]:y
Do you want to continue running patches after reboot? [Y/N]:y
Installing patches........
Installation completed, and patches will continue to run after reboot.
TFTP server
2.2.2.2/24
Internet
Note: The orange line indicates the IRF link.
1.1.1.1/24
IRF
Master
(Member_ID=1)
Subordinate
(Member_ID=2)
