9. Remove the blank strip from the position corresponding to the slot
where you installed the interface card, then insert the LED label strip
provided with the card as far as it will go.
10. Bend the end of the label strip toward the back of the router, creating
a 90° fold.
11. Close the router door.
12. To the left of each slot is a label on which you can write the name of
the department or site served by the interface card installed there.
(Additional labels are supplied in the router’s accessories kit and also
with each interface card.) To replace the label, slide it out from the
right. Position the new label with its shiny side facing the router, and
slide it in from the right.
Note If you have installed a new 4-Port Ethernet/802.3 Interface card, each of
its four ports contains a preinstalled internal ThinLAN transceiver. You
can replace any of these transceivers with another transceiver, such as
for twisted-pair or fiber-optic cabling, or with an AUI port module,
which lets you connect external transceivers such as for ThickLAN
cabling. Instructions for replacing the transceivers in the 4-Port
Ethernet/802.3 Interface card are provided in the 4-Port Ethernet/802.3
Interface Installation Guide.
Swap
1
2
HP J2608A
ThinLAN
HP J2608A
Swap
1
2
Swap
1
2
Swap
1
Self-test
12
Net
Fail
Rx
Ins
Card
Reset Clear
Remove and insert label
from this edge

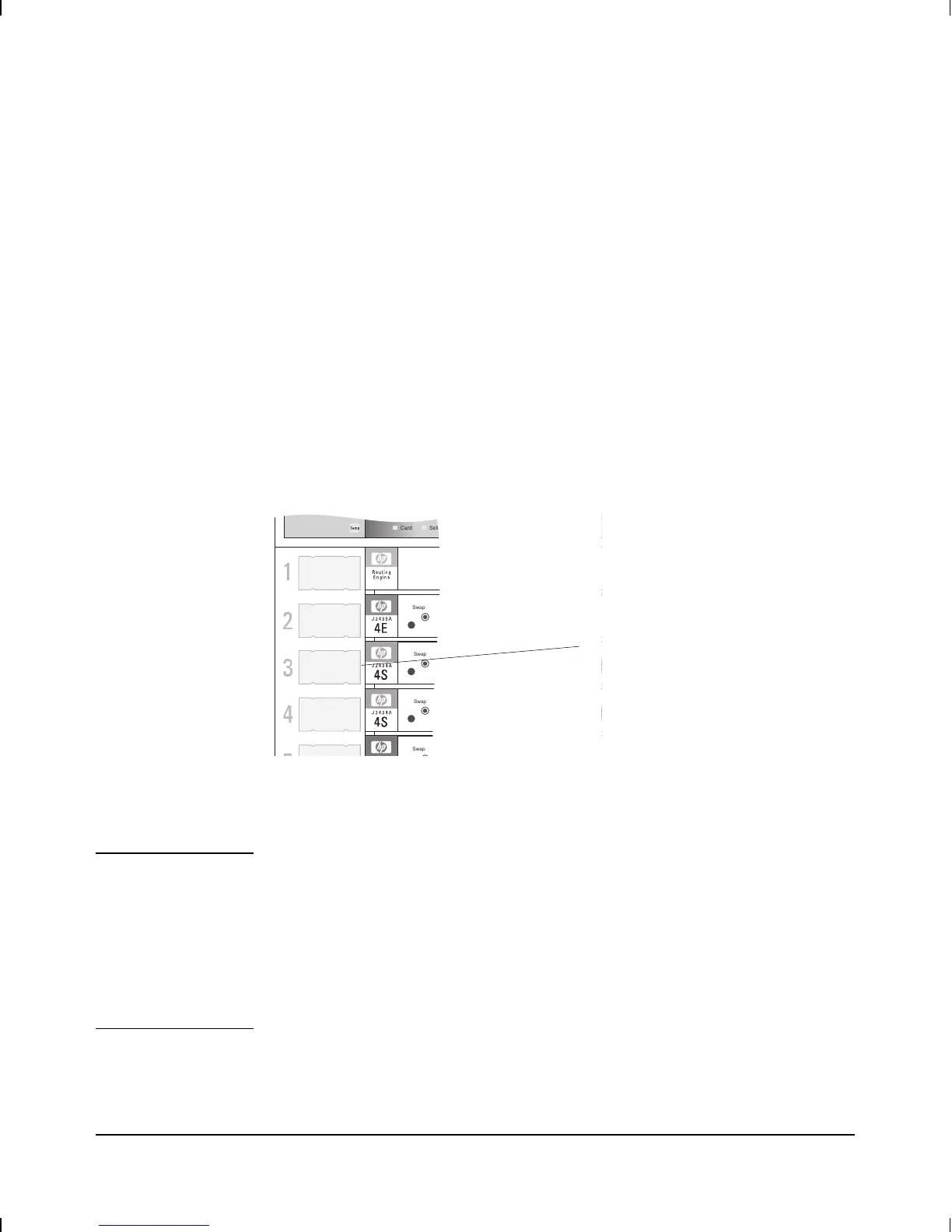

Figure 1-9. Interface Card Label Location
Installation
Install interface card(s).
1-12
