HP 650C User Manual

10-7Parts and Diagrams

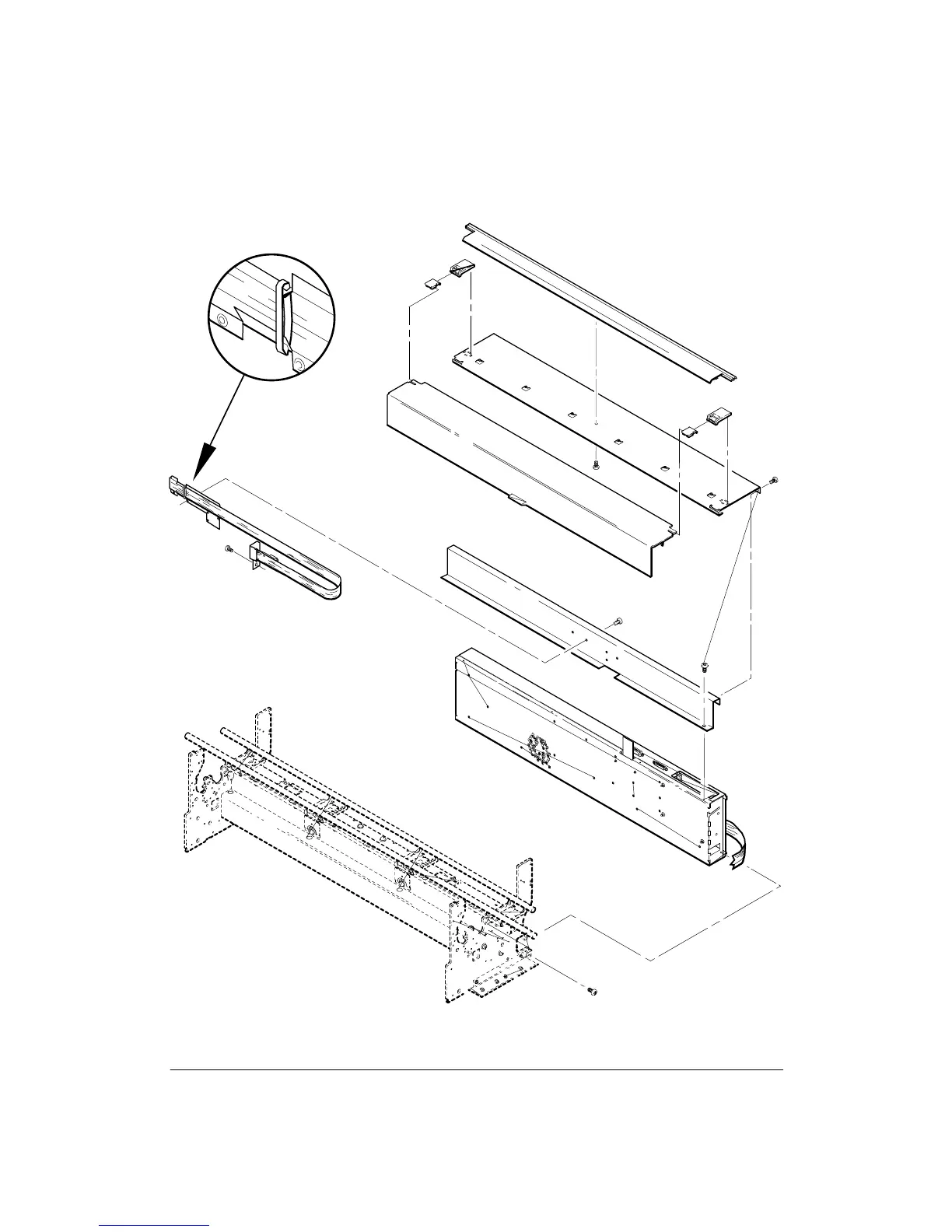

Illustrated Parts Breakdown
1
2
3
4
5
6
3
4
7
10
9
8
11
7
12
To Pen Carriage
To Main PCA
Window and Back Cover Assemblies,
Electronics Enclosure
13
C2858A See Page 10-9.
C2859A See Page 10-11.
(C)C2858-2-1
