HP 650C - Page 175

10-19Parts and Diagrams

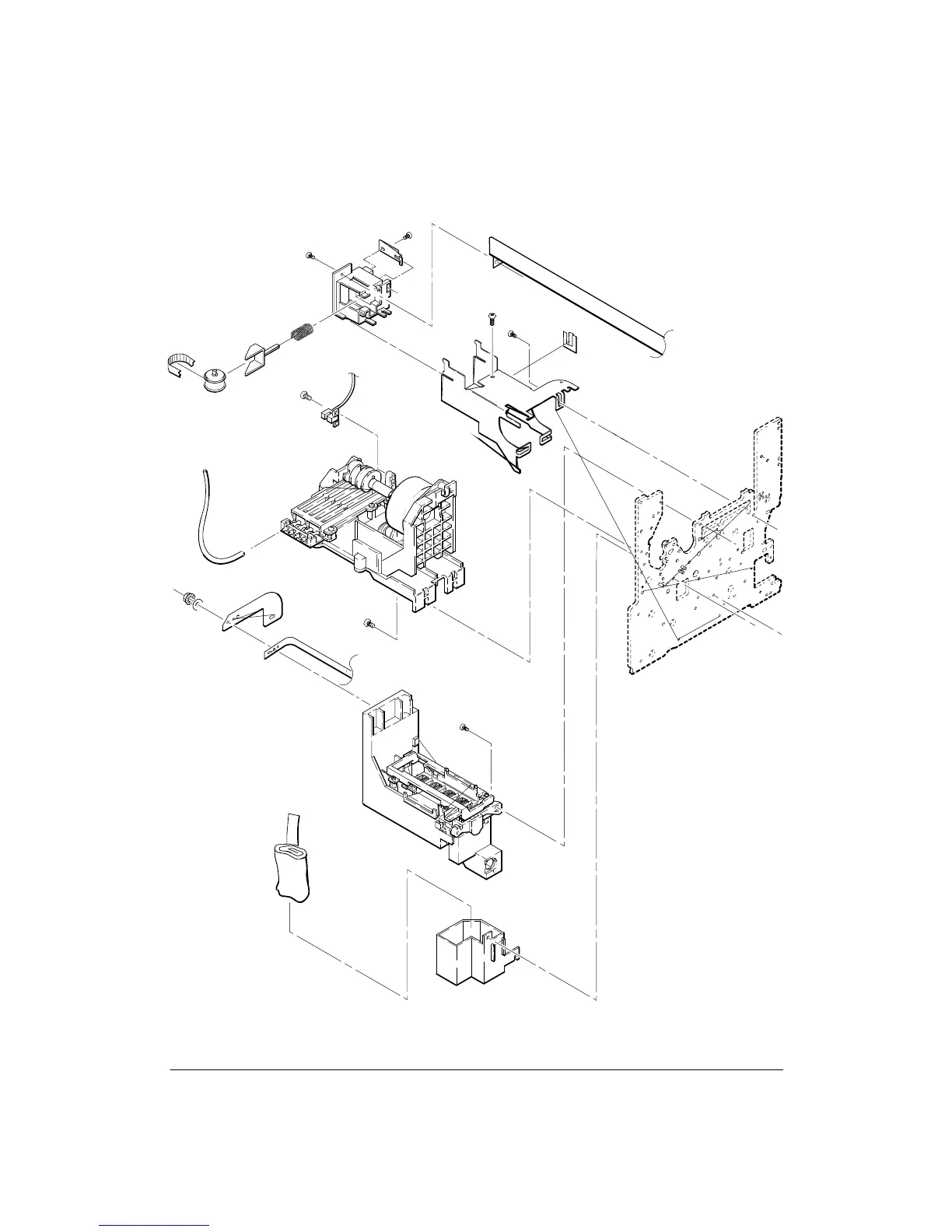

Illustrated Parts Breakdown
Carriage Axis Drive (Left End),
1
2
3
4
5
7
6
8
6
9
10
11
Service Station
See Page 10-21.
(C)C2858-8-1
12
13
14
15
16
17
6
18
19
20
9
9
21
