Operation Model
83522A

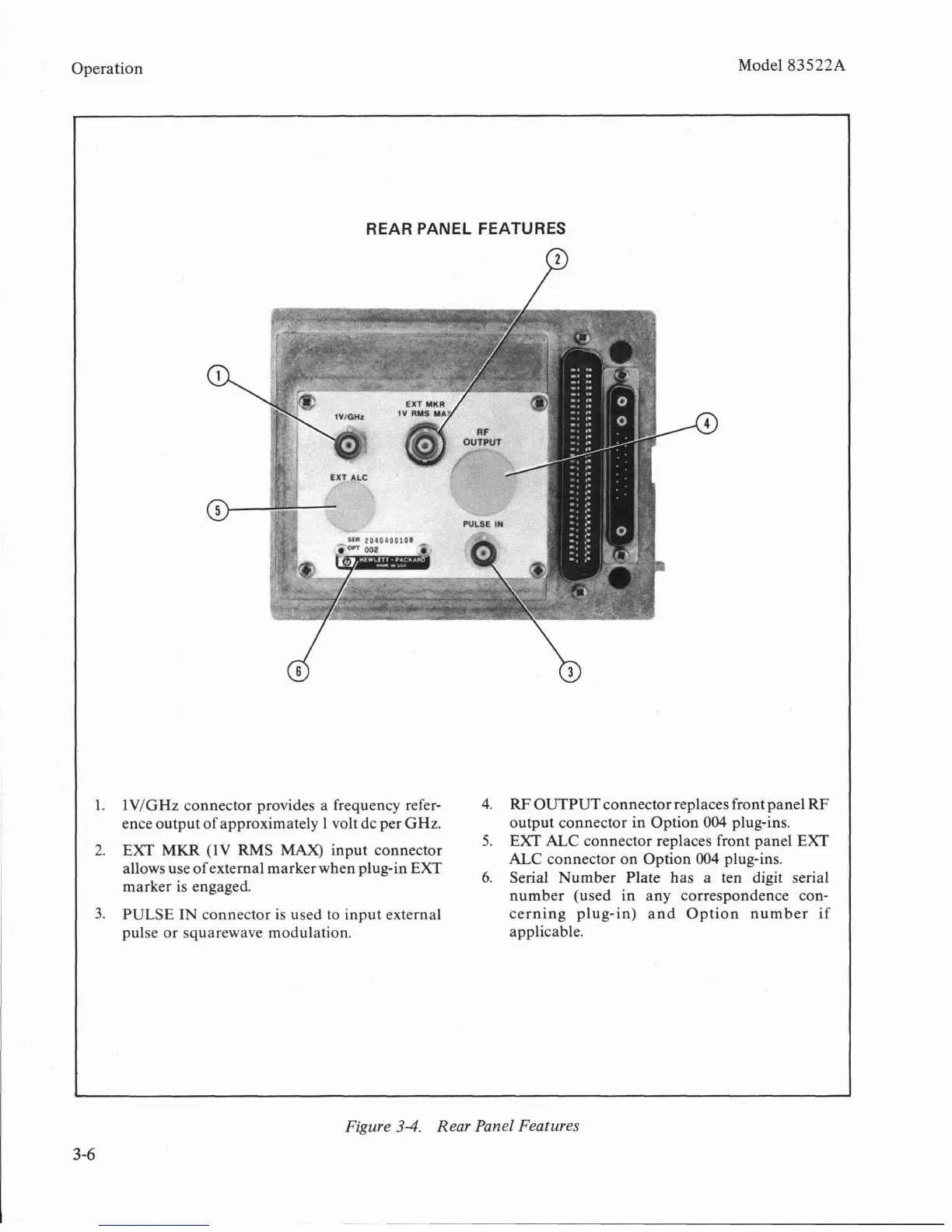

REAR PANEL FEATURES
1. lV/GHz connector provides a frequency refer-
4.
RF
OUTPUT connector replaces front panel
RF
ence output of approximately
1
volt dc per GHz.
output connector in Option
004
plug-ins.
2.
EXT
MKR
(1V
RMS MAX)
input connector
5.
EXT
ALC
connector replaces front panel EXT
ALC
connector on Option
004
plug-ins.
allows use of external marker when plug-in EXT
marker is engaged.
6.
Serial Number Plate has a ten digit serial
number (used in any correspondence con-
3.
PULSE
IN connector is used to input external cerning plug-in) and Option number if
pulse or squarewave modulation. applicable.
Figure
3-4.
Rear Panel Features
