ES User’s Guide 4-15
Using Instrument Functions
Using Markers

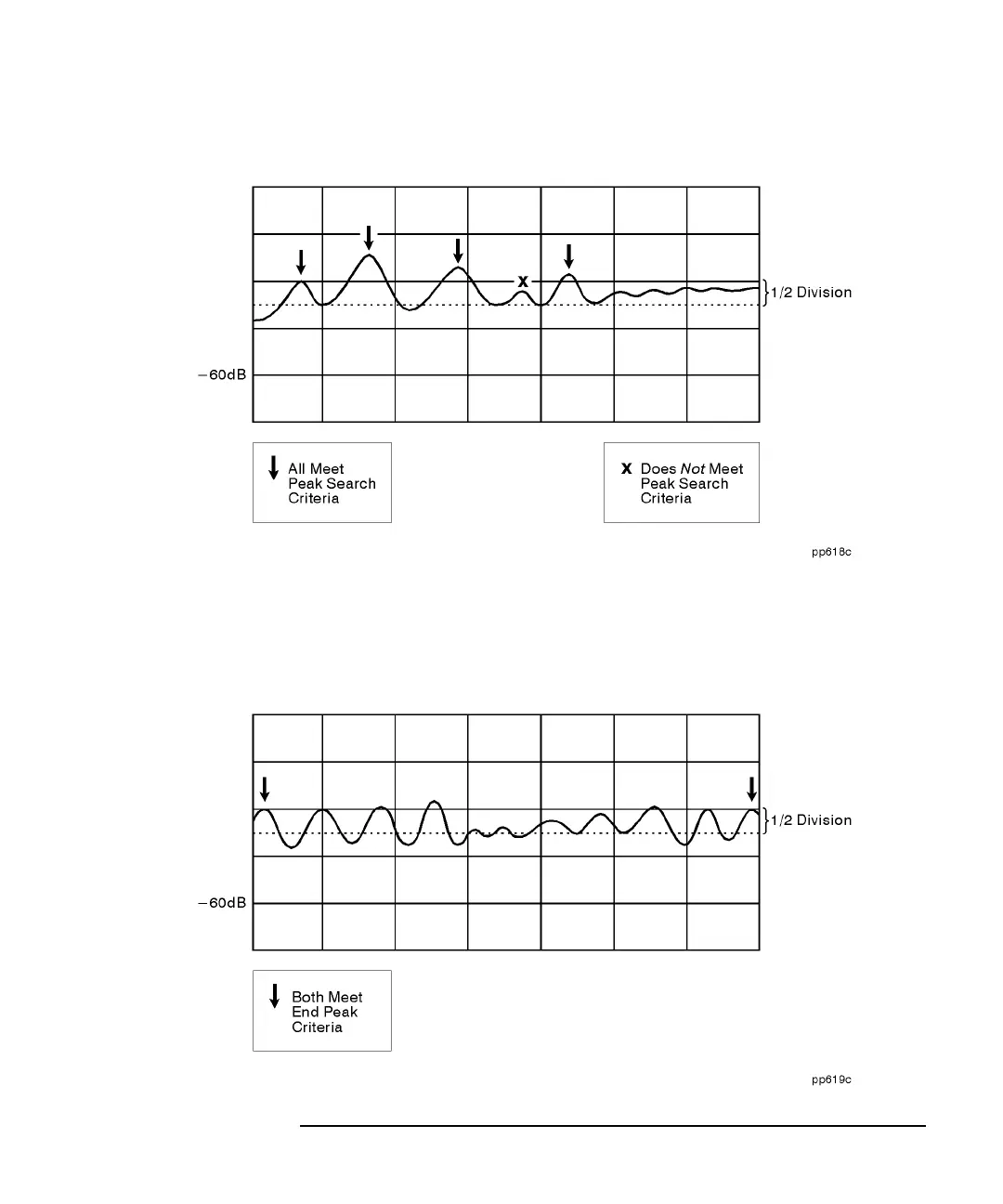

Figure 4-8 Peak and Minimum Search Criteria
When the maximum or minimum point is at or near either edge of the
display, the excursion requirement is satisfied by a half of a division
excursion on just one side of the maximum (or minimum). See
Figure 4-9.
Figure 4-9 Peak and Minimum Search Criteria at Display Endpoints
