ES User’s Guide 7-11
Front/Rear Panel
Connectors
RS-232 The RS-232 connector is a rear panel connector used with serial
peripherals such as printers and plotters. The pin-out is shown in
Figure 7-5. The connector is a male DB-9. See “Configure the Hardcopy
Port” on page 4-71 for information on using this port with a printer or
plotter.

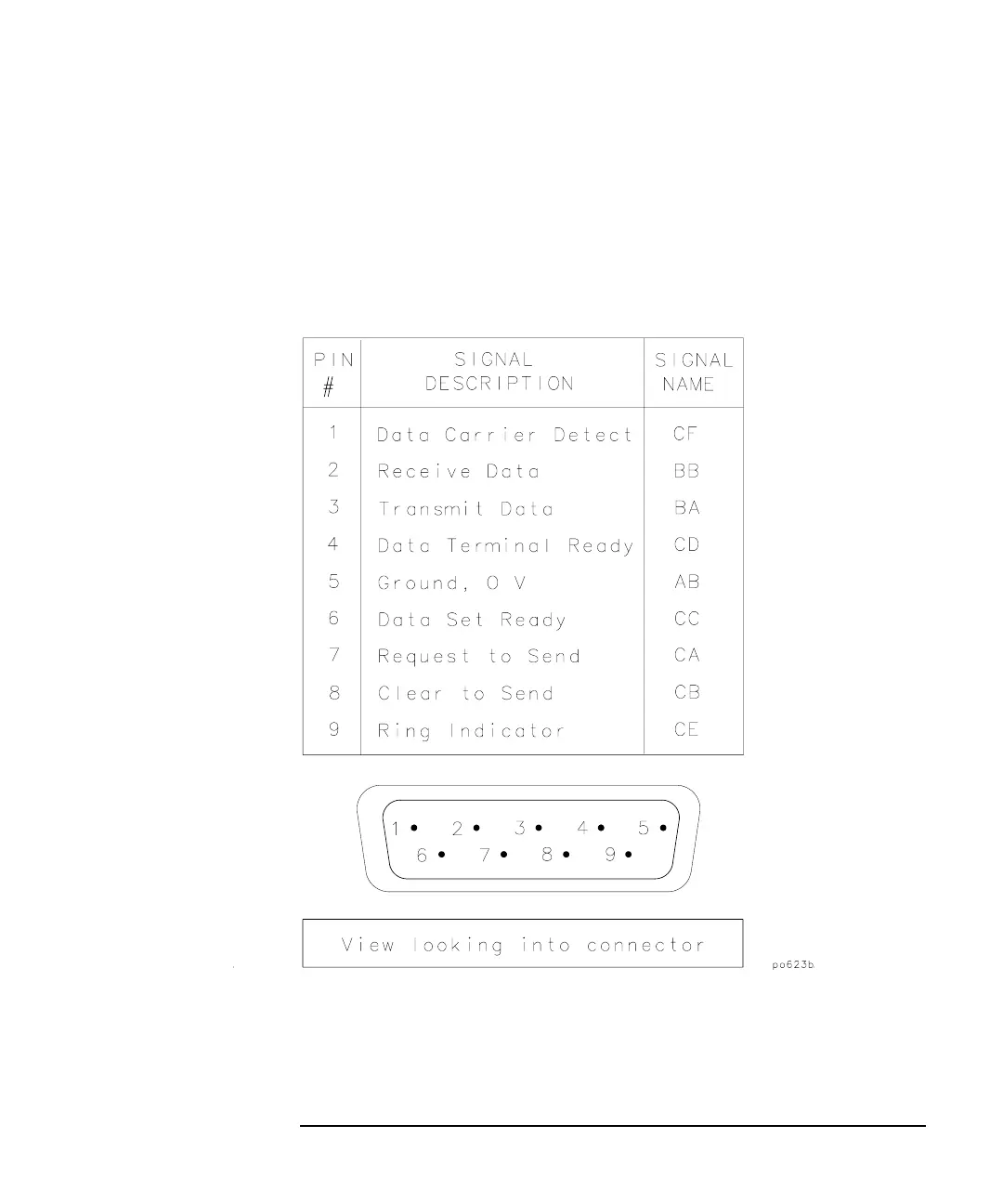

Figure 7-5 RS-232 Connector Pin-out
