Making Measurements
Measuring S-Parameters using a Two-Port Calibration
4. Press . If
you want to correct for crosstalk errors, toggle the
key ON (for more information about isolation,
refer to the definition of a user two-port calibration in Chapter 6).
5. When the instrument prompts you to connect a through cable,
connect the port 2 test cable to adapter A on port 1 as shown in
Figure 3-8. Press .

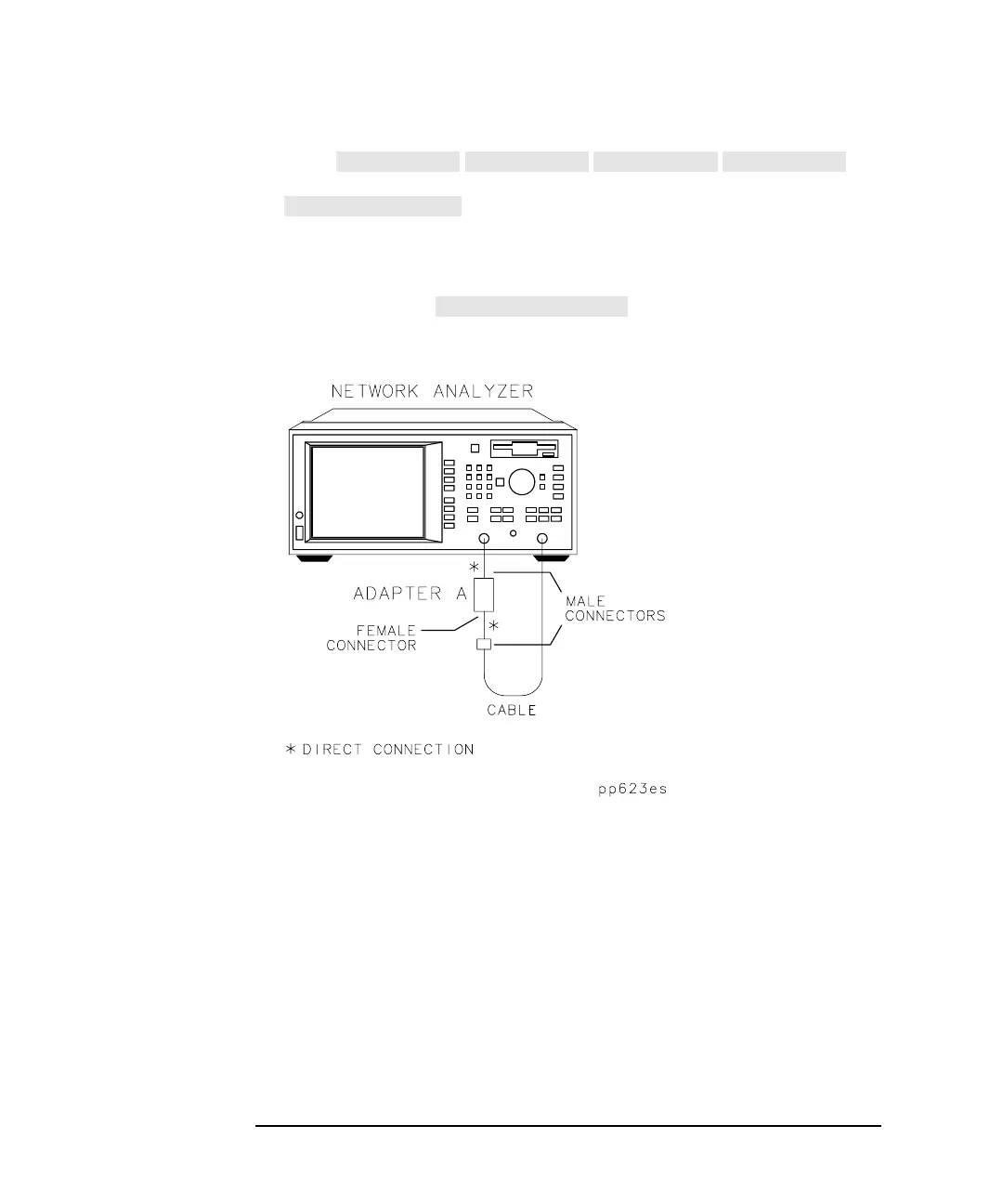

Figure 3-8 Through-Cable Connection
