ES User’
s Guide
3-55
Making Measurements
Measuring S11 Reflection P
or
t 1 using a One-Port Calibration

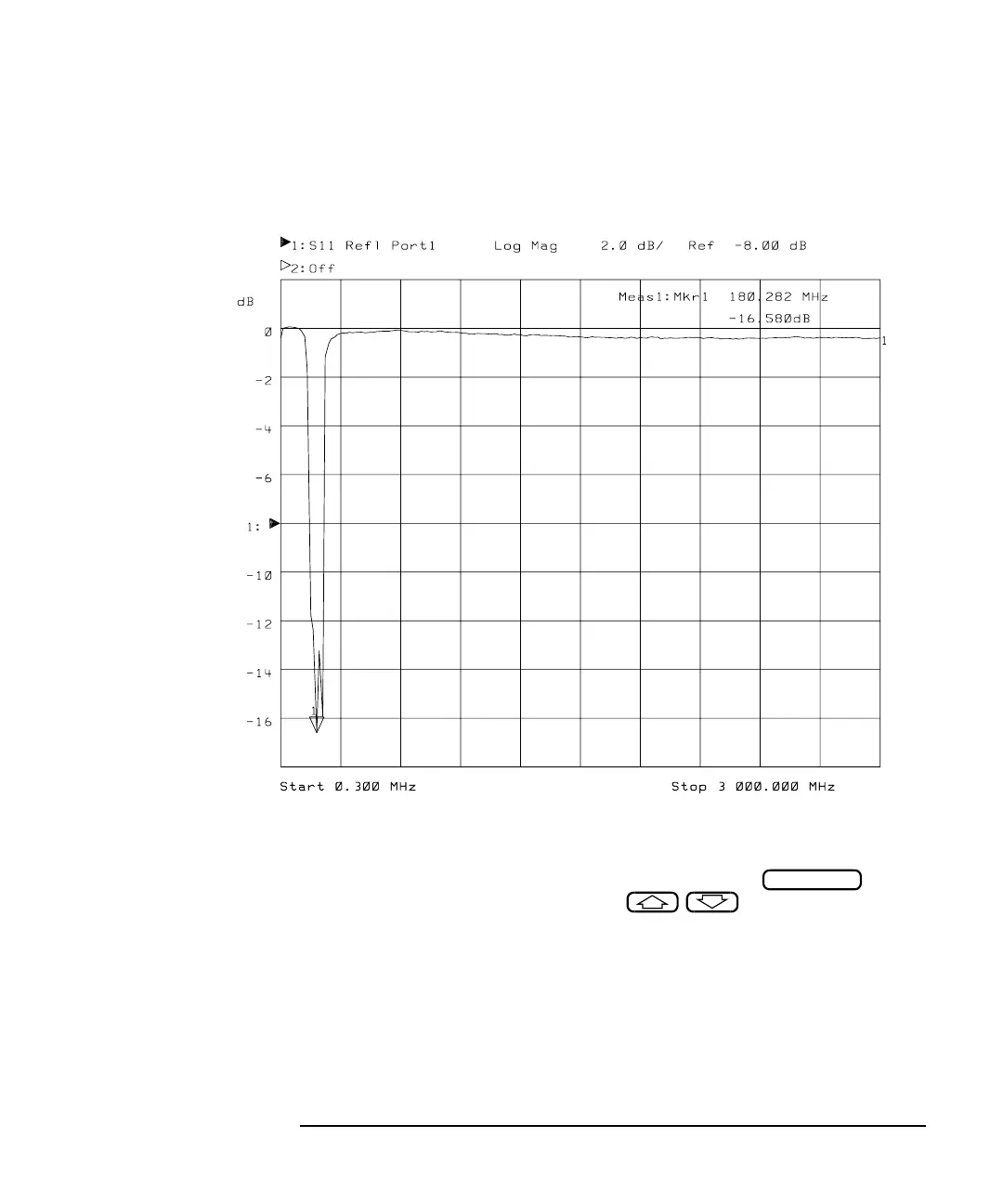

Figure 3-21
Example of an S
11
Measurement Display
3.
T
o quickly determine the filter's return loss
, press
and
then use the front panel knob, the
keys
, or the numeric
keypad to read the value of return loss at the desired frequency
.
4.
See
“Using Markers” on page
4-3
in for detailed information on using
markers to interpret measurements.
MARKER
106
108
