3-14 ES User’s Guide
Making Measurements
Using the BEGIN Key to Make Measurements
Using the BEGIN Key to Make
Measurements

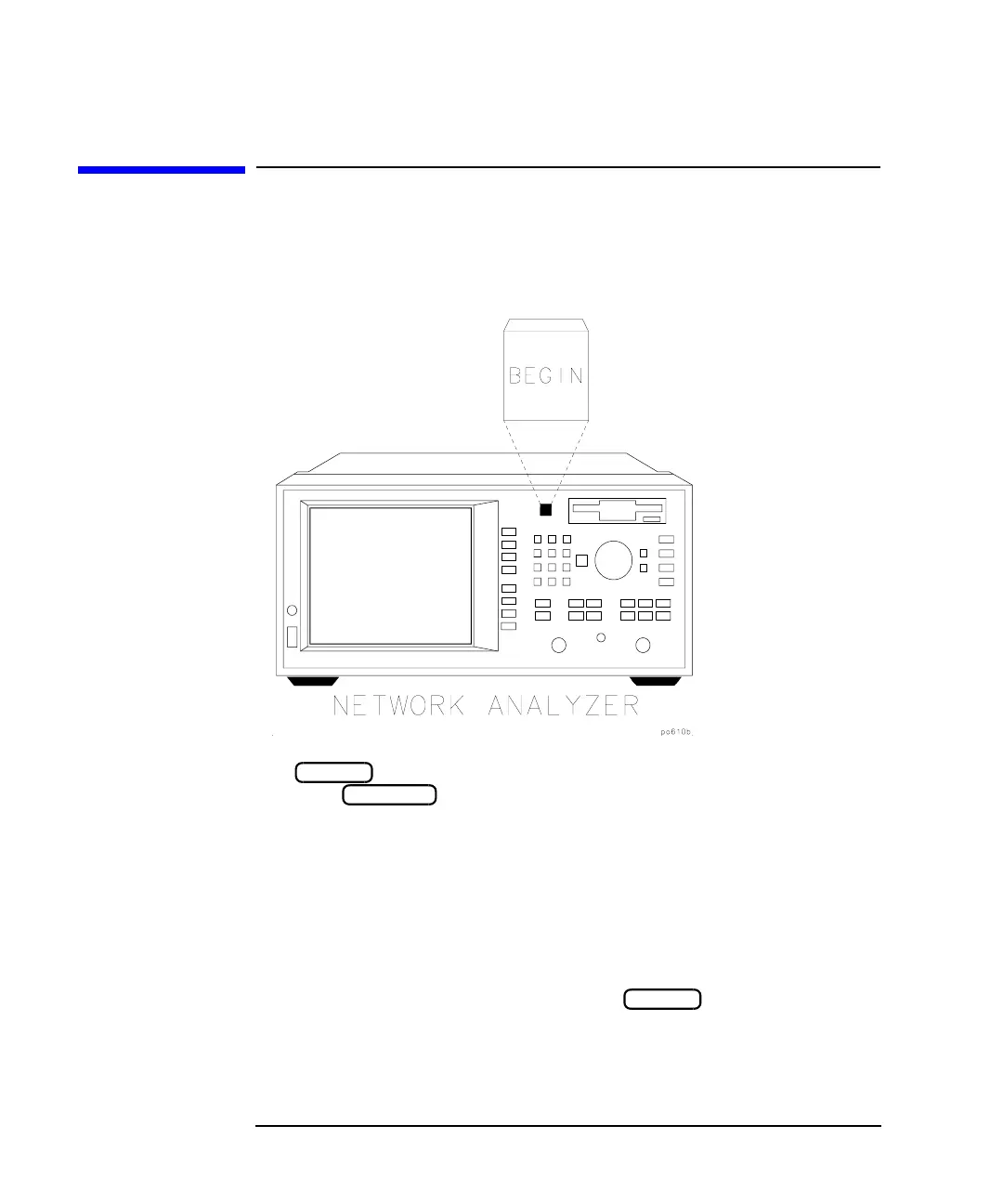

Figure 3-5 The BEGIN Key
The key allows you to quickly and easily configure the analyzer
(from the condition) to measure the following:
• amplifiers
• filters
• broadband passive devices (a cable, for example)
• mixers
• cable fault location and structural return loss (Option 100 only)
Configuring basic measurements from the key helps you
ensure correct instrument setup. The analyzer guides you through the
initial steps and configures itself for the device type you select.
BEGIN
PRESET
BEGIN
