ES User’s Guide 3-47
Making Measurements
Measuring S21 Forward Transmission using an Enhanced Response Calibration

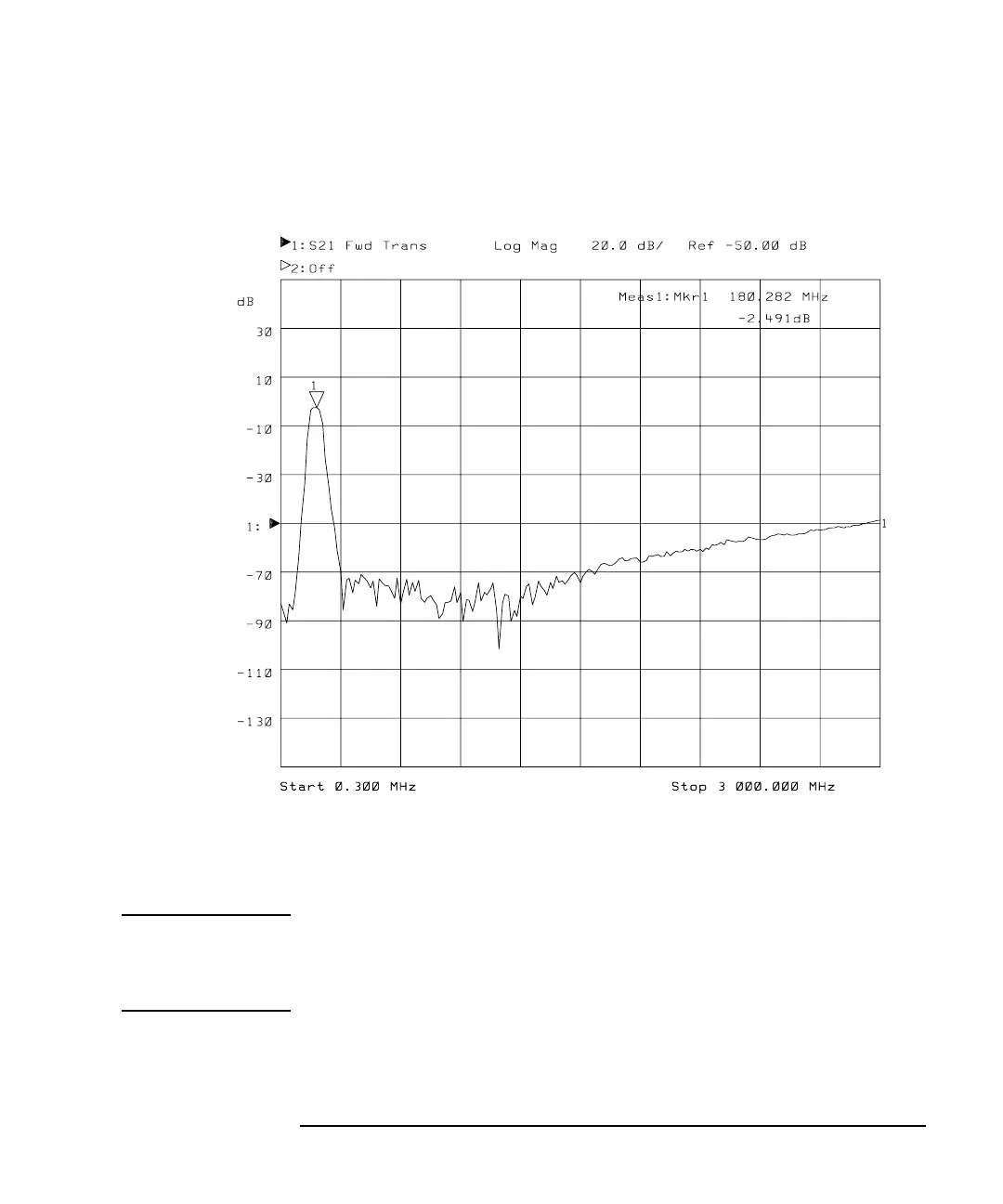

Figure 3-17 Example of an S
21
Measurement Display
5. See “Using Markers” on page 4-3 in for more detailed information on
using markers to interpret measurements.
NOTE For the measurement to be valid, input signals must fall within the
dynamic range of the analyzer. See Chapter 5, “Optimizing
Measurements,” for techniques to increase the dynamic range of the
analyzer.
