Making Measurements
Measuring S-Parameters using a Two-Port Calibration
NOTE Changing sweep frequencies (and other source parameters) may affect
your calibration. See Chapter 6 for more information.
Connect the DUT.
28.Measure the test device using the setup shown in Figure 3-15.

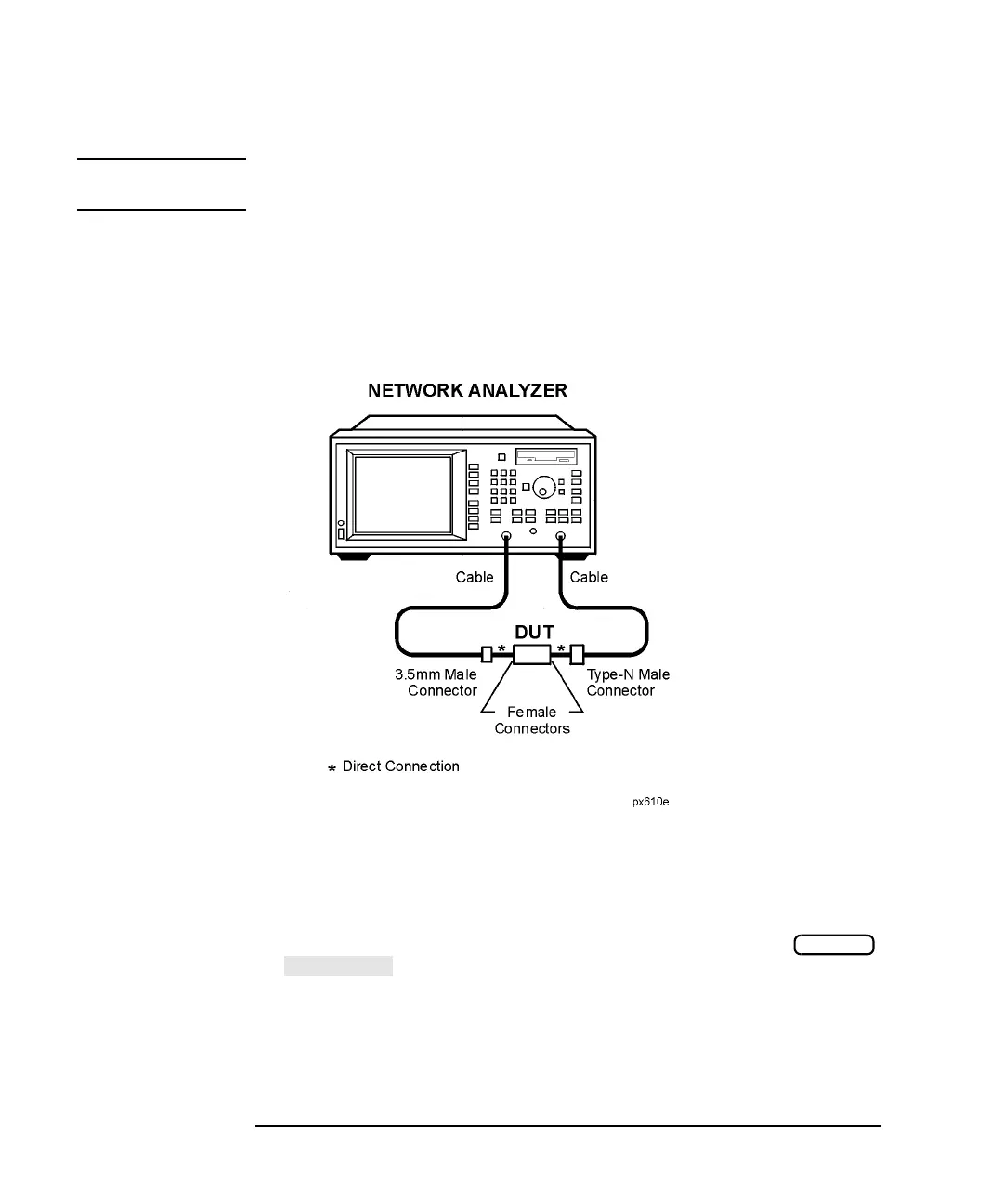

Figure 3-15 Equipment Setup for an S-Parameter Measurement of a
Type-N(f)-to-3.5 mm(f) Two-Port Noninsertable Device
View and Interpret the S-Parameter
Measurement Results
1. To view the entire measurement trace on the display, press
.
2. To interpret the measurement, refer to other S-parameter
measurement examples later in this chapter.
