HP 8712ET User Manual

2-12 ES User’s Guide
Getting Started
Performing the Operator's Check

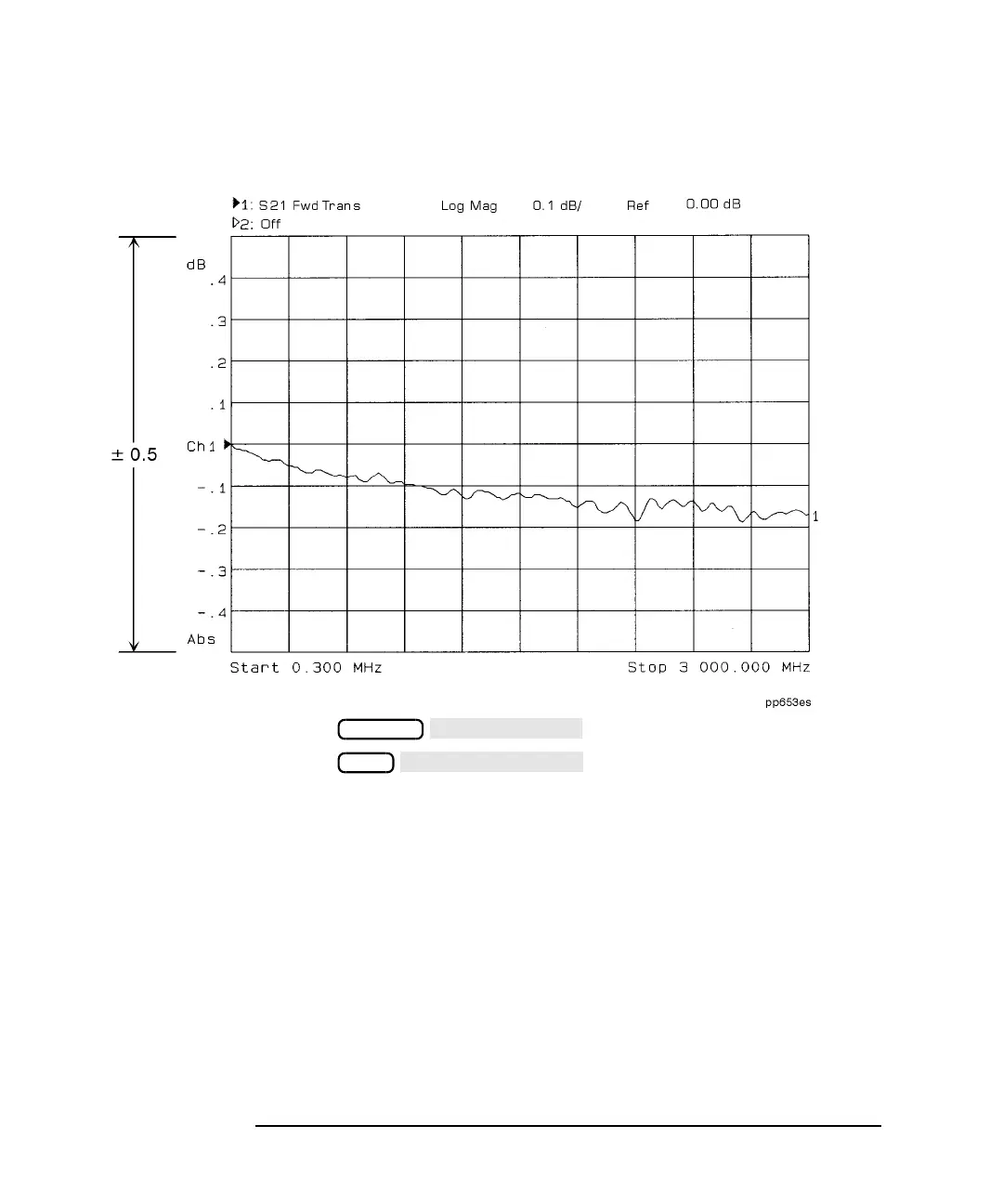

Figure 2-7 Verify S
21
Transmission Measurement
7. Press .
8. Press .
9. Verify that the data trace falls within ±0.5 dB of 0 dB. See Figure 2-7
for a typical HP 8714ES result. (Although this figure is from an S
21
measurement, the results of your S
12
measurement should look
similar.) The HP 8712ES should look similar, but will end at
1300 MHz.
MEAS 1
S12 Rev Trans
CAL
Default Response
