3-8 ES User’s Guide
Making Measurements
Measuring Devices with Your Network Analyzer
1. When calibration standards are being measured, a “Cx” is displayed
on the annotation line, indicating non-corrected, non-simultaneous
measurements are being made.

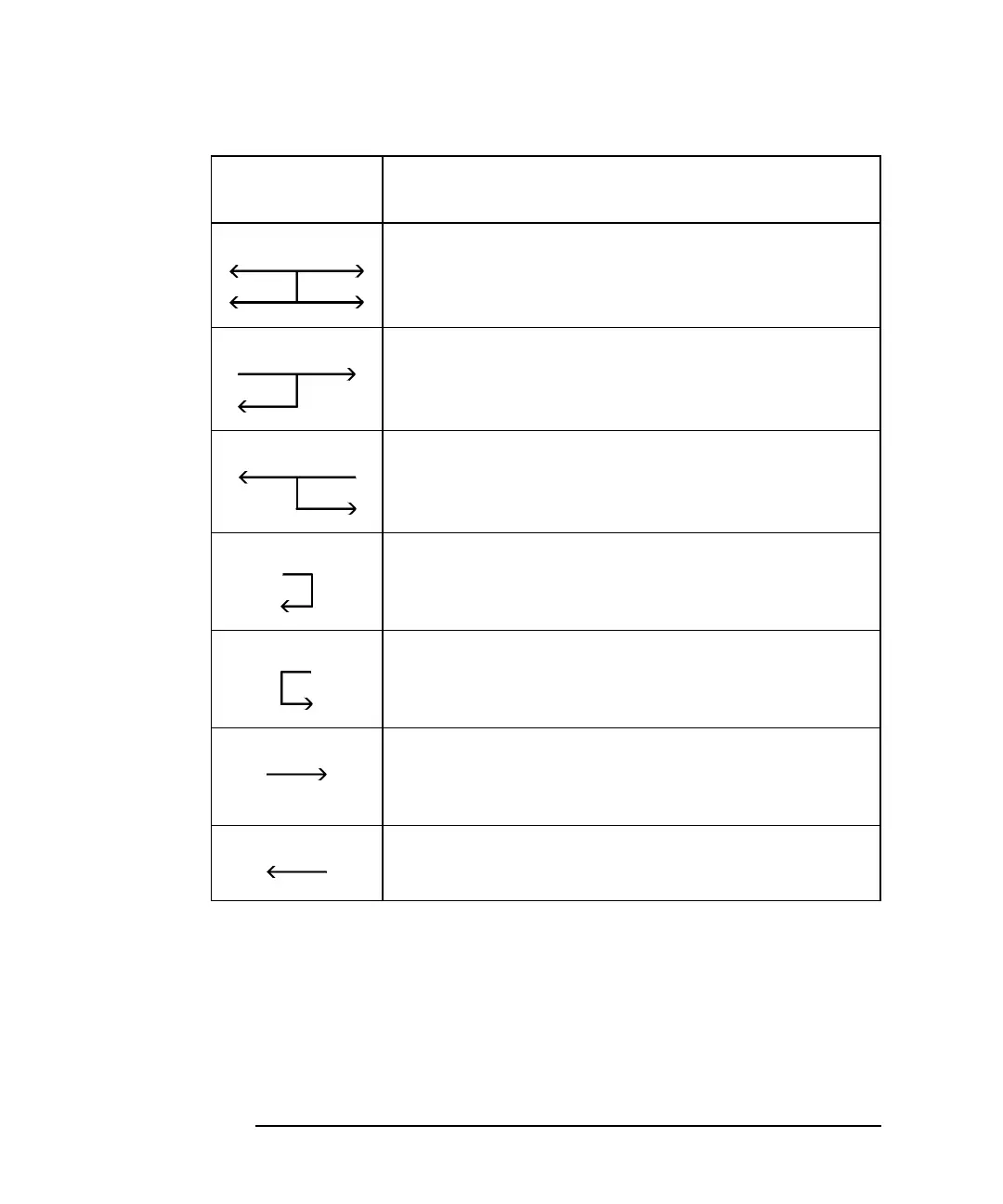

Measurement
Display Icon
Icon Appears on the Analyzer’s Display
When Measuring:
Any of the four S-parameters (with two-port
calibration) when sweep time is less than 3.0
seconds.
Either of the two forward S-parameters (with
two-port calibration) when sweep time is more
than 3.0 seconds.
Either of the two reverse S-parameters (with
two-port calibration) when sweep time is more
than 3.0 seconds.
S
11
(not with two-port calibration) or calibration
standards.
1
S
22
(not with two-port calibration) or calibration
standards.
1
S
21
or fault location/SRL (not with two-port
calibration), power, conversion loss, or
calibration standards.
1
S
12
or fault location/SRL (not with two-port
calibration), or calibration standards.
1
