A-Class Server Installation
Cabinet-Mounted A-Class Server System Unpack and Install
Chapter 2
37

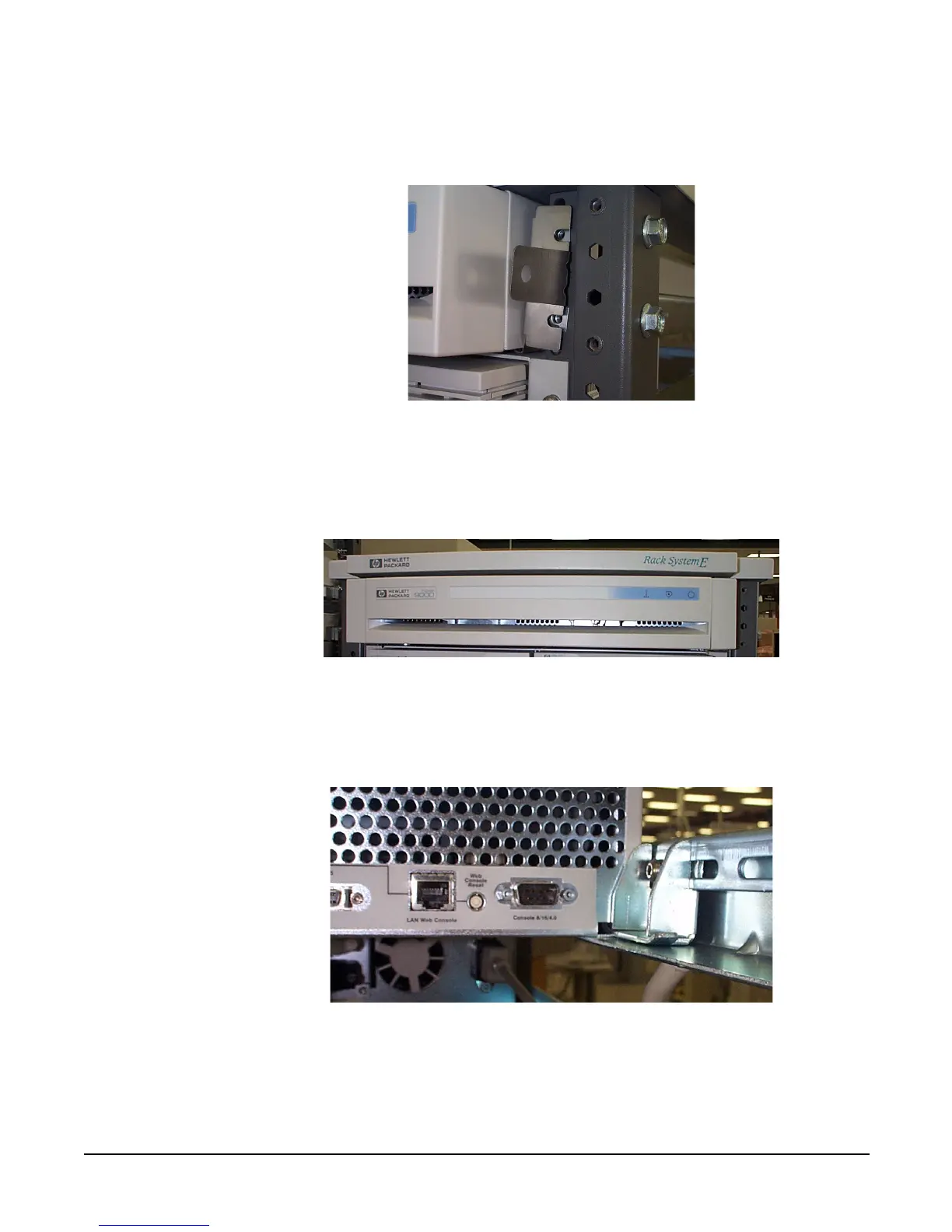

• Hold the tabs upright and slide the server all the way into cabinet until the tabs butt
up against the columns on each side.
Step 4. Fasten the both front anchor brackets securely to both front cabinet columns with the
prepositioned sheet metal nuts.
Step 5. Attach a plastic end cap to each anchor bracket.
Step 6. At the rear of the cabinet, position the rear rail mounting clamps on each rail at the back
of the server. Tilt each clamp forward slightly and slide the angled tab completely into
the available slot in the server so that each clamp sits flat on the rail.
Step 7. Fasten each rear mounting clamp to its rail with the screws provided.
When you are ready to connect external devices, refer to External Connections for
further information.
