Hardware Options and Upgrades
Startup and Reference Guide—Part 2 8–13
To insert a memory module:
a. Align the keyed (notched) edge of the module with the
keyed area in the memory slot 1.
b. With the module at a 45-degree angle from the surface
of the memory compartment, press the module into the
memory slot until it is seated 2.
c. Push the module downward until the retention clips snap
into place 3.

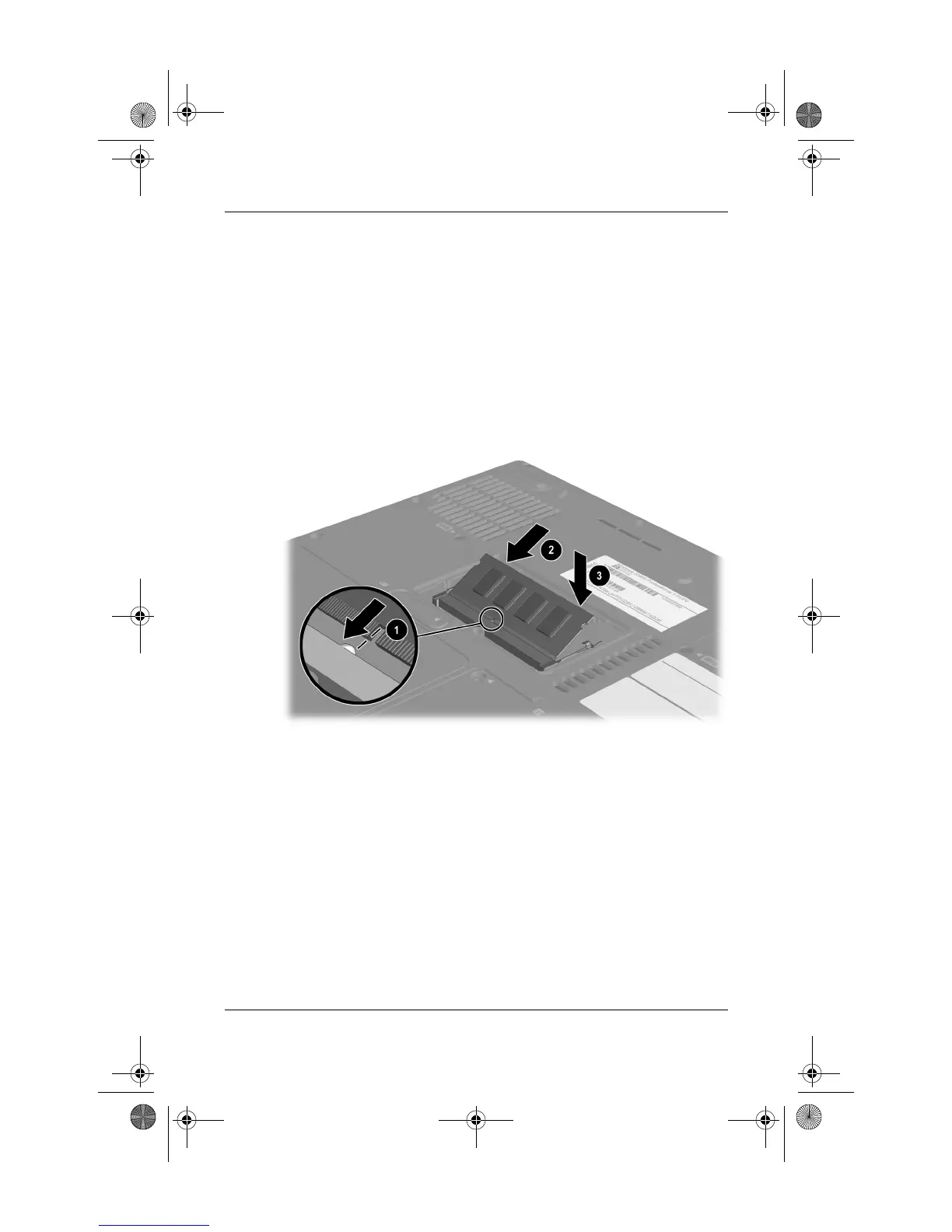

Inserting a memory module
