Rear Panel
Connectors and Jacks

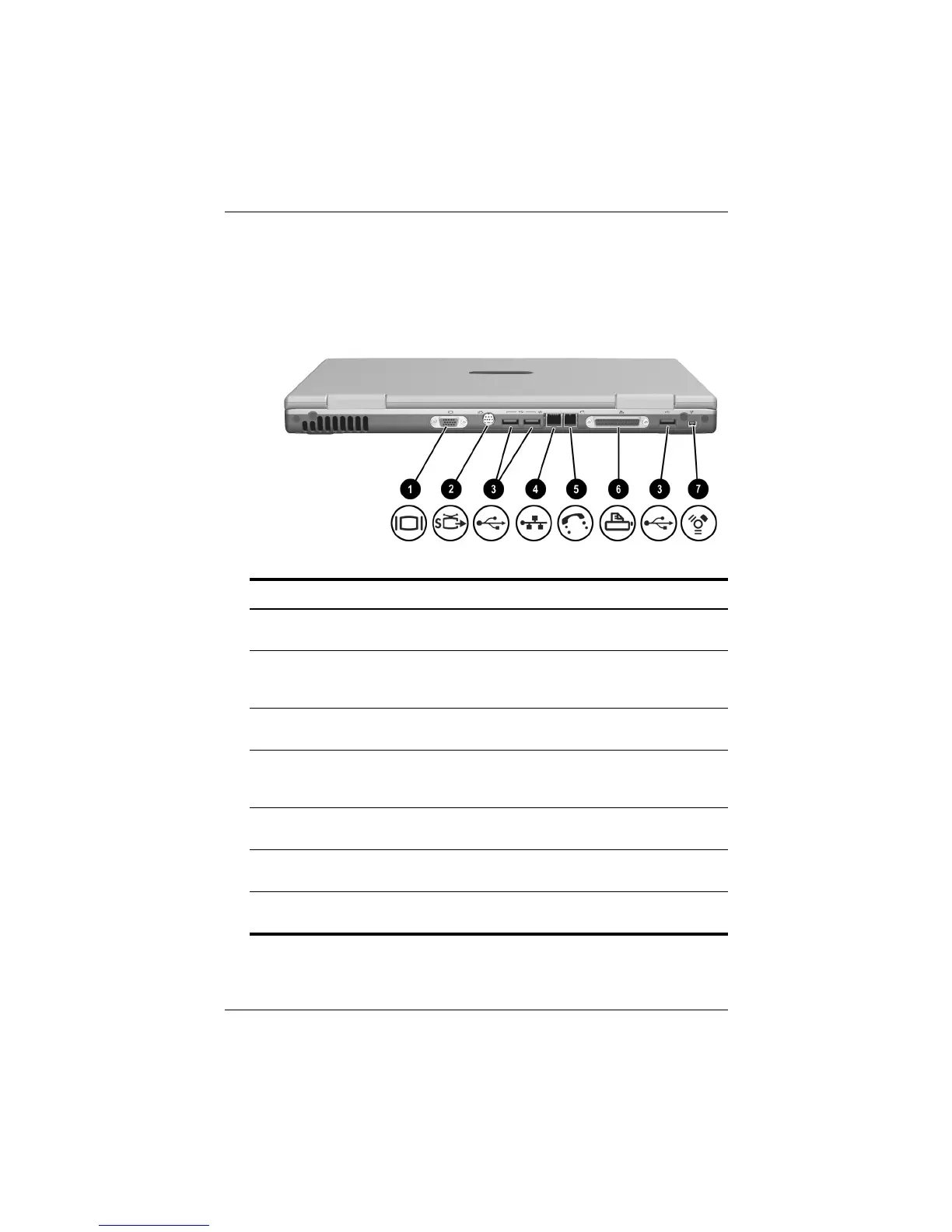

Rear Panel: Connectors and Jacks
1
External monitor connector Connects an optional VGA external
monitor or projector.
2
S-Video jack Connects an optional S-Video device,
such as a television, VCR, camcorder,
projector, or video capture card.
3
USB connectors (3) Connect optional 2.0-compliant USB
devices.
4
RJ-45 network jack Connects an Ethernet network cable.
(An Ethernet network cable is included
with select models.)
5
RJ-11 telephone jack Connects a modem cable. (A modem
cable is included with select models.)
6
Parallel connector (available
on select models)
Connects an optional parallel device
such as a printer.
7
1394 connector Connects an optional 1394 device
such as a camcorder.
