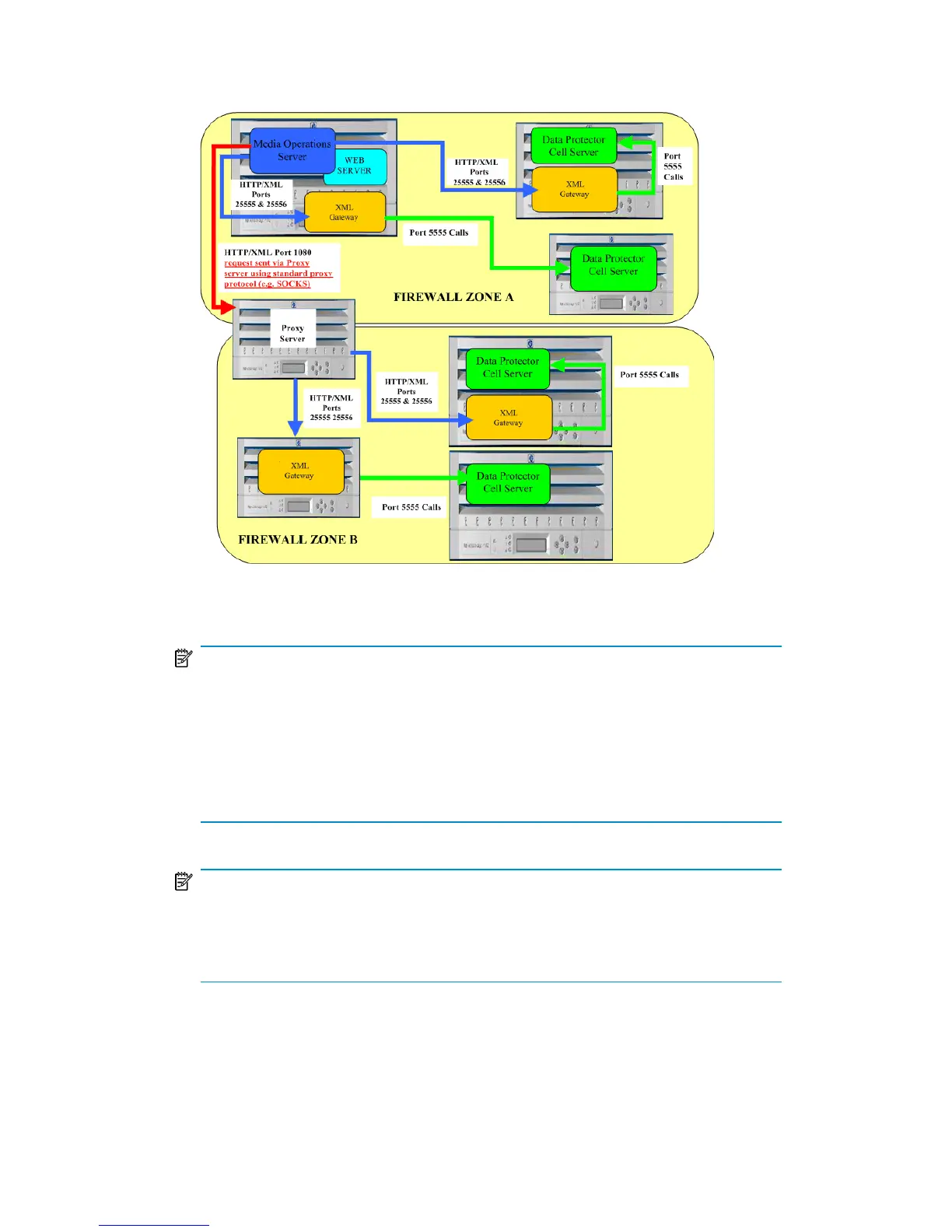

Figure 23 Media Operations deployment options with Data Protector
.
NOTE:
Communication between XML Gateway and Data Protector does not normally
pass through firewalls, so XML Gateway running on the Media Operations Server
or another server can only communicate with a Backup Manager within the same
firewall zone. If XML Gateway and Data Protector Cell Manager are behind a
firewall, Media Operations Server must communicate with XML Gateway by
passing requests to XML Gateway via a Proxy Server (such as SOCKS).
NOTE:
Symantec NetBackup master server commands must be executed locally on the
master system. Therefore, XML Gateway must be installed on the Symantec
NetBackup master server system.
User guide 65
