HP Elite 8300 Series Small Form Factor User Manual

Removing a Drive from a Drive Bay
CAUTION: All removable media should be taken out of a drive before removing the drive from the
computer.
1. Prepare the computer for disassembly (Preparation for Disassembly on page 75).
2. Remove the computer access panel (
Access Panel on page 76).
3. Remove the front bezel (
Front Bezel on page 77).
4. Disconnect the drive cables, as indicated in the following illustrations:
CAUTION: When removing the cables, pull the tab or connector instead of the cable itself to
avoid damaging the cable.
●
If you are removing an optical drive, disconnect the power cable and data cable from the
back of the drive.
●
If you are removing a media card reader, disconnect the USB cable from the system board.

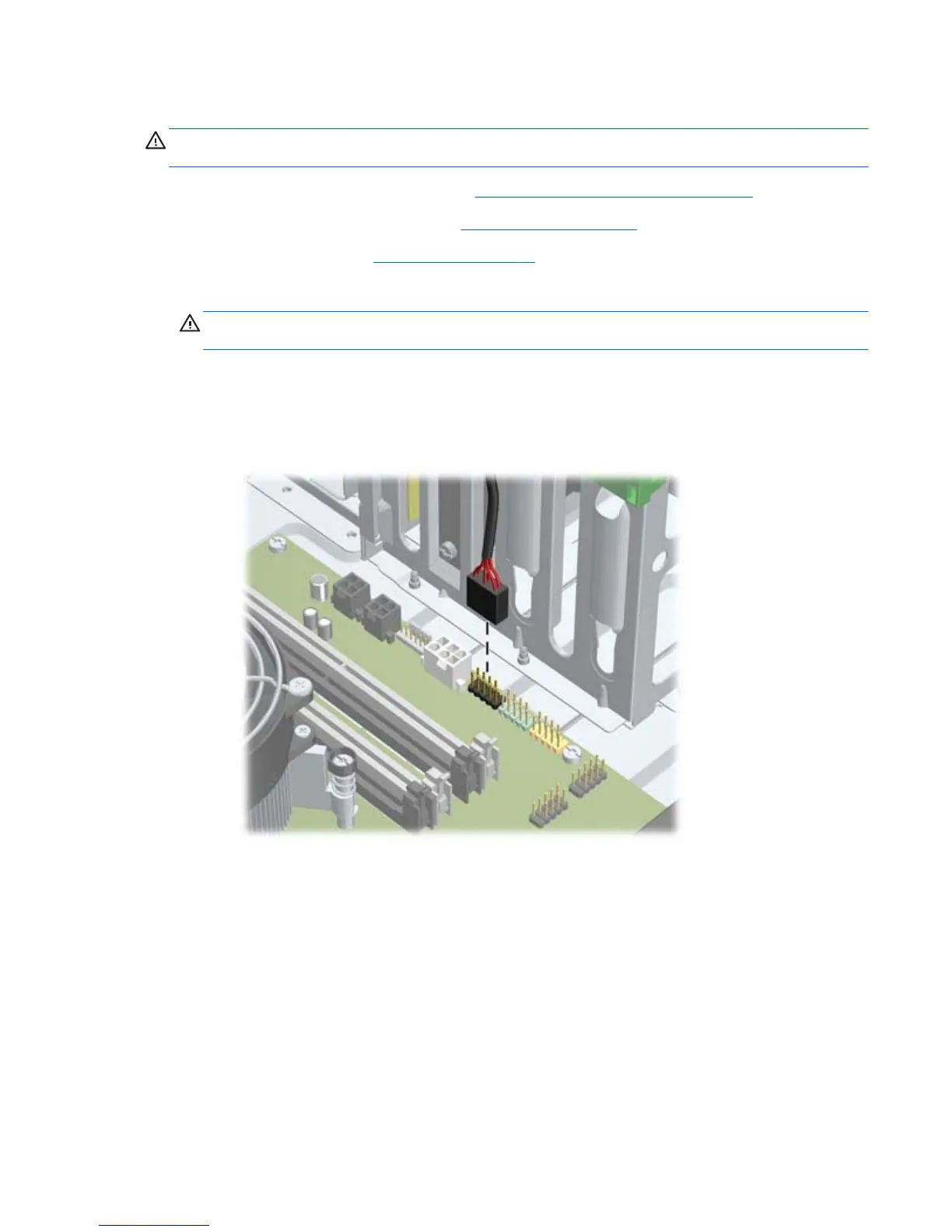

Figure 6-14 Disconnecting the Media Card Reader USB Cable
●
If you are removing a hard drive, disconnect the power cable and data cable from the back
of the drive.
Drives 91

HP Elite 8300 Series Small Form Factor Specifications

General

Chipset	Intel Q77 Express
Processor	Intel Core i7-3770, Intel Core i5-3570, Intel Core i5-3470, Intel Core i3-3220
Memory	Up to 32 GB DDR3
Graphics	Integrated Intel HD Graphics
Optical Drive	DVD-ROM
Ports	USB, DisplayPort, VGA, serial, PS/2, audio in/out
Operating System	Windows 10, Windows 8, Windows 7, FreeDOS
Audio	Integrated high-definition audio
Network	Gigabit Ethernet
Power Supply	240W
Dimensions	33.8 x 37.9 x 10.0 cm
Weight	Approx. 7.6 kg
