HP Elite 8300 Series Small Form Factor User Manual

Bezel Blanks
Description Spare part number
3.5-inch bezel blank 583653-001
5.25-inch bezel blank, optical drive 570838-001
1. Prepare the computer for disassembly (Preparation for Disassembly on page 75).
2. Remove the computer access panel (
Access Panel on page 76).
3. Remove the front bezel (
Front Bezel on page 77).
4. Gently pull the subpanel, with the bezel blanks secured in it, away from the front bezel, then
remove the desired bezel blank.
CAUTION: Hold the subpanel straight when you pull it away from the front bezel. Pulling the
subpanel away at an angle could damage the pins that align it within the front bezel.

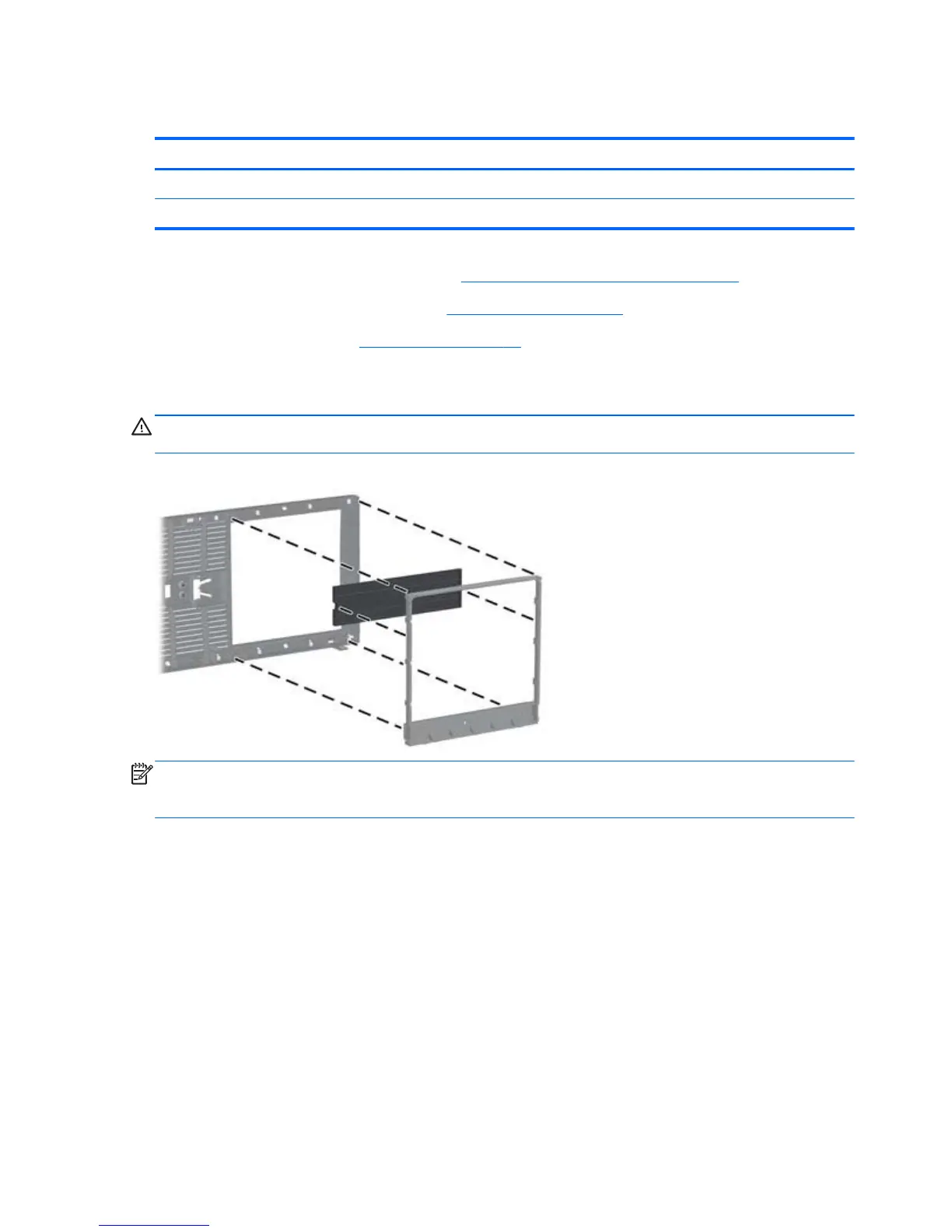

Figure 6-5 Removing Bezel Blanks from the Subpanel (Desktop Shown)
NOTE: When replacing the subpanel, ensure that the aligning pins and any remaining bezel blanks
are in their proper orientation. The logo on the subpanel should be located at the bottom of the
subpanel when properly oriented.
80 Chapter 6 Removal and Replacement Procedures Convertible Minitower (CMT) Chassis
