HP Elite 8300 Series Small Form Factor User Manual

Hood Sensor
Description Spare part number
Hood sensor 638816-001
The hood sensor is located on the top of the rear chassis panel.
1. Prepare the computer for disassembly (
Preparation for Disassembly on page 75).
2. Remove the computer access panel (
Access Panel on page 76).
3. Unplug the hood sensor cable from the connector labeled HSENSE on the system board (1).
4. Slide the hood sensor straight out of the slot in the chassis (2).

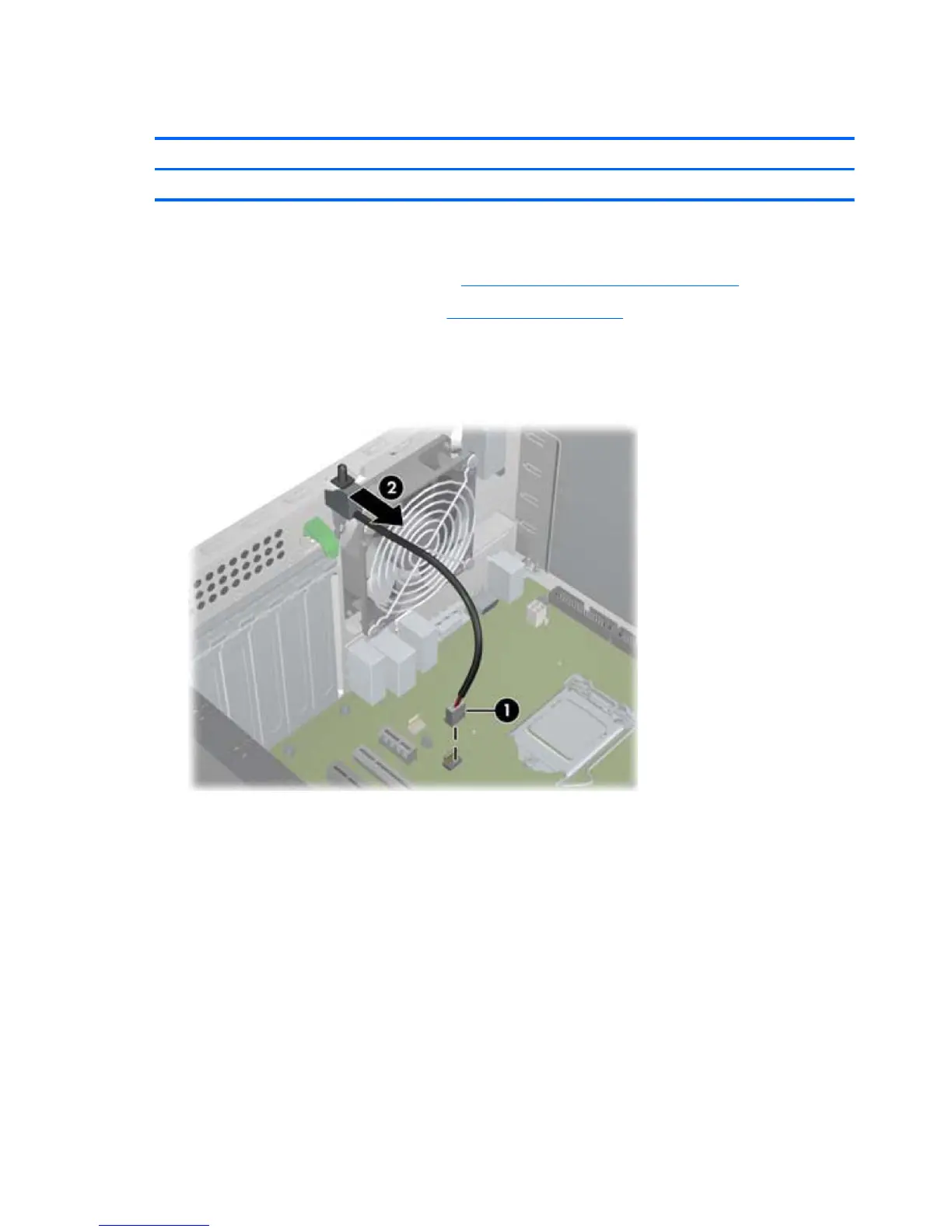

Figure 6-29 Removing the hood sensor
To reinstall the hood sensor, reverse the removal procedure.
104 Chapter 6 Removal and Replacement Procedures Convertible Minitower (CMT) Chassis

HP Elite 8300 Series Small Form Factor Specifications

General

Chipset	Intel Q77 Express
Processor	Intel Core i7-3770, Intel Core i5-3570, Intel Core i5-3470, Intel Core i3-3220
Memory	Up to 32 GB DDR3
Graphics	Integrated Intel HD Graphics
Optical Drive	DVD-ROM
Ports	USB, DisplayPort, VGA, serial, PS/2, audio in/out
Operating System	Windows 10, Windows 8, Windows 7, FreeDOS
Audio	Integrated high-definition audio
Network	Gigabit Ethernet
Power Supply	240W
Dimensions	33.8 x 37.9 x 10.0 cm
Weight	Approx. 7.6 kg
