HP Elite 8300 Series Small Form Factor User Manual

●
If you are installing a hard drive into the upper bay (bay 4), slide the hard drive into the
drive bay (1) then secure the drive in place with a standard 6-32 screw (2).

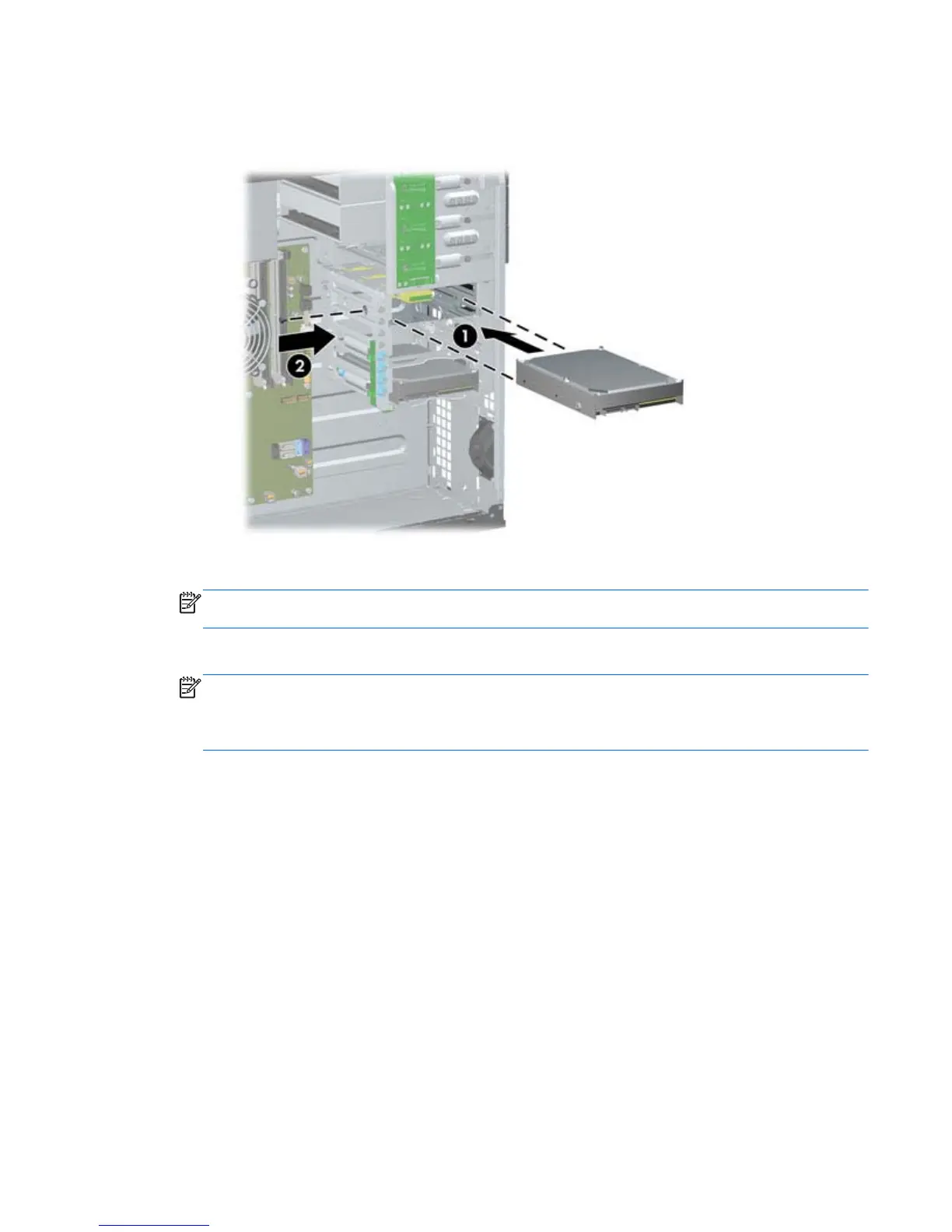

Figure 6-28 Installing a Hard Drive into the Upper Bay
5. Connect the power cable and data cable to the rear of the hard drive.
NOTE: The power cable for the hard drives is a three-headed cable that is routed from the
system board to the rear of the hard drive bays.
6. Connect the opposite end of the data cable to the appropriate system board connector.
NOTE: If your system has only one SATA hard drive, you must connect the hard drive data
cable to the dark blue connector labeled SATA0 to avoid any hard drive performance problems.
If you are adding a second hard drive, connect the data cable to the light blue connector labeled
SATA1.
7. Replace the computer access panel.
8. Reconnect the power cord and turn on the computer.
9. Lock any security devices that were disengaged when the computer access panel was removed.
Drives 103

HP Elite 8300 Series Small Form Factor Specifications

General

Chipset	Intel Q77 Express
Processor	Intel Core i7-3770, Intel Core i5-3570, Intel Core i5-3470, Intel Core i3-3220
Memory	Up to 32 GB DDR3
Graphics	Integrated Intel HD Graphics
Optical Drive	DVD-ROM
Ports	USB, DisplayPort, VGA, serial, PS/2, audio in/out
Operating System	Windows 10, Windows 8, Windows 7, FreeDOS
Audio	Integrated high-definition audio
Network	Gigabit Ethernet
Power Supply	240W
Dimensions	33.8 x 37.9 x 10.0 cm
Weight	Approx. 7.6 kg
