System Board Connections

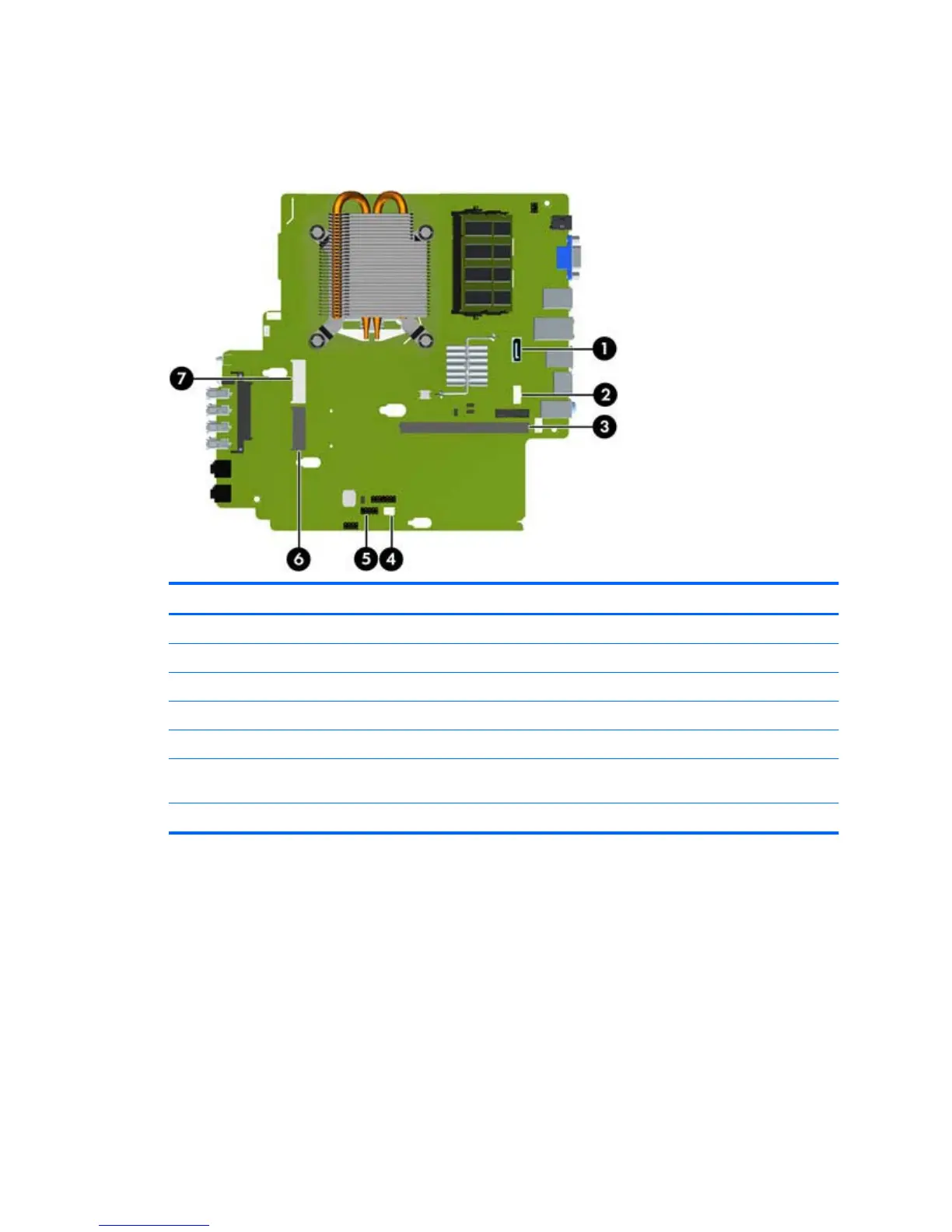

Refer to the following illustration and table to identify the system board connectors.

Figure 9-6 System Board Connections

No. System Board Connector System Board Label Color Component

1 SATA 3.0 SATA1 light blue Optical Drive

2 Power SATA PWR1 white Optical Drive

3 Mobile PCI Express Module MXM black Graphics Card

4 Hood Sensor HSENSE white Hood Sensor

5 USB MEDIA black SD Media Card Reader

6 Mini PCI Express x1 X1PCIEXP1 black Expansion Card (for example,

WLAN card)

7 Mini-SATA mSATA white Ultra-Small SSD

System Board Connections 213
