Fan duct

Description Spare part number

Fan duct 636921-001

The fan duct sits between the front fan and the heat sink.

1. Prepare the computer for disassembly (

Preparation for Disassembly on page 163).

2. Remove the access panel (

Access Panel on page 164).

3. Lift the fan duct straight up out of the chassis.

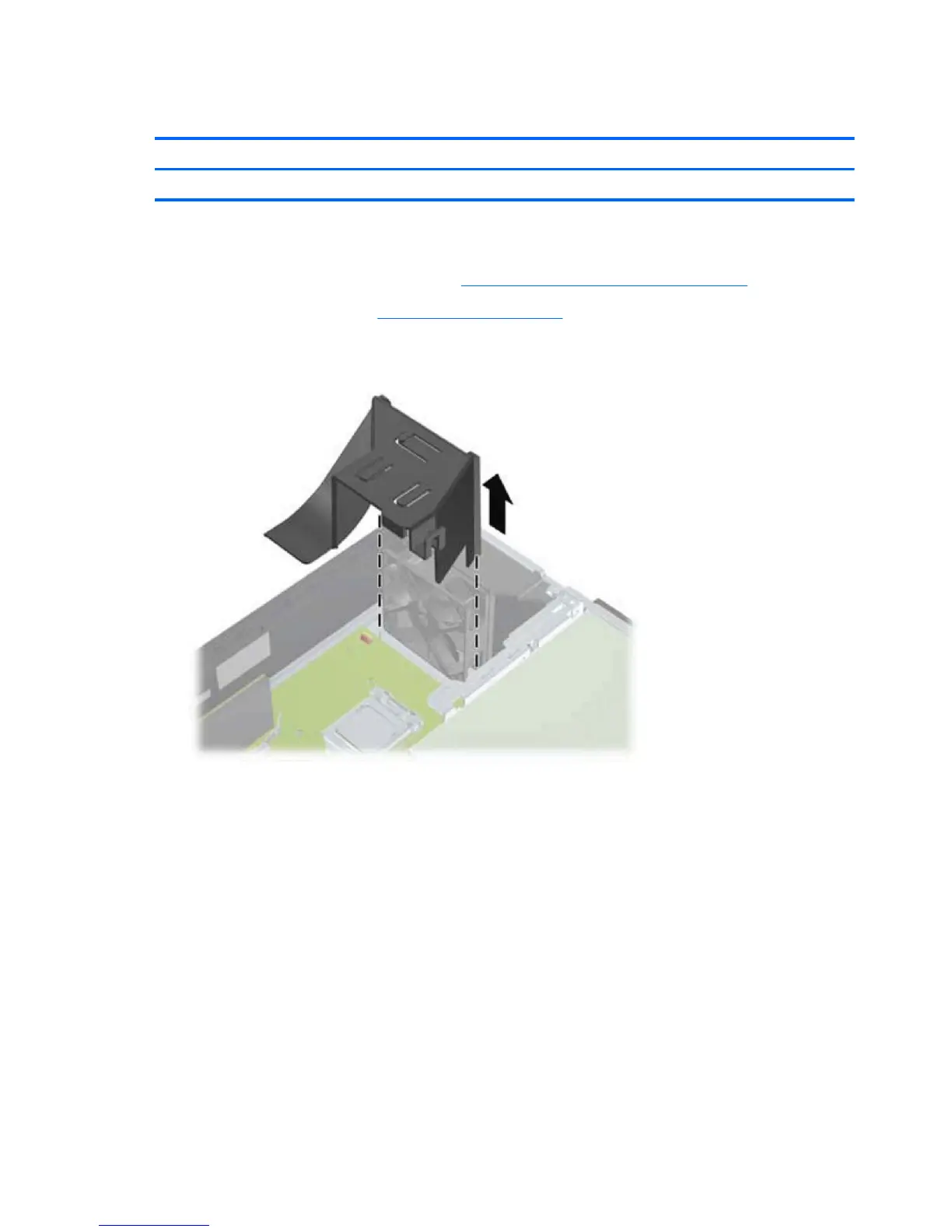

Figure 8-28 Removing the fan duct

To install the fan duct, reverse the removal procedure.

190 Chapter 8 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
