Drive Positions

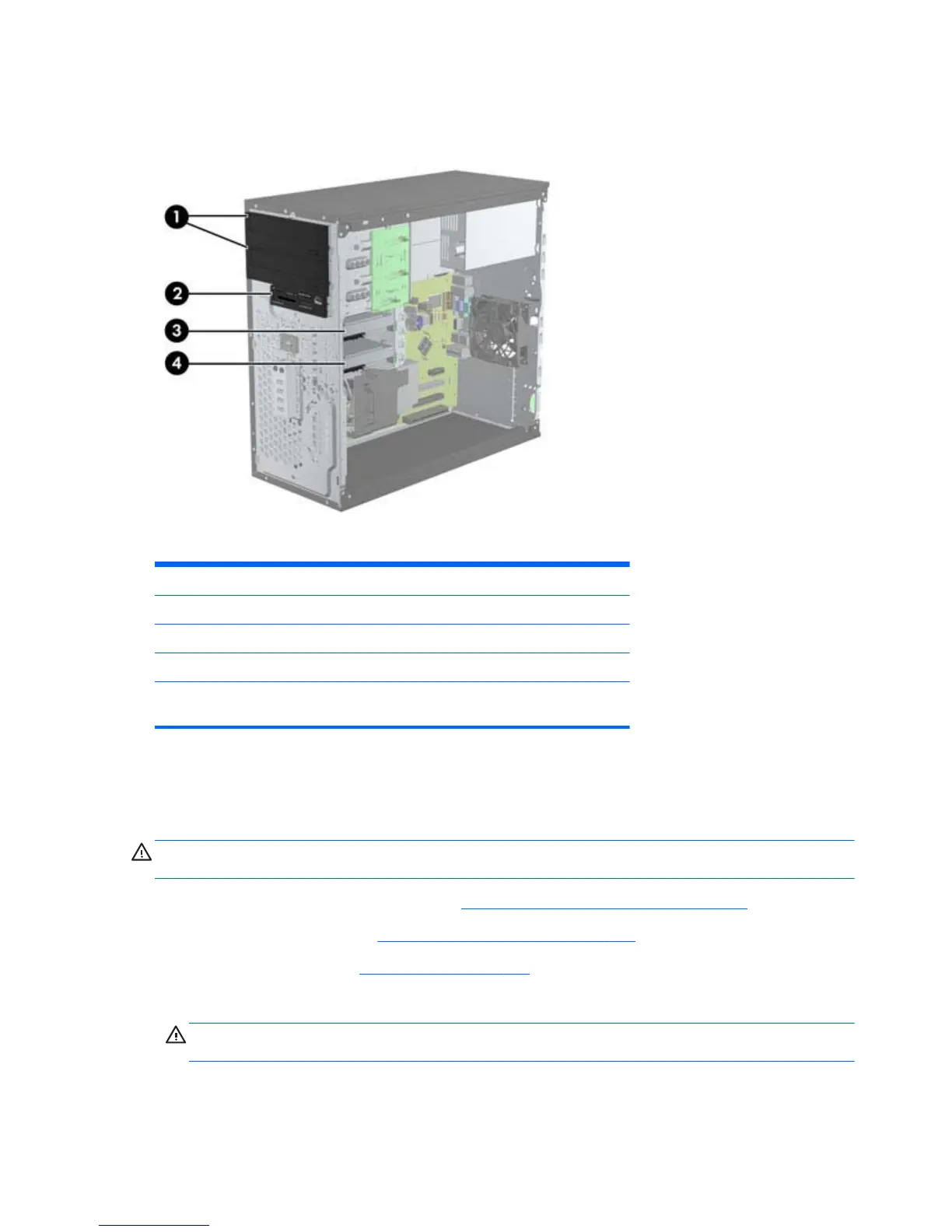

Figure 7-15 Drive Positions
Table 7-2 Drive Positions
1 Two 5.25-inch drive bays for optional drives (optical drives shown)
2 One 3.5-inch drive bay for optional drive (media card reader shown)
3 Secondary 3.5-inch internal hard drive bay for optional hard drive
4 Primary 3.5-inch internal hard drive bay
NOTE: The drive configuration on your computer may be different than the drive
configuration shown above.
To verify the type and size of the storage devices installed in the computer, run Computer Setup.
Removing a 5.25-inch or 3.5-inch Drive from a Drive Bay
CAUTION: All removable media should be taken out of a drive before removing the drive from the
computer.
1. Prepare the computer for disassembly (Preparation for Disassembly on page 122)
2. Remove the access panel (
Computer Access Panel on page 123)
3. Remove the front bezel (
Front Bezel on page 124)
4. Disconnect the drive cables, as indicated in the following illustrations.
CAUTION: When removing the cables, pull the tab or connector instead of the cable itself to
avoid damaging the cable.
a. If you are removing an optical drive, disconnect the power cable and data cable from the
back of the drive.
140 Chapter 7 Removal and Replacement Procedures Microtower (MT) Chassis
