Access Panel

Description Spare part number

Access panel 646819-001

1. Prepare the computer for disassembly (Preparation for Disassembly on page 75)

2. Lay the computer down on its large base for greater stability.

3. Lift up on the access panel handle (1) then lift the access panel off the computer (2).

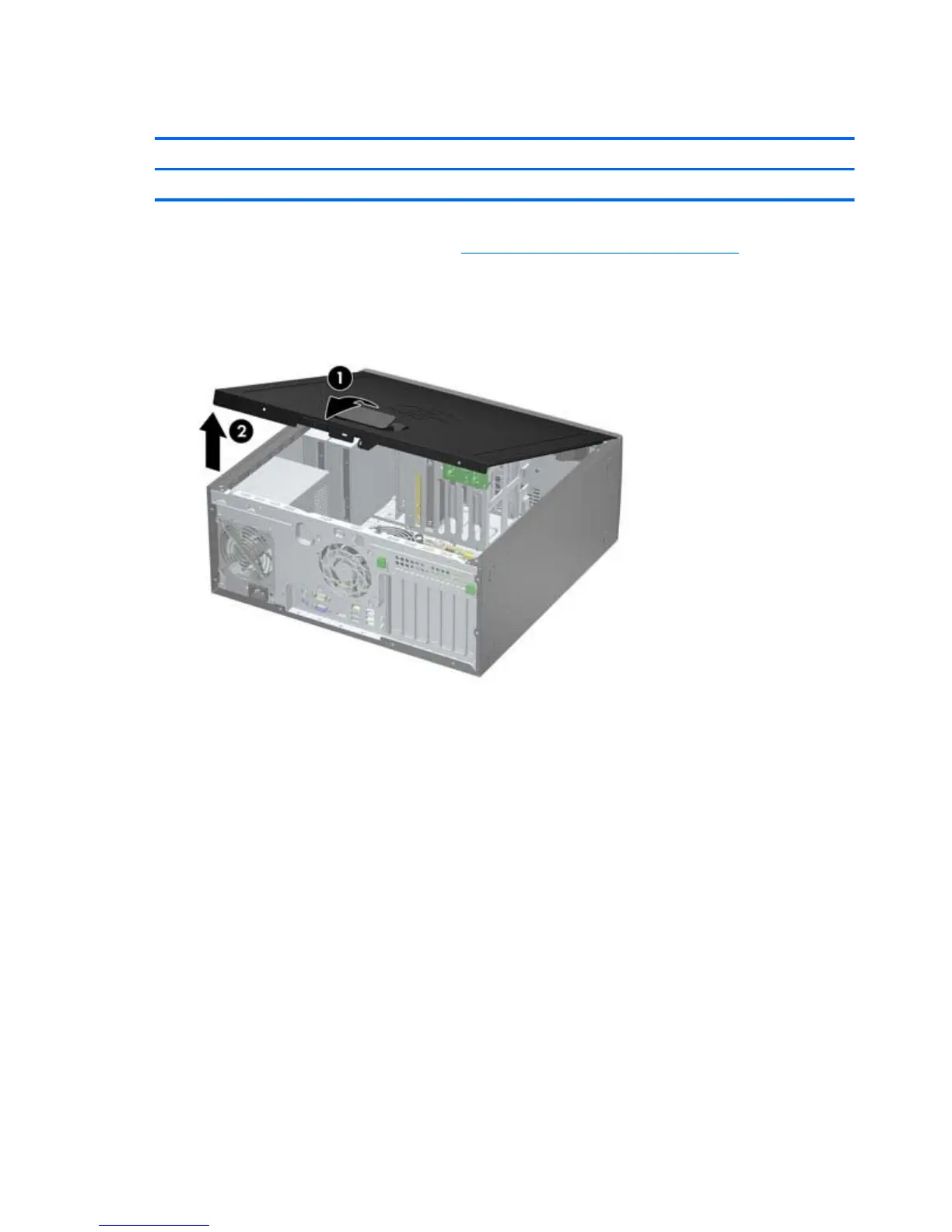

Figure 6-1 Removing the Computer Access Panel

To install the access panel, reverse the removal procedure.

76 Chapter 6 Removal and Replacement Procedures Convertible Minitower (CMT) Chassis
