HP Elite 8300 Series Small Form Factor User Manual

5. Lift the fan sink from the processor (2).

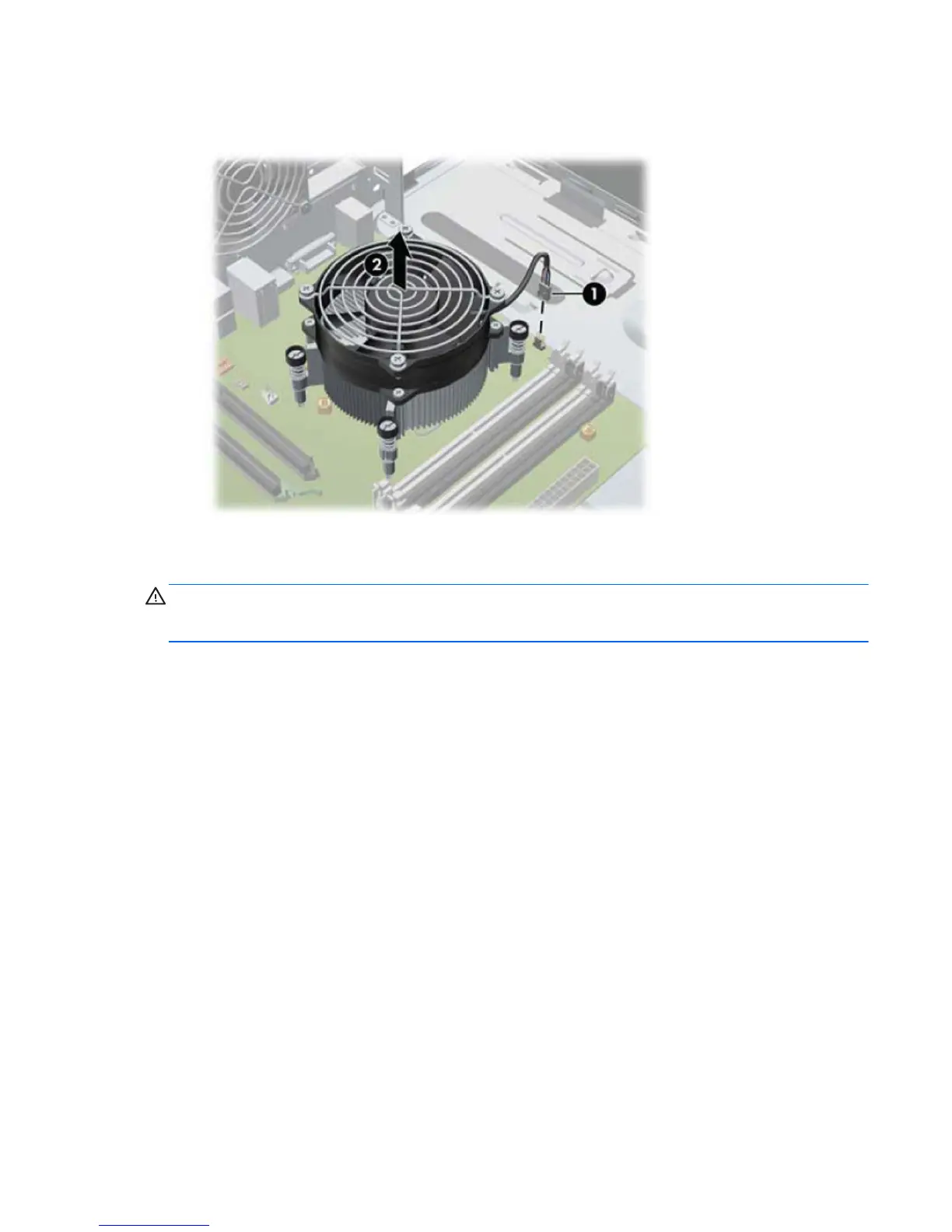

Figure 6-35 Removing the fan sink
When reinstalling the fan sink, make sure that its bottom has been cleaned with an alcohol wipe and
fresh thermal grease has been applied to the top of the processor.
CAUTION: Fan sink retaining screws should be tightened in diagonally opposite pairs (as in an X)
to evenly seat the fan sink on the processor. Failure to do so could result in damage that requires
replacing the system board.
Fan sink 111

HP Elite 8300 Series Small Form Factor Specifications

General

Chipset	Intel Q77 Express
Processor	Intel Core i7-3770, Intel Core i5-3570, Intel Core i5-3470, Intel Core i3-3220
Memory	Up to 32 GB DDR3
Graphics	Integrated Intel HD Graphics
Optical Drive	DVD-ROM
Ports	USB, DisplayPort, VGA, serial, PS/2, audio in/out
Operating System	Windows 10, Windows 8, Windows 7, FreeDOS
Audio	Integrated high-definition audio
Network	Gigabit Ethernet
Power Supply	240W
Dimensions	33.8 x 37.9 x 10.0 cm
Weight	Approx. 7.6 kg
