HP Elite 8300 Series Small Form Factor User Manual

9. Install the security screw next to the middle front bezel release tab to secure the front bezel in
place.

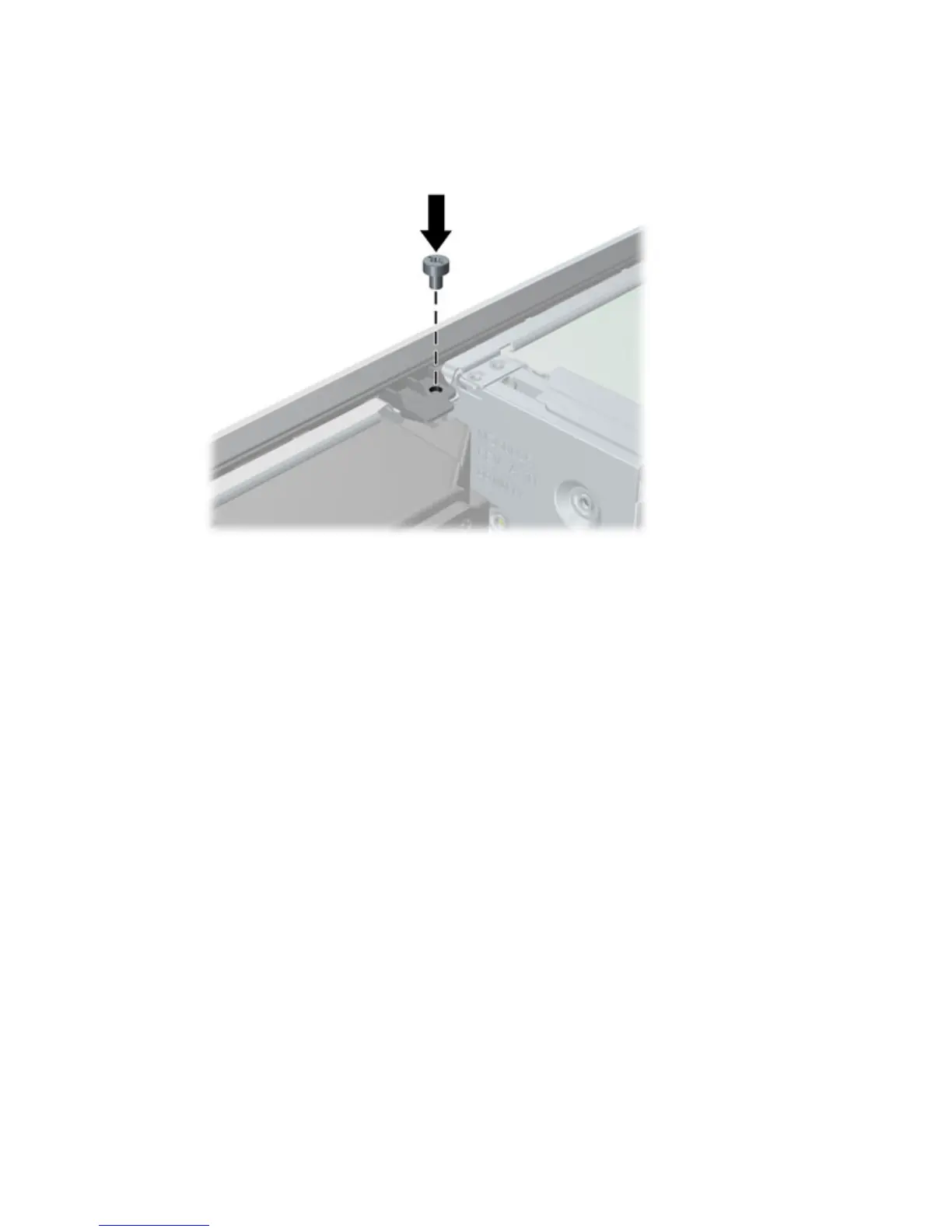

Figure 8-4 Installing the Front Bezel Security Screw
10. Replace the access panel.
11. If the computer was on a stand, replace the stand.
12. Reconnect the power cord and turn on the computer.
13. Lock any security devices that were disengaged when the access panel was removed.
Front Bezel Security 167

HP Elite 8300 Series Small Form Factor Specifications

General

Chipset	Intel Q77 Express
Processor	Intel Core i7-3770, Intel Core i5-3570, Intel Core i5-3470, Intel Core i3-3220
Memory	Up to 32 GB DDR3
Graphics	Integrated Intel HD Graphics
Optical Drive	DVD-ROM
Ports	USB, DisplayPort, VGA, serial, PS/2, audio in/out
Operating System	Windows 10, Windows 8, Windows 7, FreeDOS
Audio	Integrated high-definition audio
Network	Gigabit Ethernet
Power Supply	240W
Dimensions	33.8 x 37.9 x 10.0 cm
Weight	Approx. 7.6 kg
