7. Pull the power supply forward until the posts on the power supply move forward in the power

supply bracket, and then lift the power supply straight up and out of the chassis.

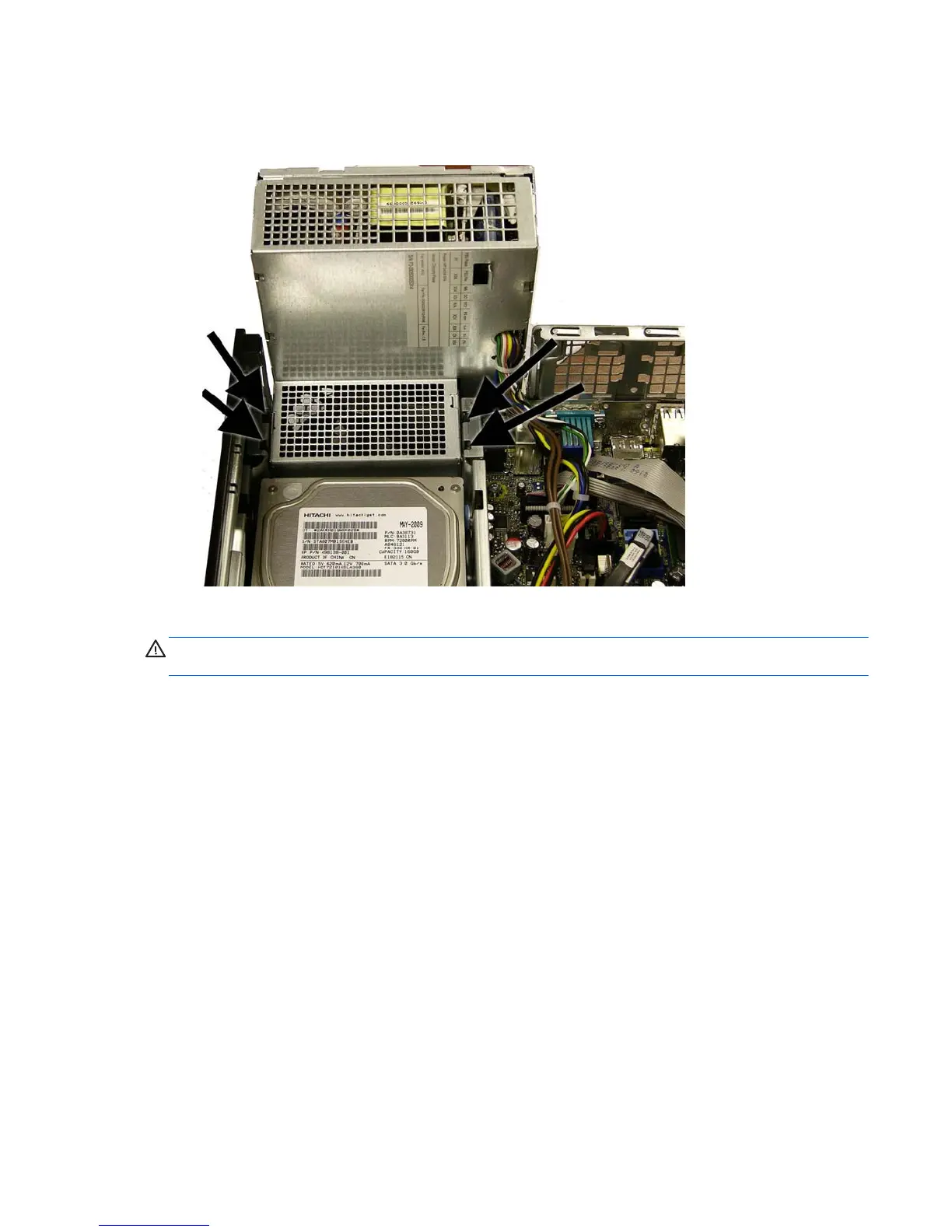

Figure 8-38 Removing the power supply

To install the power supply, reverse the removal procedure.

CAUTION: When installing the power supply cables, make sure they are properly positioned so

they are not cut by the drive cage and are not pinched by the rotating power supply.

Power Supply 203
