4. Press in the release latch on the left side of the hard drive carrier (1) then rotate the carrier

handle to the right (2).

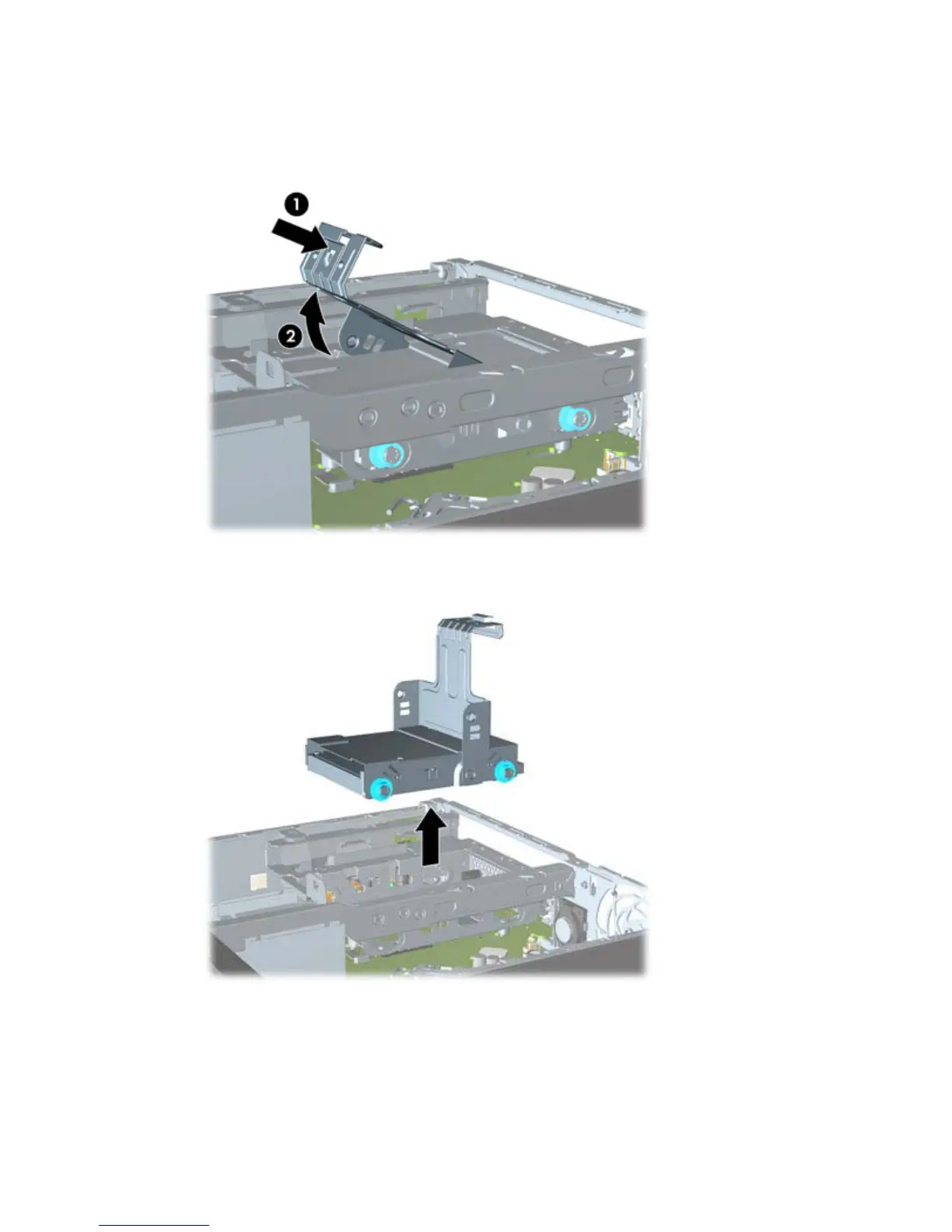

Figure 9-14 Unlocking the hard drive carrier

5. Lift the hard drive carrier straight up and out of the chassis.

Figure 9-15 Removing the hard drive carrier

Hard Drive 223
