HP Elite Slice G2 Service Manual

Populating memory module slots
There are two memory module slots, one slot per channel. The slots are labeled DIMM1 and DIMM3. The
DIMM1 slot operates in memory channel B. The DIMM3 slot operates in memory channel A.

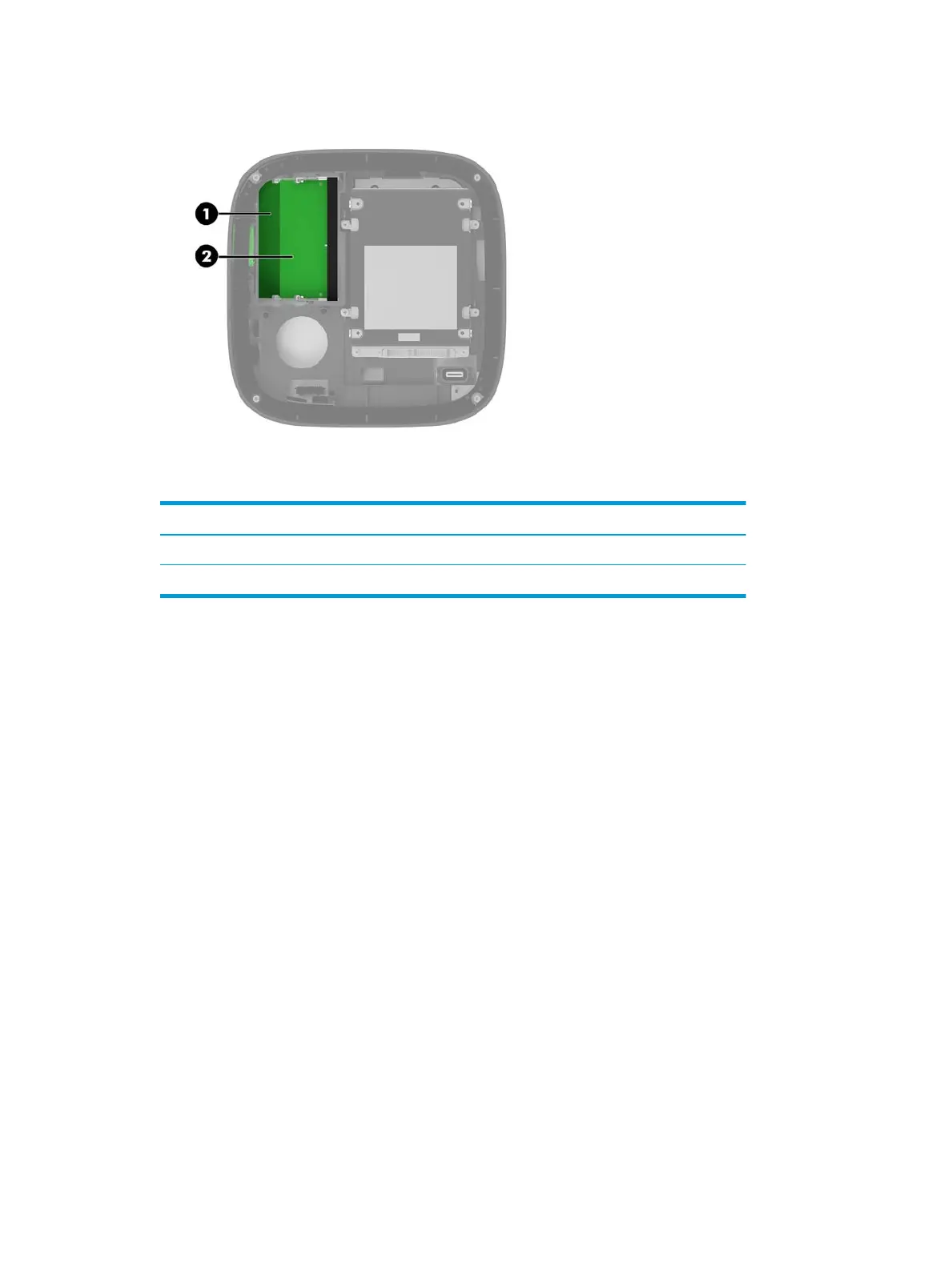

Item Description System Board Label Slot Color
1 Memory 1 slot, Channel B DIMM1 Black
2 Memory 3 slot, Channel A DIMM3 Black
The system automatically operates in single-channel mode, dual-channel mode, or ex mode, depending on
how the memory modules are installed.
●
The system operates in single-channel mode if only one memory module slot is populated.
●
The system operates in higher-performing, dual-channel mode if the capacity of the memory modules
in Channel A and Channel B are equal.
●
The system operates in ex mode if the capacity of the memory modules in Channel A and Channel B are
not equal. In ex mode, the channel populated with the least amount of memory determines the total
amount of memory that is assigned to dual-channel operation, and the remainder is assigned to single-
channel operation. In ex mode, install the memory module with the larger capacity in the DIMM3 slot
(Channel A).
●
In any mode, the maximum operational speed is determined by the slowest memory module in the
system.
Memory 23

HP Elite Slice G2 Specifications

General

Bus type	DMI3
Processor cache	6 MB
Processor model	i5-7500T
Processor threads	4
Processor frequency	2.7 GHz
Processor cache type	L3
Processor manufacturer	Intel
Processor boost frequency	3.3 GHz
Number of processors installed	1
Configurable TDP-down frequency	1.7 GHz
ECC	No
Internal memory	8 GB
Memory clock speed	2400 MHz
Internal memory type	DDR4-SDRAM
Maximum internal memory	- GB
Memory layout (slots x size)	2 x 4 GB
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
SSD interface	NVMe
Storage media	SSD
SSD form factor	M.2
Total storage capacity	128 GB
Intel Identity Protection Technology version	1.00
Sustainability certificates	ENERGY STAR
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 630
Maximum on-board graphics card memory	64 GB
Antenna type	2x2
Bluetooth version	4.2
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN controller model	Intel Dual Band Wireless-AC 8260
Ethernet LAN data rates	10, 100, 1000 Mbit/s
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Chassis type	USFF
Product color	Black
Country of origin	China
Audio chip	Conexant CX7501
Product type	PC
Motherboard chipset	Intel® Q170
Operating system installed	Windows 10 IoT Enterprise
HP segment	Business
Power supply	90 W

Weight and Dimensions

Width	165 mm
Height	112 mm
Weight	1520 g
Package depth	596 mm
Package width	203 mm
Package height	273 mm
Package weight	6670 g
