Speaker
A single speaker is located near the memory modules.

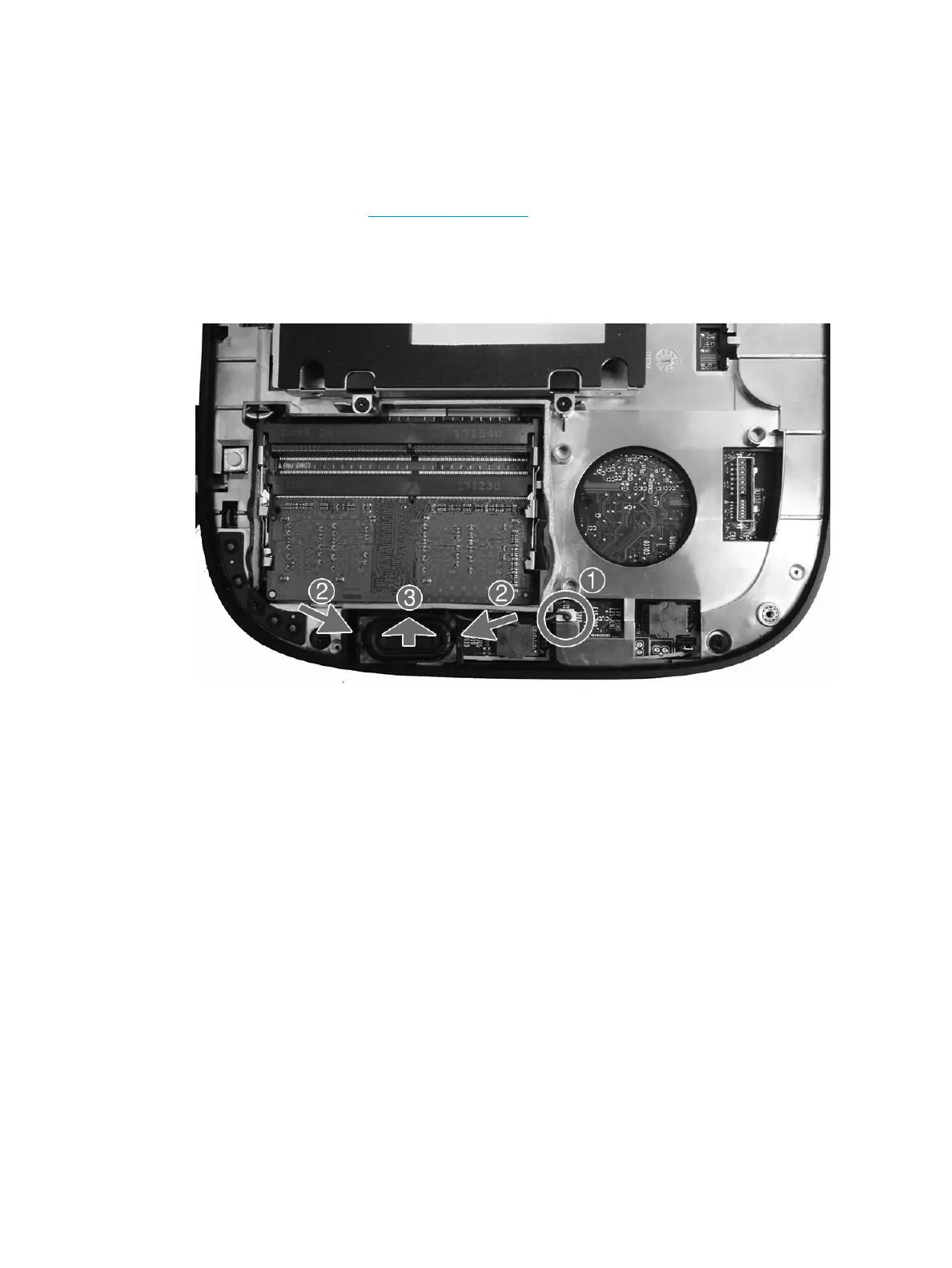

To remove the speaker:
1. Remove the access panel (Access panel on page 21).
2. Disconnect the speaker cable from the system board connector (1).
3. Pull the two tabs on each side of the speaker away from the speaker (2).
4. Lift the speaker from the computer (3).
To install the speaker, reverse the removal procedures.
Speaker 29
