HP Elite Slice G2 Service Manual

Processor
Description
Intel Core i5-7500T, 2.7 GHz, 6-GB L2 cache, 35 W
Intel Core i5-7400T, 2.4 GHz, 6-GB L2 cache, 35 W
Intel Core i3-7100T, 3.4 GHz, 3-GB L2 cache, 35 W

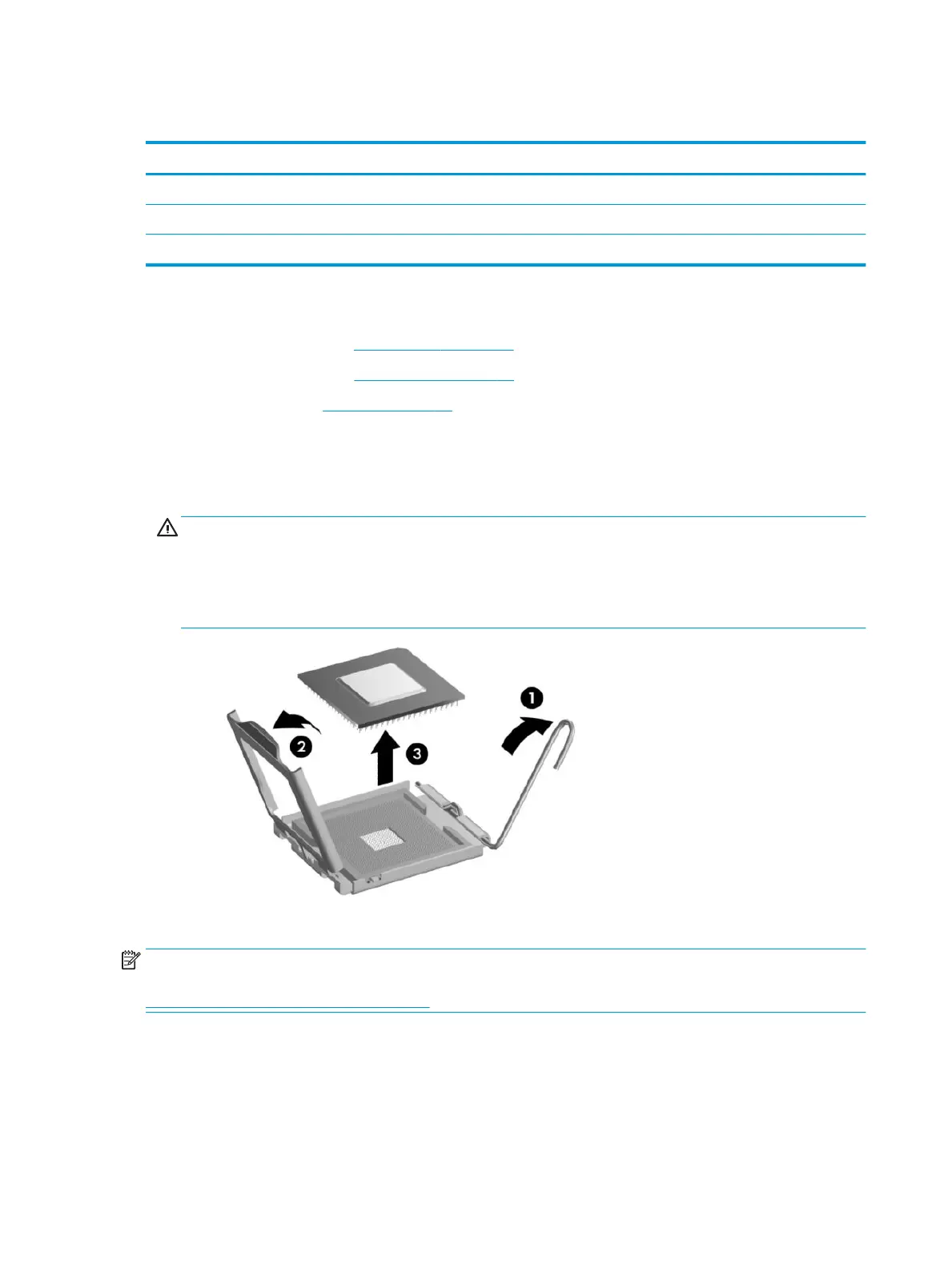

To remove the processor:
1. Remove the access panel (Access panel on page 21).
2. Remove the Base Module (Base Module on page 30).
3. Remove the fan sink (Fan sink on page 37).
4. Rotate the locking lever to its full open position (1).
5. Raise and rotate the microprocessor retainer to its fully open position (2).
6. Lift the processor (3) straight up and remove it.
CAUTION: Do NOT handle the pins in the processor socket. These pins are very fragile and handling
them could cause irreparable damage. Once pins are damaged it may be necessary to replace the
system board.
The fan sink must be installed within 24 hours of installing the processor to prevent damage to the
processor’s solder connections.
Reverse the removal procedure to install a new processor.
NOTE: After installing a new processor onto the system board, update the system ROM to ensure that the
latest version of the BIOS is being used on the computer. The latest system BIOS can be found at:
http://h18000.www1.hp.com/support/les.
40 Chapter 4 Removal and replacement procedures – HP Elite Slice Base Module

HP Elite Slice G2 Specifications

General

Bus type	DMI3
Processor cache	6 MB
Processor model	i5-7500T
Processor threads	4
Processor frequency	2.7 GHz
Processor cache type	L3
Processor manufacturer	Intel
Processor boost frequency	3.3 GHz
Number of processors installed	1
Configurable TDP-down frequency	1.7 GHz
ECC	No
Internal memory	8 GB
Memory clock speed	2400 MHz
Internal memory type	DDR4-SDRAM
Maximum internal memory	- GB
Memory layout (slots x size)	2 x 4 GB
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
SSD interface	NVMe
Storage media	SSD
SSD form factor	M.2
Total storage capacity	128 GB
Intel Identity Protection Technology version	1.00
Sustainability certificates	ENERGY STAR
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 630
Maximum on-board graphics card memory	64 GB
Antenna type	2x2
Bluetooth version	4.2
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN controller model	Intel Dual Band Wireless-AC 8260
Ethernet LAN data rates	10, 100, 1000 Mbit/s
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Chassis type	USFF
Product color	Black
Country of origin	China
Audio chip	Conexant CX7501
Product type	PC
Motherboard chipset	Intel® Q170
Operating system installed	Windows 10 IoT Enterprise
HP segment	Business
Power supply	90 W

Weight and Dimensions

Width	165 mm
Height	112 mm
Weight	1520 g
Package depth	596 mm
Package width	203 mm
Package height	273 mm
Package weight	6670 g
