HP Elite Slice G2

Base Module
To remove the Base Module from the Audio Module:
1. Remove the access panel (Access panel on page 21).

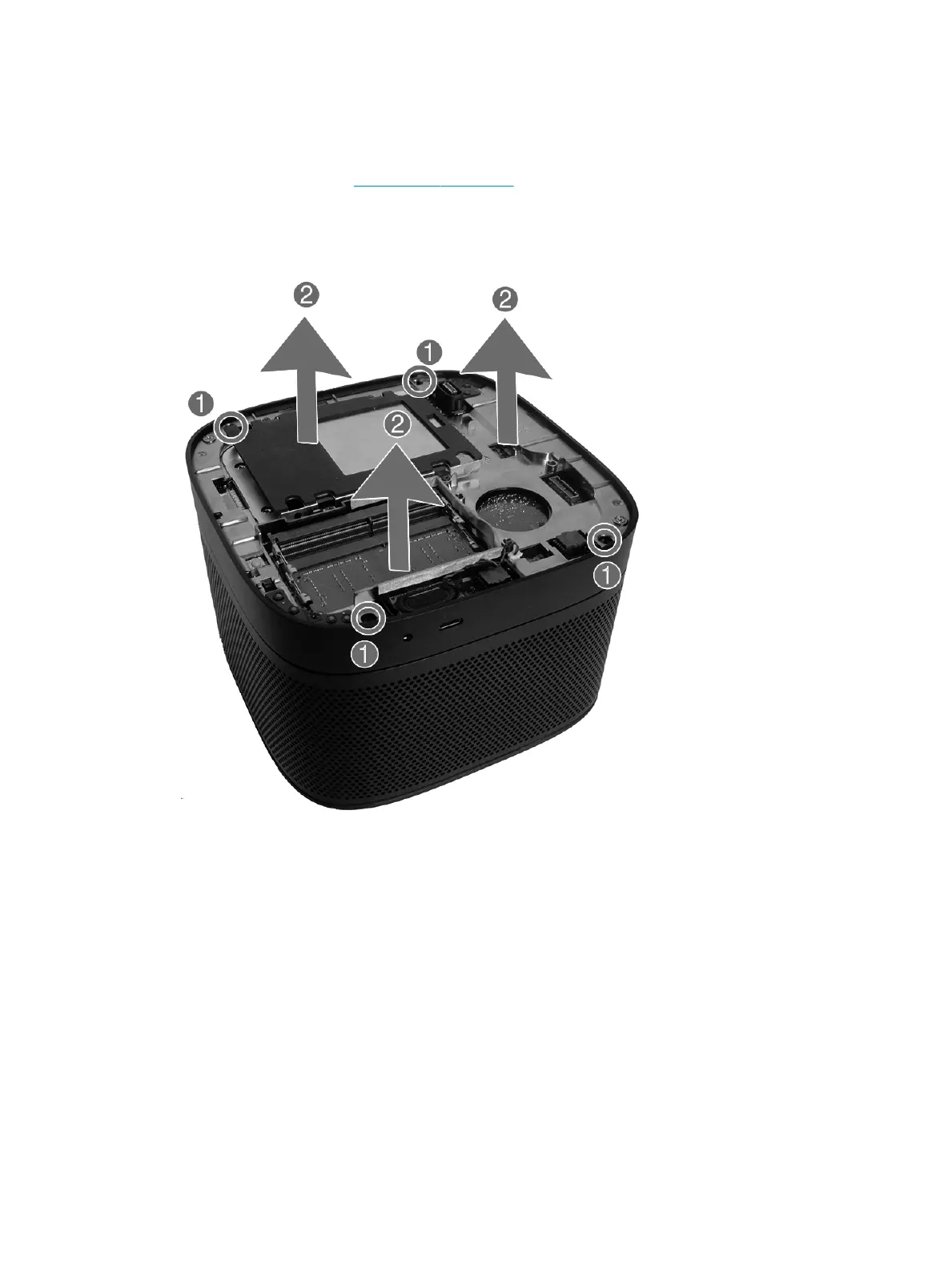

2. Loosen the four Phillips screws (1) that secure the Base Module to the Audio Module.
3. Lift the Base Module up (2). Note that cables connect components in the Base Module to the Audio
Module. After releasing the Base Module, rotate it and place it upside down next to the Audio Module.
4. Place the Base Module upside down next to the Audio Module (1).
30 Chapter 4 Removal and replacement procedures – HP Elite Slice Base Module
