HP Elite Slice G2 Service Manual

System board
Removing the system board
NOTE: All system board spare part kits include replacement thermal material.
NOTE: System board appearance may vary.
To remove the system board:
1. Remove the access panel (Access panel on page 21).
2. Remove the memory modules (Memory on page 22).
3. Remove the Base Module (Base Module on page 30).
4. Remove the WLAN module (WLAN module on page 32).
5. Remove the fan sink (Fan sink on page 37).
6. Remove the M.2 solid-state drive (M.2 PCIe solid state drive (SSD) on page 38).
7. Remove the processor (Processor on page 40).

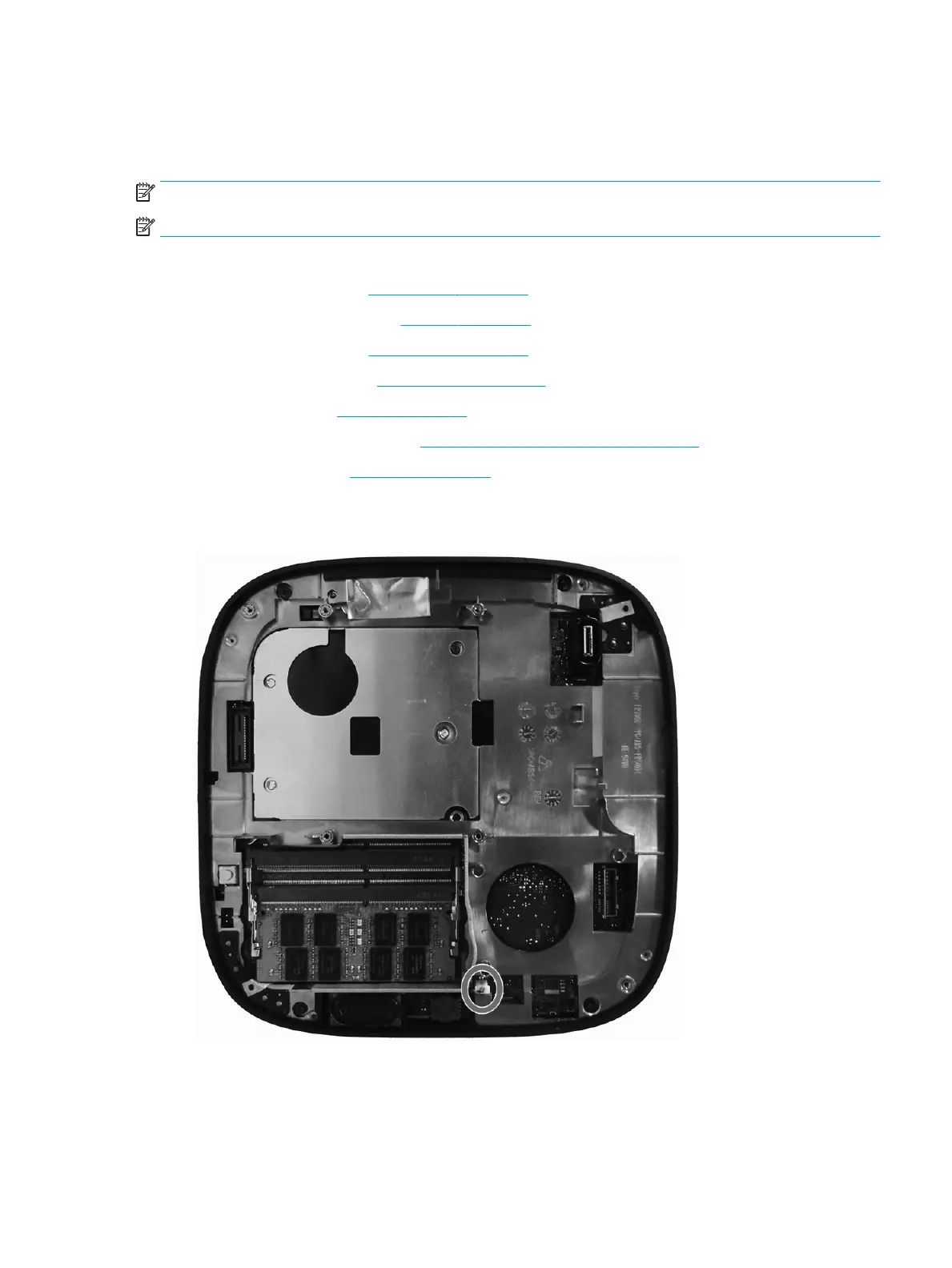

8. Position the computer with the memory sockets facing upward.
9. Disconnect the speaker cable from the system board.
10. Position the computer with the processor socket facing upward.
System board 41

HP Elite Slice G2 Specifications

General

Bus type	DMI3
Processor cache	6 MB
Processor model	i5-7500T
Processor threads	4
Processor frequency	2.7 GHz
Processor cache type	L3
Processor manufacturer	Intel
Processor boost frequency	3.3 GHz
Number of processors installed	1
Configurable TDP-down frequency	1.7 GHz
ECC	No
Internal memory	8 GB
Memory clock speed	2400 MHz
Internal memory type	DDR4-SDRAM
Maximum internal memory	- GB
Memory layout (slots x size)	2 x 4 GB
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
SSD interface	NVMe
Storage media	SSD
SSD form factor	M.2
Total storage capacity	128 GB
Intel Identity Protection Technology version	1.00
Sustainability certificates	ENERGY STAR
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 630
Maximum on-board graphics card memory	64 GB
Antenna type	2x2
Bluetooth version	4.2
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN controller model	Intel Dual Band Wireless-AC 8260
Ethernet LAN data rates	10, 100, 1000 Mbit/s
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Chassis type	USFF
Product color	Black
Country of origin	China
Audio chip	Conexant CX7501
Product type	PC
Motherboard chipset	Intel® Q170
Operating system installed	Windows 10 IoT Enterprise
HP segment	Business
Power supply	90 W

Weight and Dimensions

Width	165 mm
Height	112 mm
Weight	1520 g
Package depth	596 mm
Package width	203 mm
Package height	273 mm
Package weight	6670 g
