Chapter 2 2-27
HP ESA Status Registers
Using the Analyzer Status Registers
Questionable Status Calibration Register

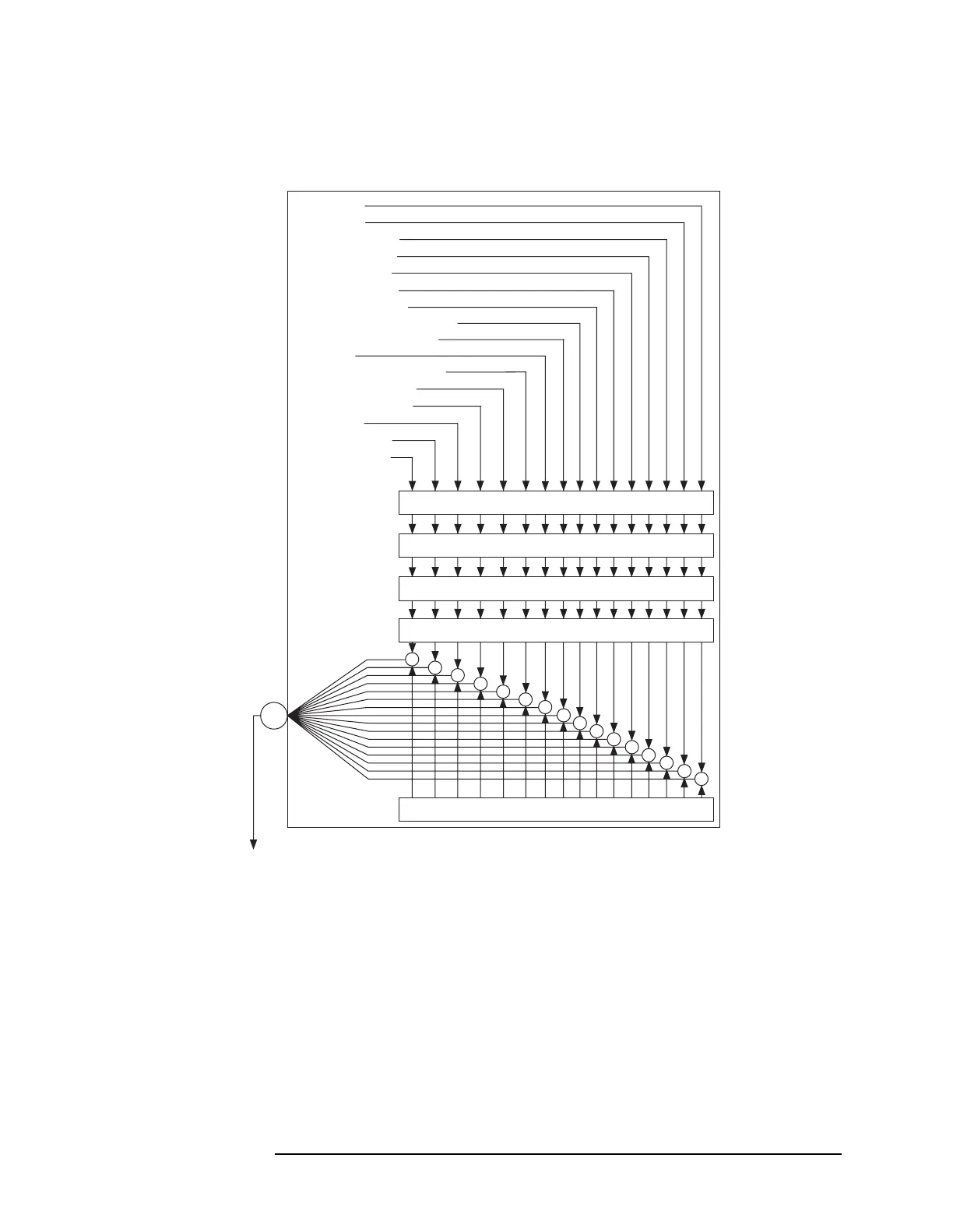

Figure 2-14. Questionable Status Calibration Register
The Questionable Status Calibration Register is used to determine the
specific event that sets bit 8 in the Questionable Status Register. The
Questionable Status Calibration Register consists of the following
registers:
Questionable Status
Calibration condition register
Questionable Status Calibration positive transition filter
Questionable Status Calibration negative transition filter
Questionable Status Calibration event register
Questionable Status Calibration event enable register
The Questionable Status Calibration condition register contains the
following bits:
To Questionable Register Bit #8Status
Reserved
TG Align Failure
Reserved
RF Align Failure
FM Demod Align Failure
Qpeak Align Failure
Tracking Peak Needed
Align RF Skipped
Align RF Needed
Reserved
Unused
Align Needed
QUEStionable
CALibration
Condition Register
Status
QUEStionable
CALibration
Event Register
Status
QUEStionable
CALibration
Event
Enable Register
Status
QUEStionable
CALibration
Negative
Transition Filter
Status
QUEStionable
CALibration
Positive
Transition Filter
Status
Always Zero (0)
IF Align Failure
LO Align Failure
ADC AlignFailure
+
012345678910111214 1315
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
012
3
45678910111214 1315
012
3
45678910111214 1315
012345678910111214 1315
012
3
45678910111214 1315
ck750a
