ItemItem DescriptionDescription

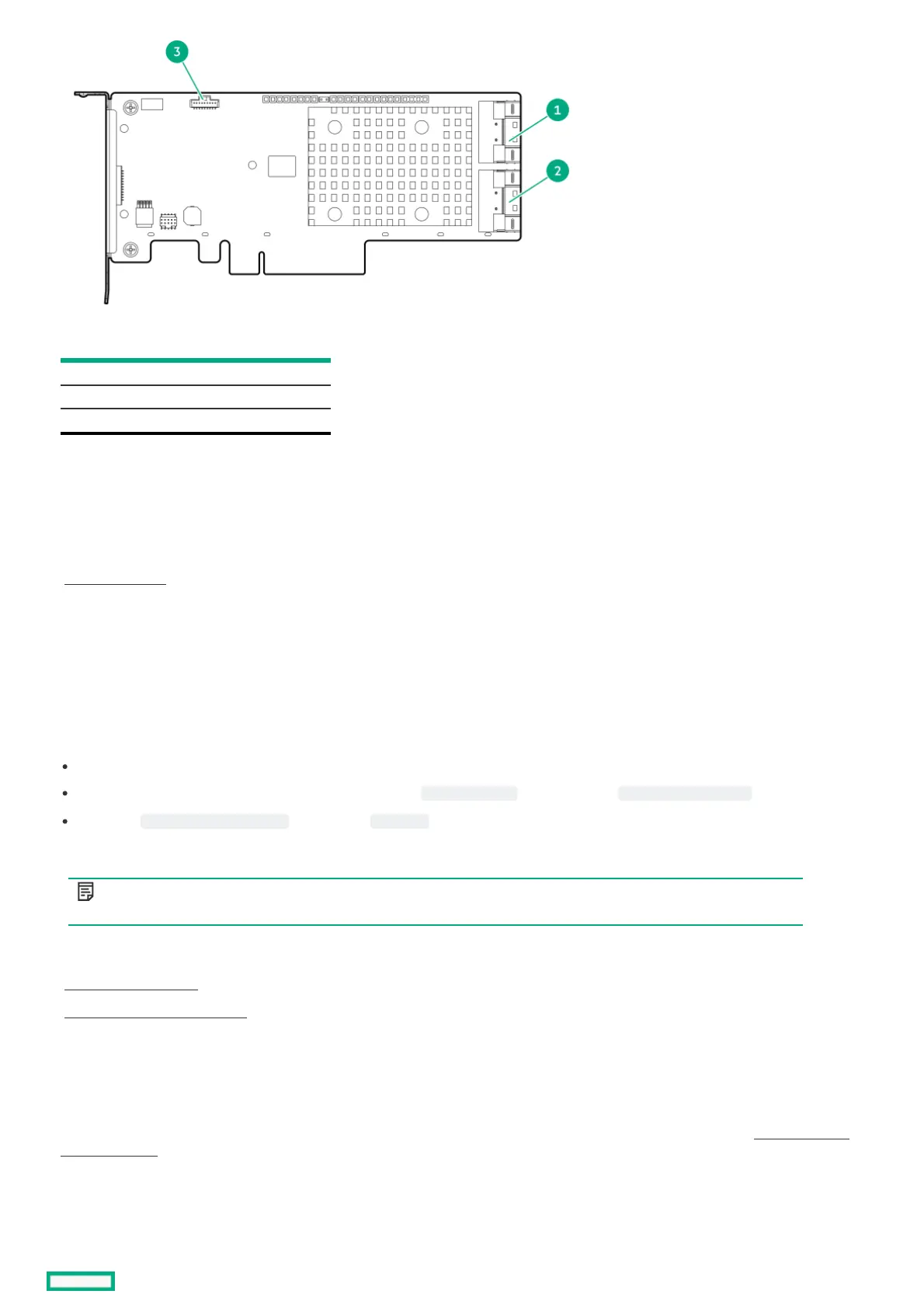

1 Internal x8 SlimSAS Connector, Port 1i
2 Internal x8 SlimSAS Connector, Port 2i
3 Backup power cable connector
Additional hardware and optionsAdditional hardware and options
SubtopicsSubtopics
Energy pack optionsEnergy pack options
Energy pack optionsEnergy pack options
Hewlett Packard Enterprise offers a variety of intelligent energy packs ranging in cell chemistry, power output, and cable lengths to fit within the broad range of
servers. The centralized energy pack supports flash-backed write cache (FBWC) or SmartCache across storage controllers. It is installed at the front of the server
and plugs into a 14-pin (2x7) connector on the server motherboard. Power is routed through the motherboard and PCI risers and delivered to the storage
controller using a three-pin controller backup power cable. The power cable is included with the purchase of supported storage controllers.
The health of energy pack can be viewed using any of the following options:
In iLO GUI, select Power & Thermal >Power and check statistics in Smart Storage Energy Pack panel.
Along with the controller GUI & CLI tools, you can check iLO Redfish CacheSummary property under the StorageController resource.
iLO Redfish SmartStorageBattery property under Chassis resource.
Upon starting, the storage controllers exchange information with HPE BIOS during POST and monitor the voltage received from the three-pin controller backup
power cable.
NOTE:NOTE:
The energy pack must only be installed, removed, or replaced while the server is powered off and AC power cords are removed.
SubtopicsSubtopics
HPE smart storage batteryHPE smart storage battery
HPE Smart Storage Hybrid CapacitorHPE Smart Storage Hybrid Capacitor
HPEHPE smart storage battery smart storage battery
HPE Smart Storage Battery is an optional lithium-ion, low-halogen centralized backup source. It supports unlimited number of devices of 96W battery or two
devices of 12W battery. The time required to recharge is two hours for 96W battery and one hour for 12W battery. For more information, see HPE Smart StorageHPE Smart Storage
Battery QuickSpecsBattery QuickSpecs.
HPEHPE Smart Storage Hybrid Capacitor Smart Storage Hybrid Capacitor
