Management
SNMP
2-8

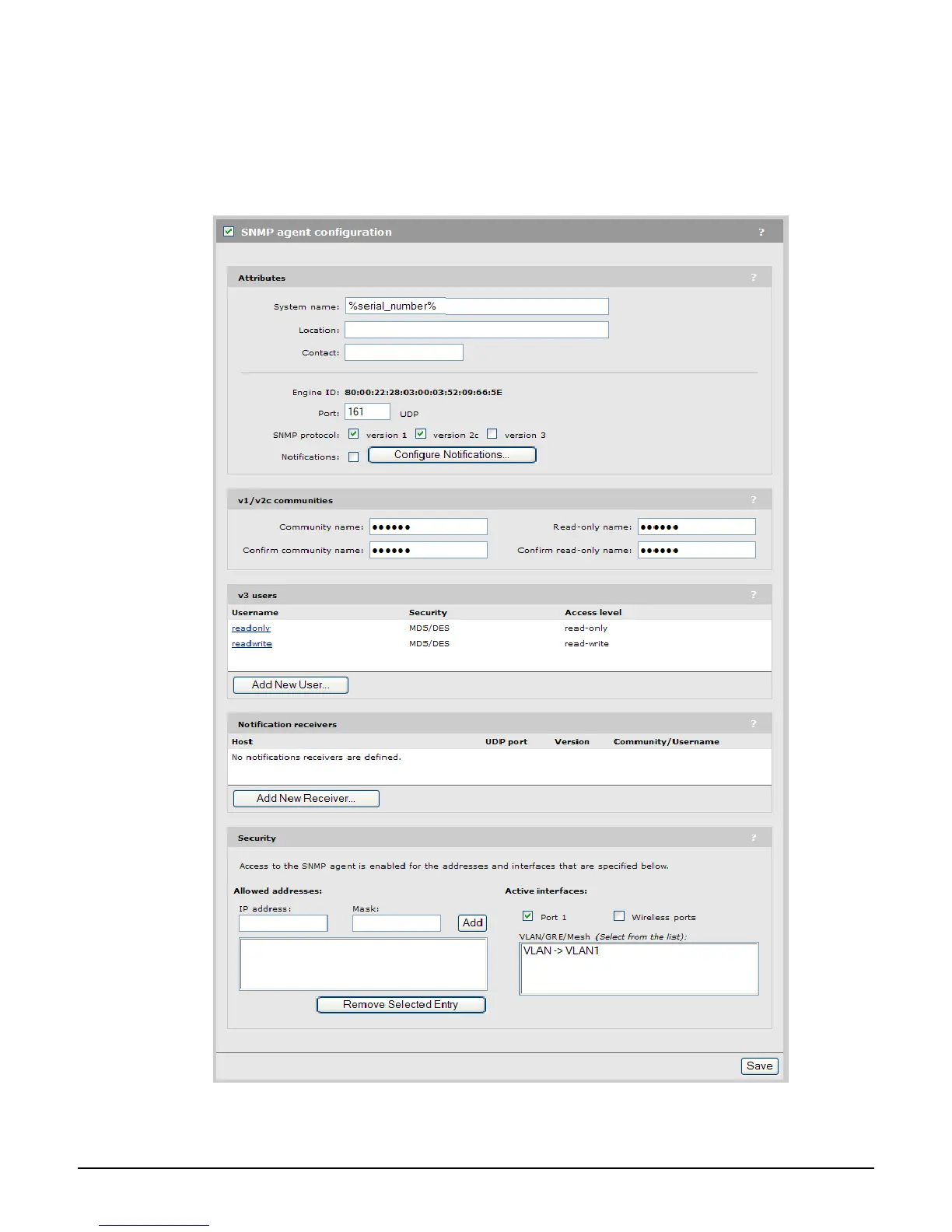

Configuring SNMP settings
Select
Management > SNMP
to open the
SNMP agent configuration
page. By default, the
SNMP agent is enabled
(
SNMP agent configuration
in title bar is c
hecked). If you di
sable
the agent, the AP will not respond to SNMP requests.
