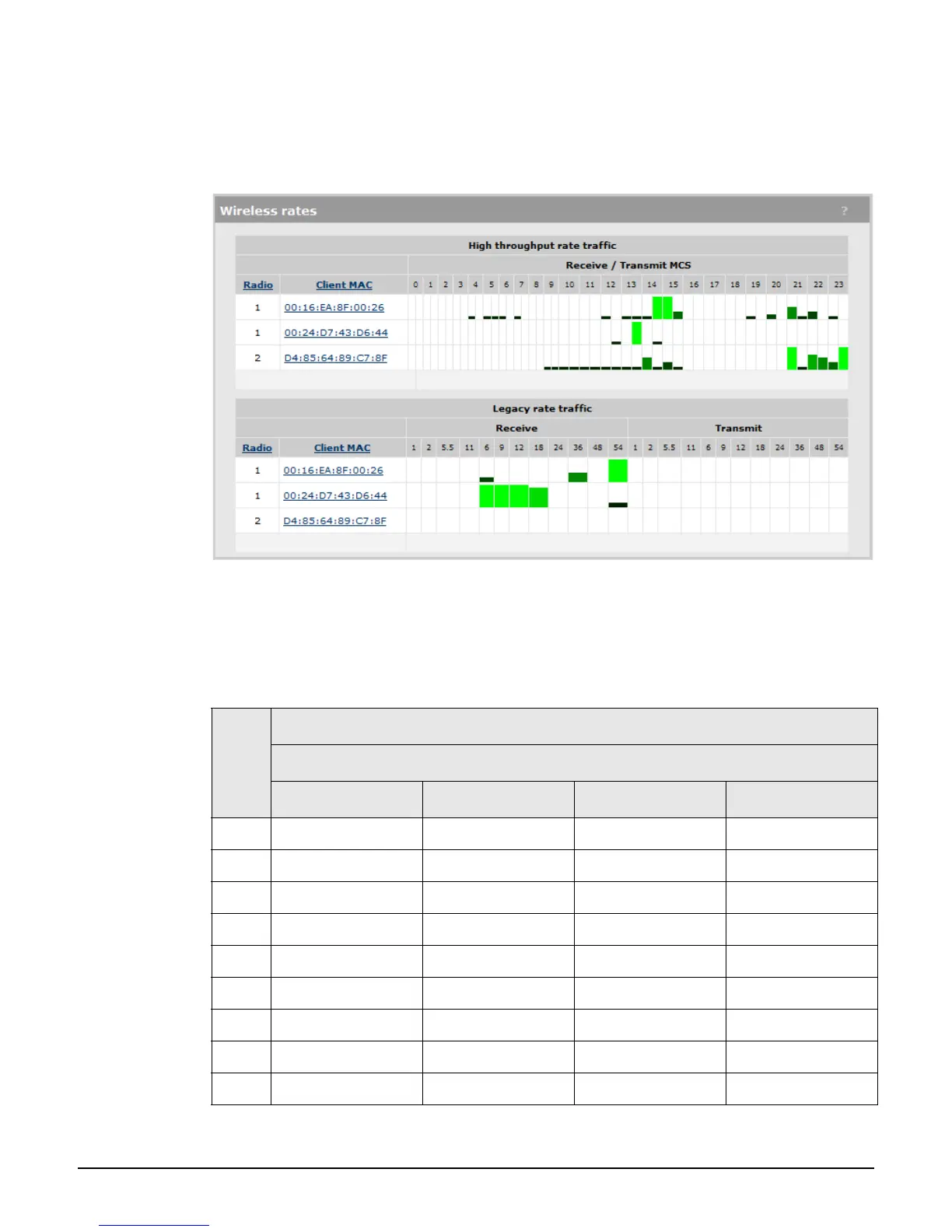

Viewing wireless client data rates
To view information on the data rates used by all wireless client stations currently connected
to the AP, select Status > Client data rate matrix.
High throughput (HT) rate traffic
Displays information for users connected via any 802.11n mode. Rates are shown for each
supported MCS (modulation coding scheme). The size of the bar indicates the amount of
traffic sent or received at each MCS.
MCS
Data rates in Mbps
Channel width / Guard interval
20 MHz/ 800 ns 20 MHz/ 400 ns 40 MHz/ 800 ns 40 MHz/ 400 ns
0 6.50 7.20 13.50 15.00
1 13.00 14.4 47.00 30.00
2 19.50 21.70 40.50 45.00
3 26.00 28.90 54.00 60.00
4 39.00 43.30 81.00 90.00
5 52.00 57.80 108.00 120.00
6 58.50 65.00 121.50 135.00
7 65.00 72.20 135.00 150.00
8 13.00 14.40 27.00 30.00
To Next Page
