HP ProLiant DL180 Gen9 - Front Panel LED Power Fault Codes

Component identification 10

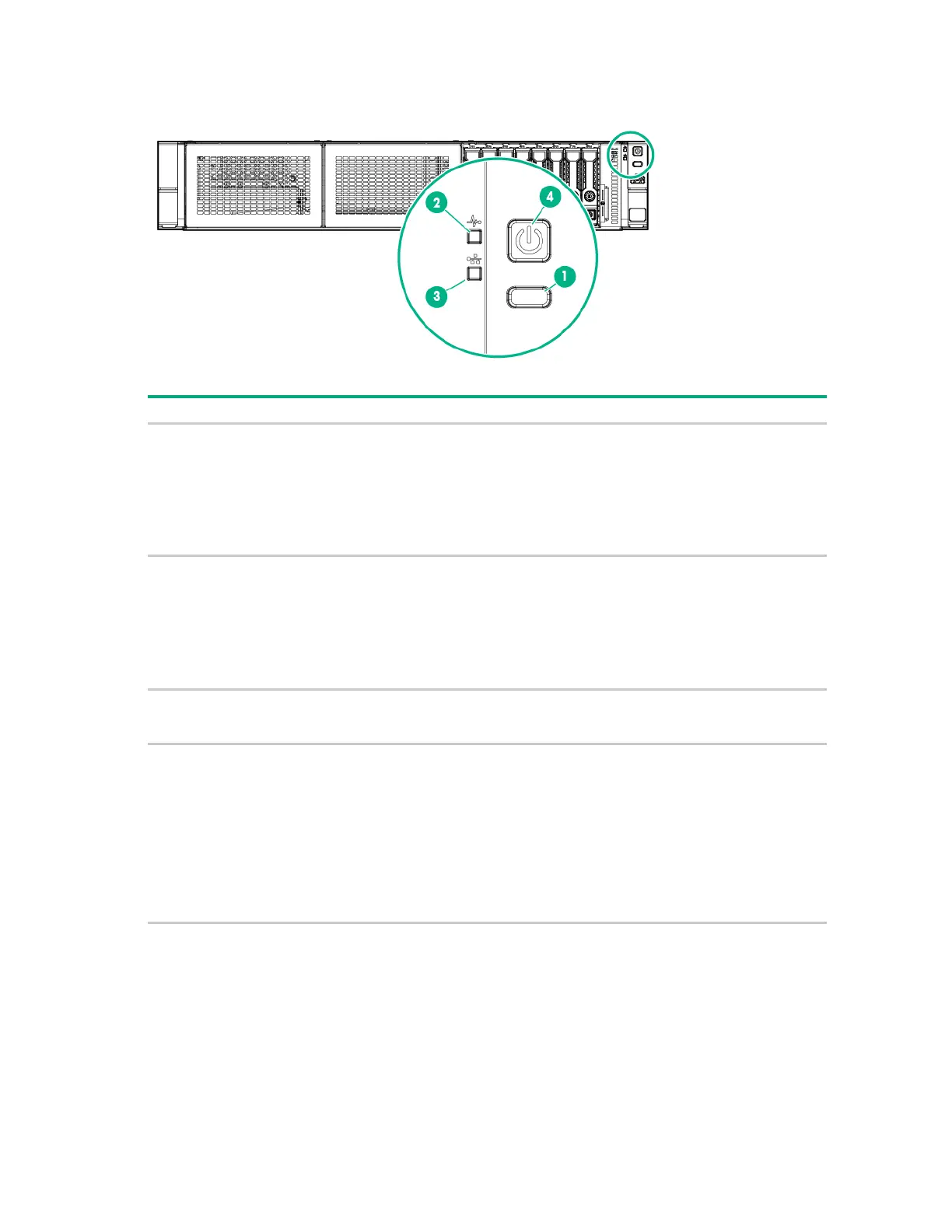

• Front panel LEDs and buttons in an SFF chassis with quick-release latch rack ears
Item
Description
Status
1
UID button/LED
Solid blue = Activated
Flashing blue:
•
1 flash per second = Remote management or firmware upgrade in
progress
•
4 flashes per second = iLO manual reboot sequence initiated
•
8 flashes per second = iLO manual reboot sequence in progress
Off = Deactivated
2
Health LED
Solid green = Normal
Flashing green (1 flash per second) = iLO is rebooting
Flashing amber = System degraded
Flashing red (1 flash per second) = System critical
If the health LED indicates a degraded or critical state, review the system
IML ("Integrated Management Log" on page 124) or use iLO ("HPE iLO" on
page 122) to review the system health status.
3
NIC status LED
Solid green = Link to network
Flashing green (1 flash per second) = Network active
Off = No network activity
4
Power On/Standby
button and system
power LED
Solid green = System on
Flashing green (1 flash per second) = Performing power on sequence
Solid amber = System in standby
Off = No power present
If the system power LED is off, verify the following conditions:
•
The facility power is present.
•
The power supply is installed and is working correctly.
•
The power cord is attached and is connected to a power source.
•
The front I/O cable is connected.
When all four LEDs described in this table flash simultaneously, a power fault has occurred. For more
information, see "Front panel LED power fault codes (on page 10)."
Front panel LED power fault codes
The following table provides a list of power fault codes, and the subsystems that are affected. Not all
power faults are used by all servers.
