HP ProLiant DL180 Gen9 - Rear Panel Components

Component identification 11
Subsystem
Front panel LED
behavior
System board
1 flash
Processor
2 flashes
Memory
3 flashes
Riser board PCIe slots
4 flashes
FlexibleLOM
5 flashes
Removable HPE Flexible Smart Array
controller/Smart SAS HBA controller
6 flashes
System board PCIe slots
7 flashes
Power backplane or storage backplane
8 flashes
Power supply
9 flashes
For more information, see "Front panel LEDs and buttons (on page 9)."

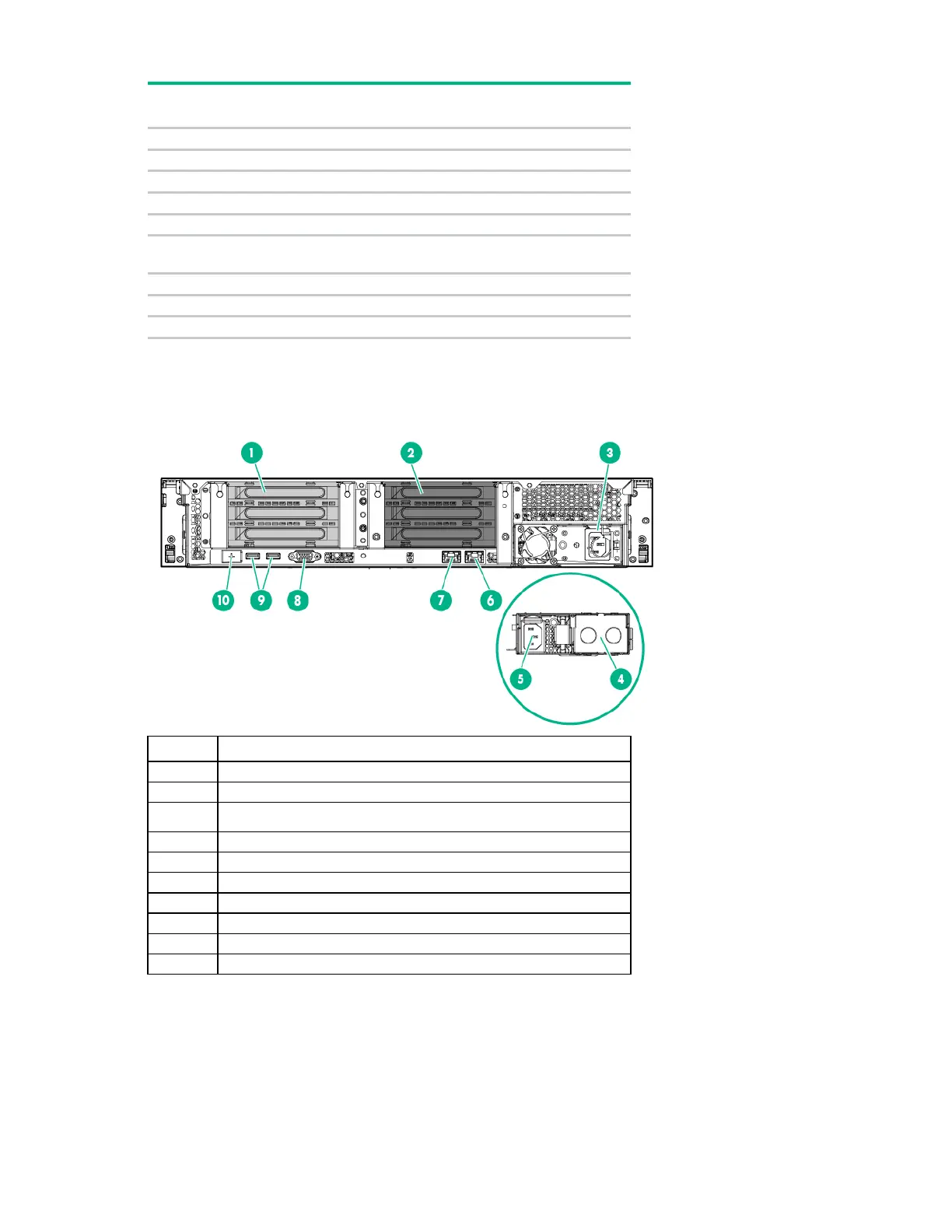

Rear panel components
Item Description
1
PCIe3 riser slots 1-3 (primary, associated with processor 1)
2
PCIe3 riser slots 4-6 (secondary, associated with processor 2)
3
Non-hot plug power supply
4
Hot-plug power supply bay 2
5
Hot-plug power supply 1
6
NIC connector 2
7
NIC 1/shared iLO connector
8
Video connector
9
USB 3.0 connectors
10
Dedicated iLO management connector (optional)
