Hardware options installation 66
11.

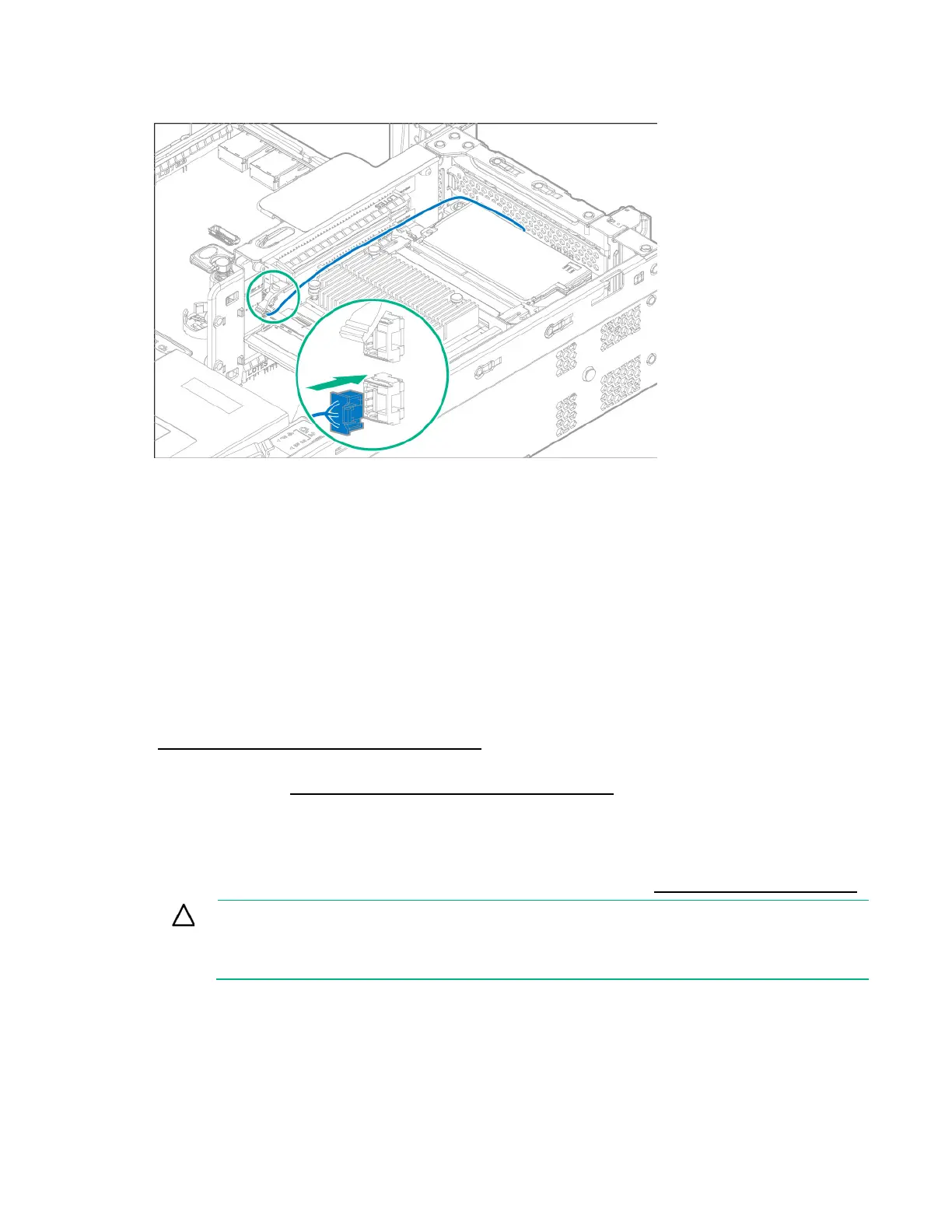

If you installed a cache module on the storage controller, connect the cache module backup power
cable to the riser board.
12. Connect the other end of the storage controller cables to the drive backplane. For internal drive
cabling information, see "Storage cabling (on page 109)."
13. If you are planning to install the Smart Storage Battery Pack, install it now ("Installing a Smart
Storage Battery" on page 66).
14. Install the access panel (on page 25).
15. Do one of the following:
o Slide the server into the rack.
o Install the server into the rack ("Installing the server into the rack" on page 35).
16. Power up the server (on page 20).
17. If you are planning to install new drives, install them now ("Drive options" on page 41).
For more information about the integrated storage controller and its features, select the relevant user
documentation on the Hewlett Packard Enterprise website
(http://www.hpe.com/info/smartstorage/docs).
To configure arrays, see the HPE Smart Storage Administrator User Guide on the Hewlett Packard
Enterprise website (http://www.hpe.com/info/smartstorage/docs).
Installing a Smart Storage Battery
For more information about product features, specifications, options, configurations, and compatibility,
see the product QuickSpecs on the Hewlett Packard Enterprise website (http://www.hpe.com/info/qs).
CAUTION: In systems that use external data storage, be sure that the server is the first unit
to be powered down and the last to be powered back up. Taking this precaution ensures that
the system does not erroneously mark the external drives as failed when the server is powered
up.
To install the component:
1. Power down the server (on page 20).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
