Hardware options installation 65
a.

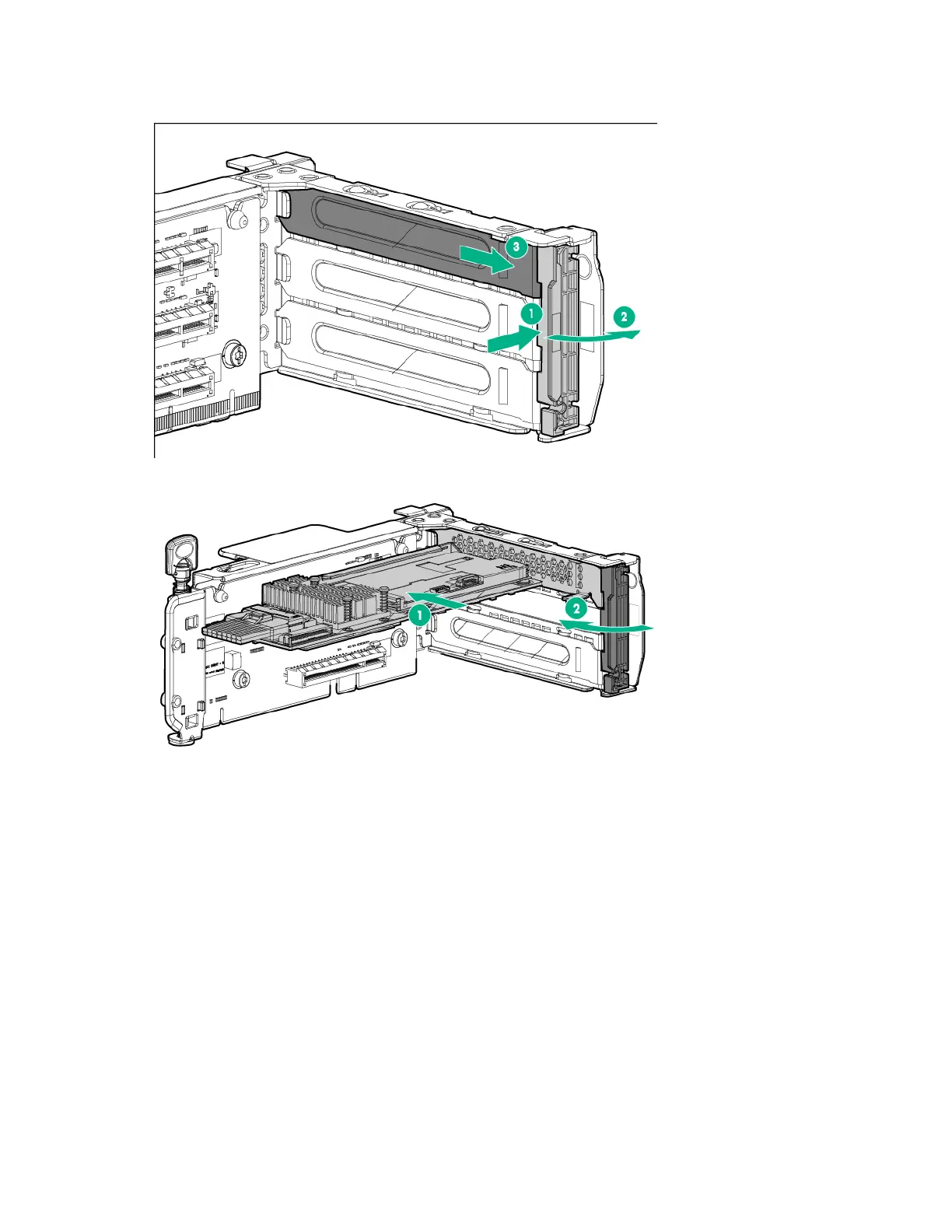

Identify the expansion slot compatible with the new option, and then remove the cover opposite
that slot.
b. Install the storage controller. Verify that the board is firmly seated in the slot.
9. Connect all necessary internal cables to the storage controller. For internal drive cabling information,
see "Storage cabling (on page 109)."
10. Install the PCI riser cage ("Install the PCI riser cages" on page 27).
