HP ProLiant DL180 Gen9 - Rear Panel Leds; Pcie Riser Board Slot Definitions

Component identification 12

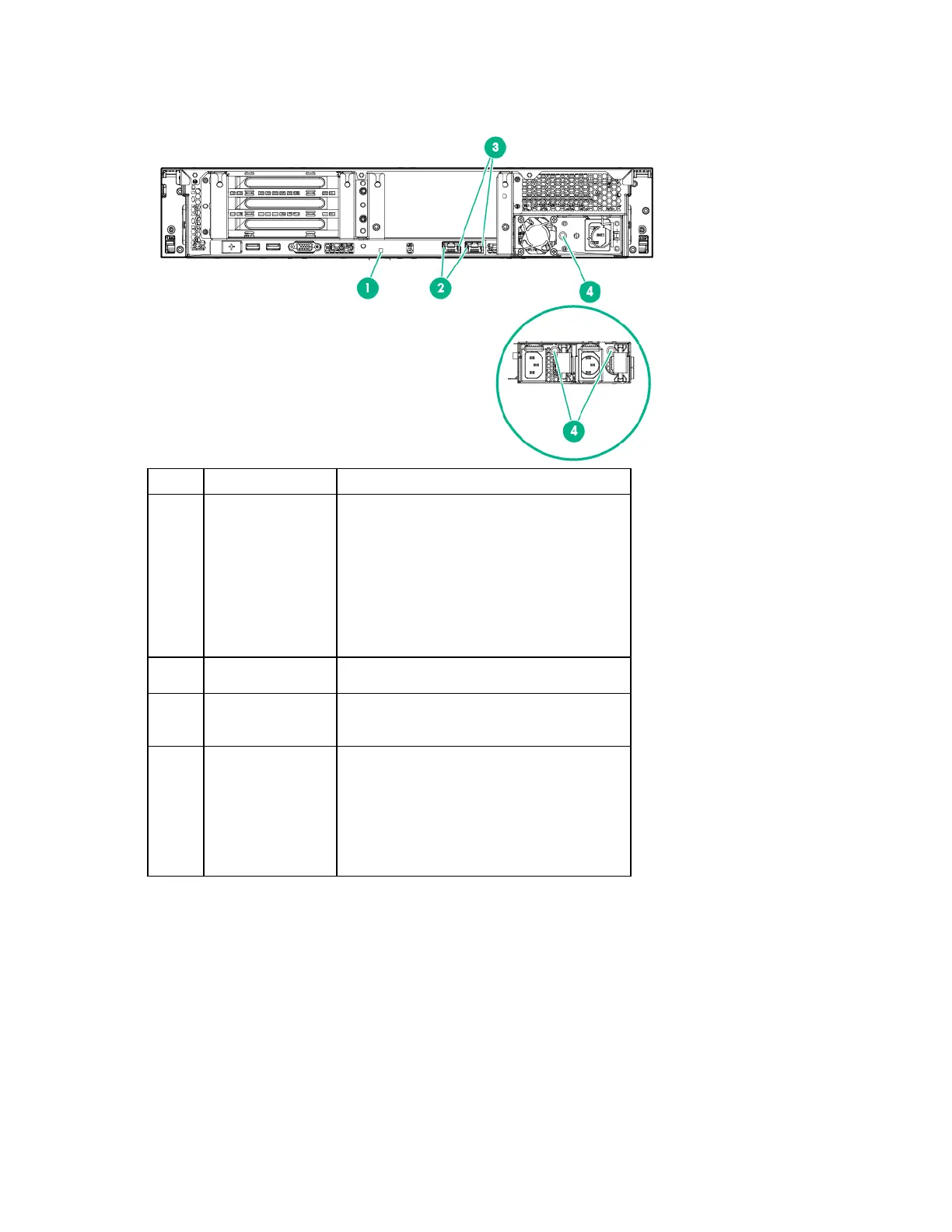

Rear panel LEDs
Item Description Status
1
UID LED
Solid blue = Activated
Flashing blue:
•
1 flash per second = Remote management
or firmware upgrade in progress
•
4 flashes per second = iLO manual reboot
sequence initiated
•
8 flashes per second = iLO manual reboot
sequence in progress
Off = Deactivated
2
NIC link LED
Green = Network link
Off = No network link
3
NIC activity LED
Solid green = Link to network
Flashing green = Network active
Off = No network activity
4
Power supply LED
Solid green = Normal
Off = One or more of the following conditions
exists:
•
Power is unavailable
•
Power supply failed
•
Power supply is in standby mode
•
Power supply error
PCIe riser board slot definitions
The server ships with a primary PCI riser cage installed and a secondary PCI riser cage blank. A second
processor is required to support installation in the secondary PCIe riser location.
