Hardware options installation 104
15.
If you intend to enable power redundancy in the server, install a second power input module in power
supply bay 2:
a. Remove the power supply blank.
b. Install a hot-plug power input module in power supply bay 2.
16. Install the Smart Storage Battery holder.
17. If removed, install the secondary PCI riser cage ("Install the PCI riser cages" on page 27).
18. Install the access panel (on page 25).
19. Install the server into the rack ("Installing the server into the rack" on page 35).
20. Connect the power cords to the power supplies.
21. To prevent accidental power cord disconnection when sliding the server in and out of the rack,
secure the power cord in the strain relief strap attached to the power input module handle:
a. Unwrap the strain relief strap from the power input module handle.
CAUTION: Avoid tight bend radii to prevent damaging the internal wires of a power cord or a
server cable. Never bend power cords and server cables tight enough to cause a crease in the
sheathing.

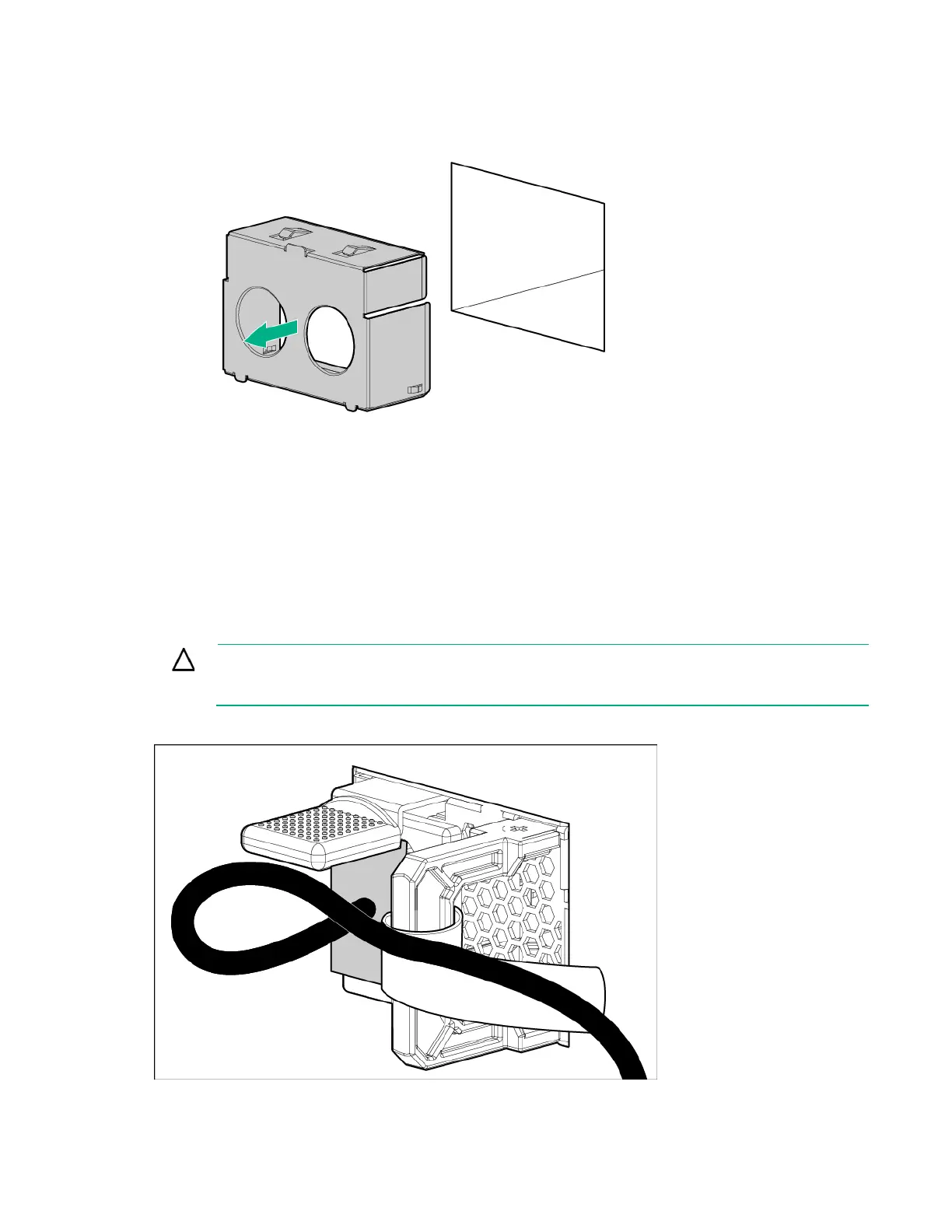

b. Bend the plug end of the power cord in the position shown in the following image.
