Operations 30
To install the component:

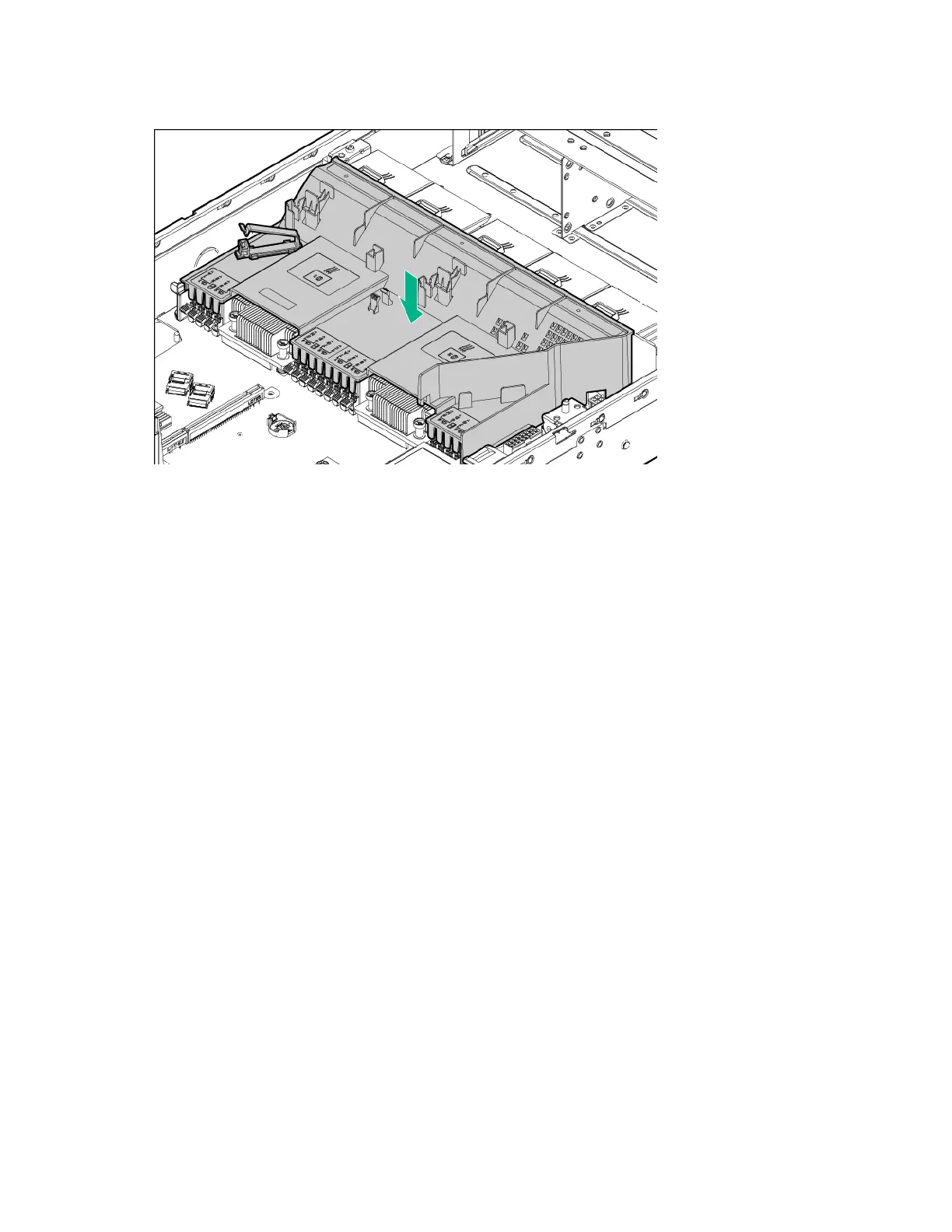

1. Install the air baffle.
2. If removed, install the PCI riser cage ("Install the PCI riser cages" on page 27).
3. Install the access panel (on page 25).
4. Do one of the following:
o Slide the server into the rack.
o Install the server into the rack ("Installing the server into the rack" on page 35).
5. Power up the server (on page 20).
