Hardware options installation 91
To install the component:
1. Power down the server (on page 20).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Do one of the following:
o Extend the server from the rack (on page 20).
o Remove the server from the rack (on page 22).
4. Remove the access panel (on page 24).
5. Remove the PCI riser cage ("Remove the PCI riser cages" on page 26).

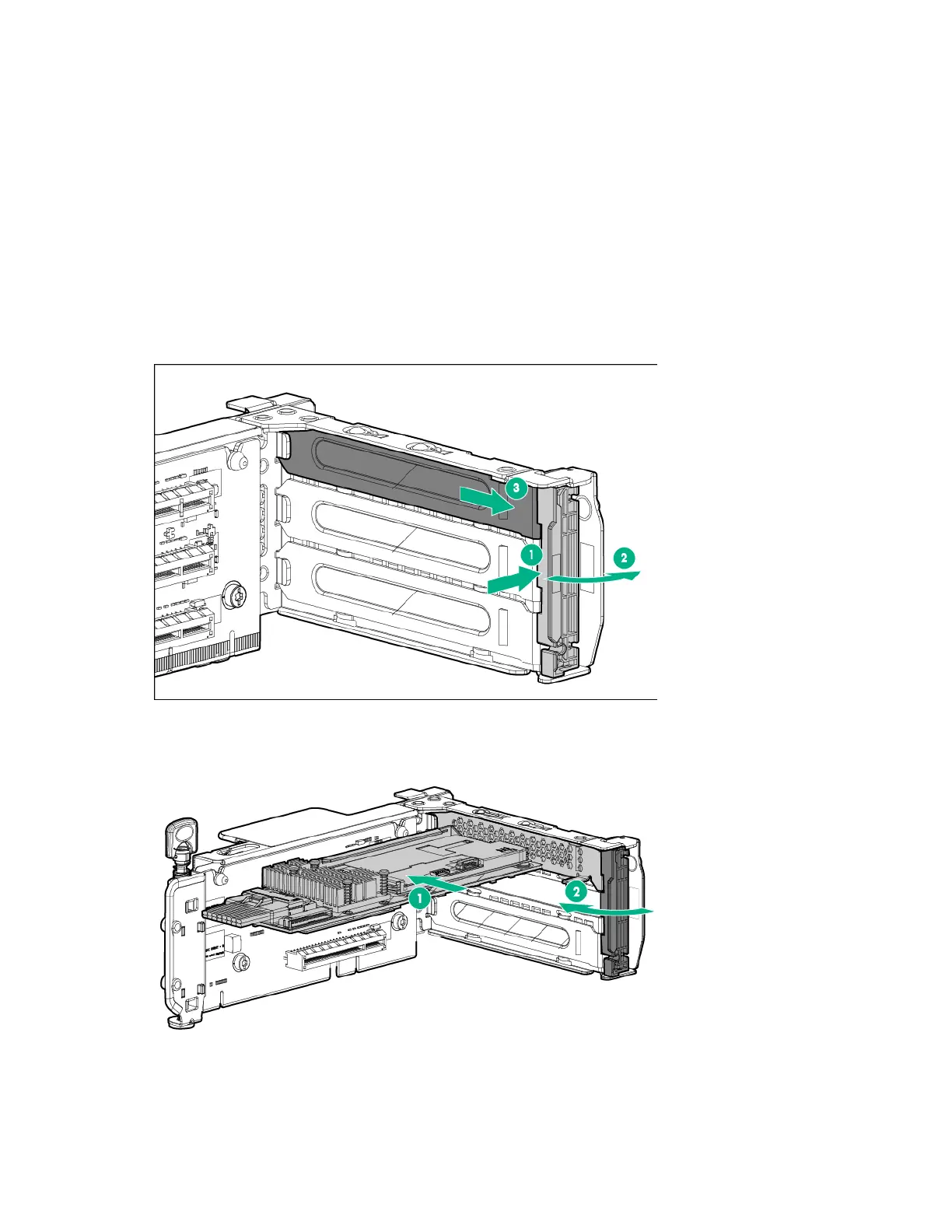

6. Identify the expansion slot compatible with the new option, and then remove the cover opposite that
slot.
7. Verify that any switches or jumpers on the expansion board are set properly. For more information,
see the documentation that ships with the option.
8. Install the expansion board. Verify that the board is firmly seated in the slot.
9. Connect all necessary internal cabling to the expansion board. For more information on these
cabling requirements, see the documentation that ships with the option.
10. Install the PCI riser cage ("Install the PCI riser cages" on page 27).
