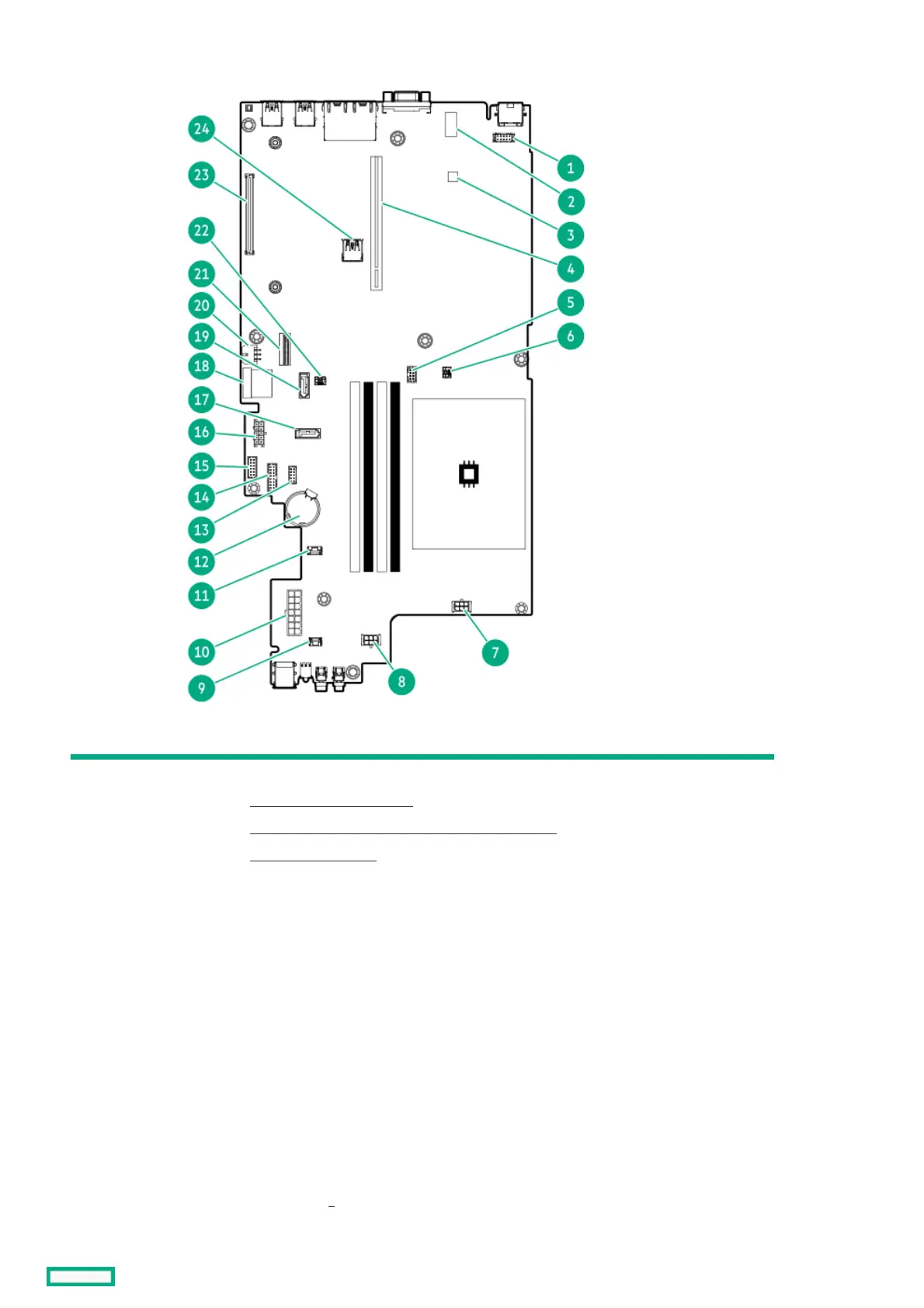

System board componentsSystem board components
ItemItem DescriptionDescription
1 Serial port connector
2 System maintenance switch
3 HPE Trusted Platform Module 2.0 (embedded TPM)
4 PCIe4 riser connector
5 M.2 SSD power-sideband connector
6 Storage controller backup power connector for slot 1
7 Fan connector 2
8 Fan connector 1
9 Chassis intrusion detection switch connector
10 Power supply connector
11 2 SFF drive sideband connector
12 System battery
13 Energy pack connector
14 Power supply sideband connector
15 Flexible Slot power supply sideband connector
16 Drive and optical drive power connector
17 SATA port 2
18 Mini-SAS port
