Setup and Installation of the Packaged Cluster

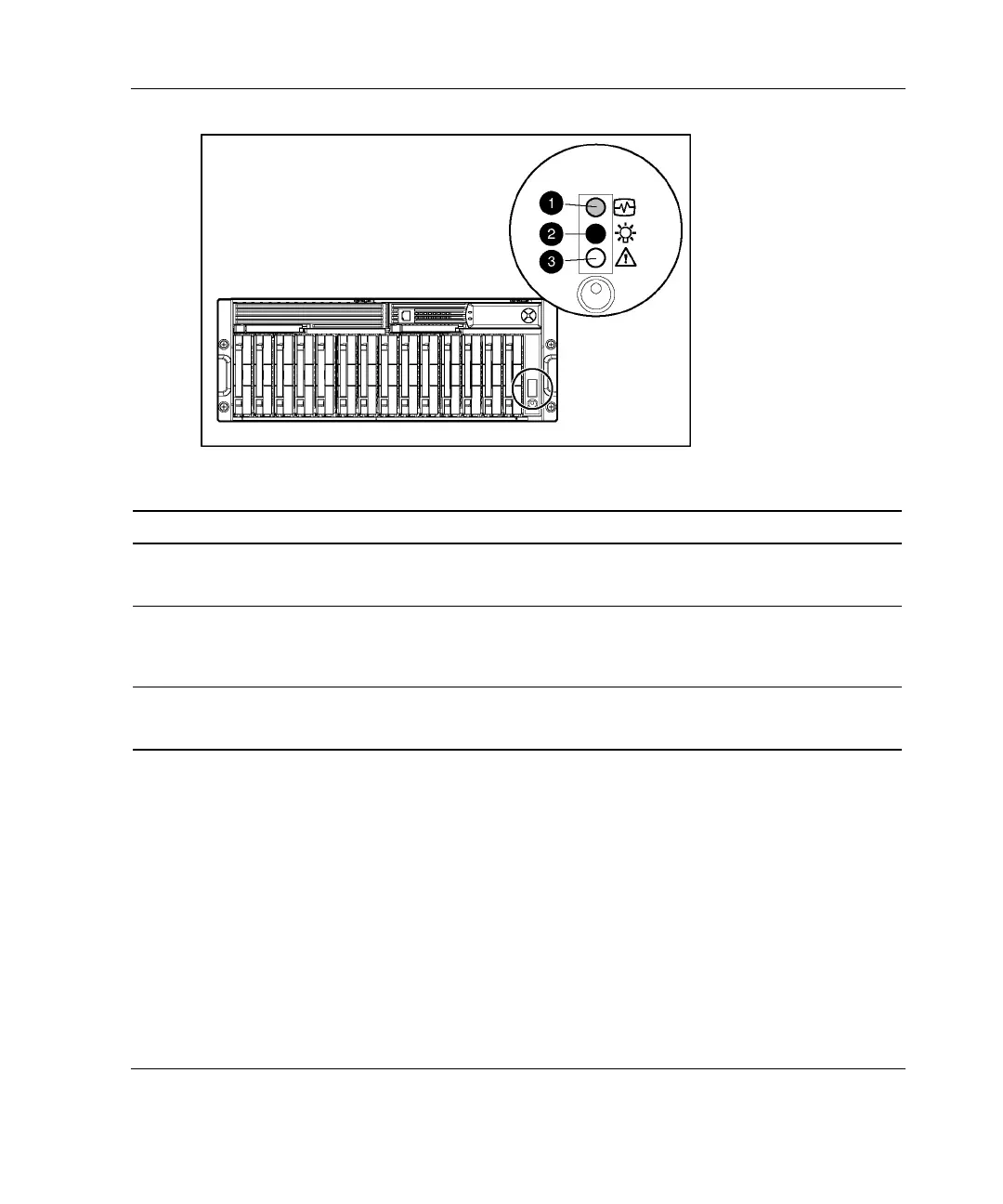

Table 2-6: Enclosure LEDs
Item LED Description Status
1 Shared Storage
Module
Green flashing = Module is operating normally
Green/Off = Module is not operating normally
2 System power Green = System power is on
Off = System is in standby mode or power is removed from the
system
3 Fault Amber = Fault detected in a subsystem
Off = No faults detected
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide 2-9
