Setup and Installation of the Packaged Cluster

Cabling the System in the Configuration Fixture

NOTE: The server fixture should be placed on top of the storage fixture for ease in cabling the

packaged cluster.

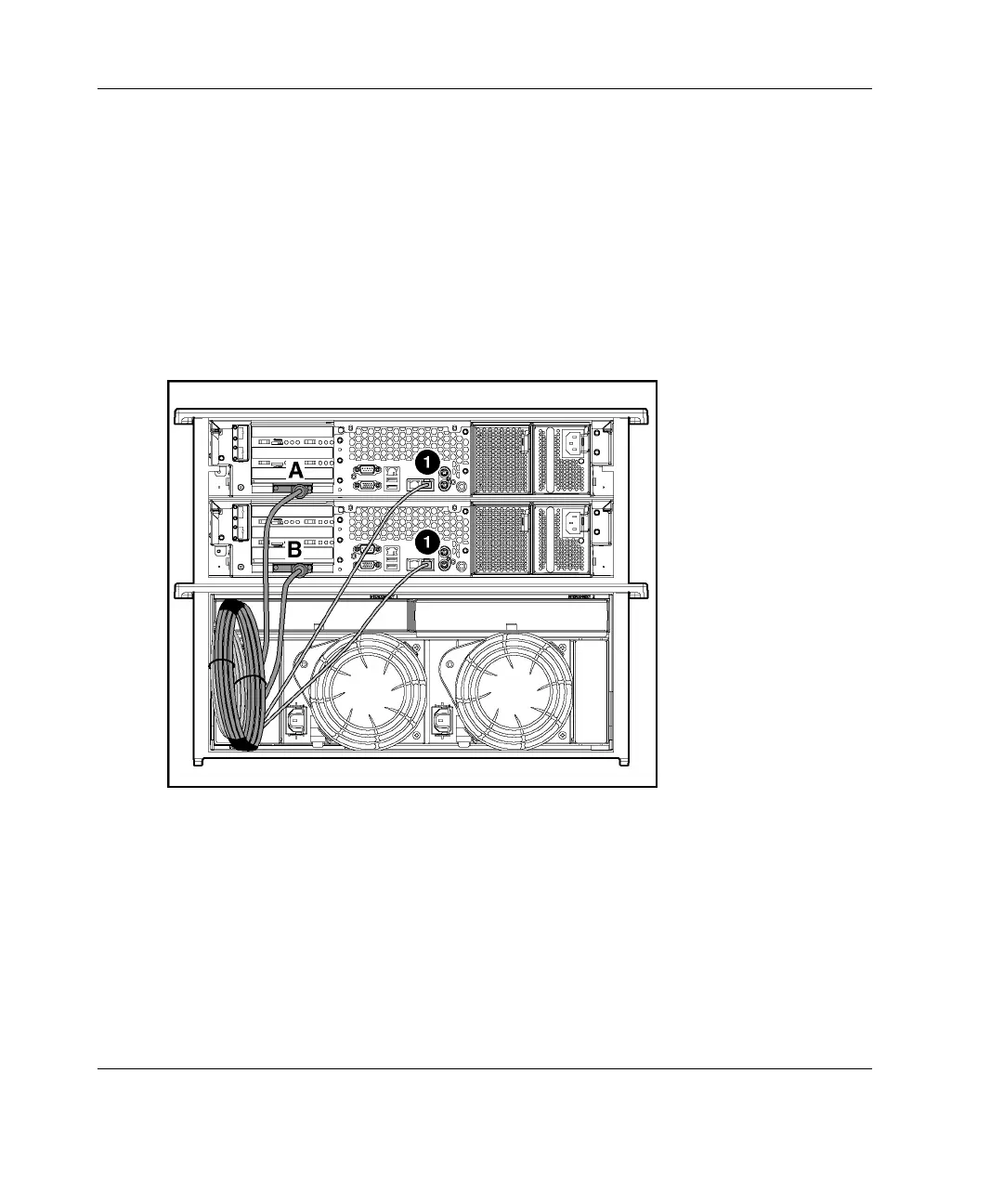

1. Connect the VHDCI SCSI cables labeled A and B from the storage system to the

servers.

NOTE: Save the protective covers on the cable connectors for use when the packaged

cluster is repacked.

2. If you are configuring a Microsoft or Linux operating system, connect the

Ethernet crossover cable between the servers. Use the same RJ-45 connector (1),

NIC 1, on each server.

2-14 HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide

HP CONFIDENTIAL Codename: Sopwith Part Number: 252621-002 Last Saved On: 11/8/02 1:59 PM

Questions and Answers:

Need help?

Do you have a question about the HP ProLiant DL380 G3 with MSA1000 and is the answer not in the manual?

HP ProLiant DL380 G3 with MSA1000 Specifications

General

Rack Height	2U
Hard Drive Interface	Ultra320 SCSI
Remote Management	Integrated Lights-Out (iLO)
Memory	PC2100 DDR SDRAM
Storage Controller	Smart Array 5i Plus
Network	Dual embedded NC7781 Gigabit NIC
Expansion Slots	6 PCI-X (64-bit/100 MHz)
Form Factor	Rackmount
MSA1000 Storage	External storage enclosure connected via SCSI
RAID Levels	0, 1, 5
Power Supply	Redundant Power Supply Optional
Drive Bays	6 hot-plug SCSI bays
Operating System Support	Windows Server, Linux
Processor	Intel Xeon (up to 3.6 GHz)
